Rear Disc Brake Caliper & Dust Cover

19 part groups · 2 illustrations

Illustrations

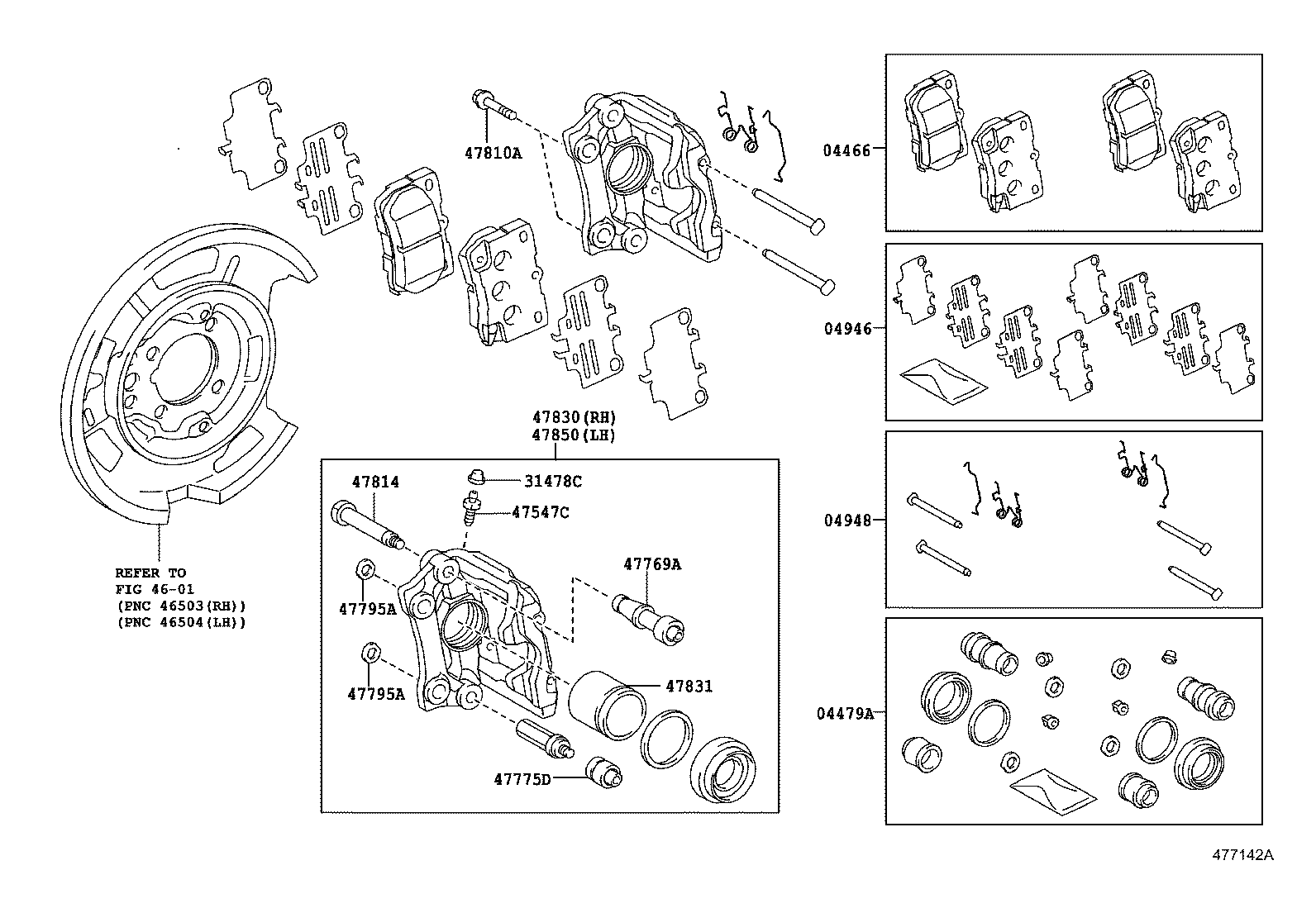

Figure 474498F 474498F 2005-10 → 2009-11 Figure 477142A 477142A 2009-11 → —

Part groups

PNCDescription
04466 Pad Kit, Disc Brake, Rear
04479A Cylinder Kit, Disc Brake, Rear
04946 Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
04948 Fitting Kit, Disc Brake, Rear
31478C Cap, Bleeder Plug(FOR REAR DISC BRAKE)
47547C Plug, Bleeder(FOR REAR DISC BRAKE)
47730B Cylinder Assy, Rear Disc Brake, RH
47731B Piston, Rear Disc Brake
47750A Cylinder Assy, Disc Brake, Rear LH
47769A Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
47775D Boot, Bush Dust(FOR REAR DISC BRAKE)
47795A Plate, Rear Disc Brake Caliper, NO.1
47810A Bolt, Hexagon(FOR REAR CALIPER)
47814 Pin, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
47815 Pin, Rear Cylinder Slide, NO.2(FOR REAR DISC BRAKE)
47830 Cylinder Assy, Disc Brake, Rear RH
47831 Piston, Rear Disc Brake
47843 Clip, Rear Disc Brake Pin Hold
47850 Cylinder Assy, Disc Brake, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
