Toyota Reiz

2005-10 → 2010-09 · chassis GRX12# · catalogue 311290 · General

Supported model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

21 part groups · 2 illustrations

Illustrations

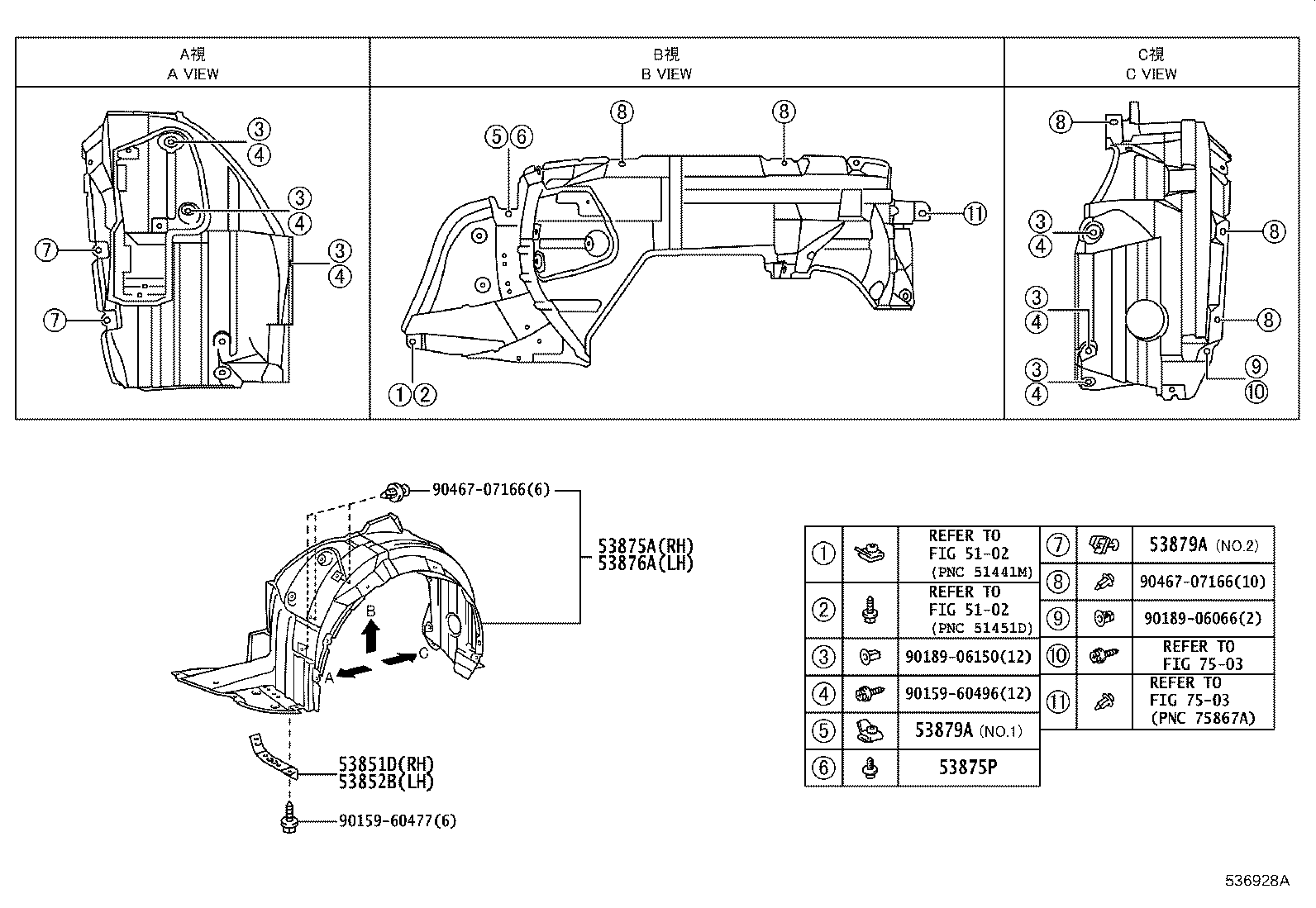

Figure 536927 536927 2005-10 → — Figure 536928A 536928A 2005-10 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53378C Seal, Hood Air Intake Duct
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384B Cushion, Hood, Center
53388D Seal, Hood TO Front Fender, RH
53389B Seal, Hood TO Front Fender, LH
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53863 Seal, Front Fender TO Door Hinge, Lower RH
53864 Seal, Front Fender TO Door Hinge, Lower LH
53875A Liner, Front Fender, RH
53875P Screw, NO.1
53876A Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
