Toyota Reiz

2005-10 → 2010-09 · chassis GRX12# · catalogue 311290 · General

Supported model Data version 2011-01

Instrument Panel & Glove Compartment

35 part groups · 4 illustrations

PNC	Description

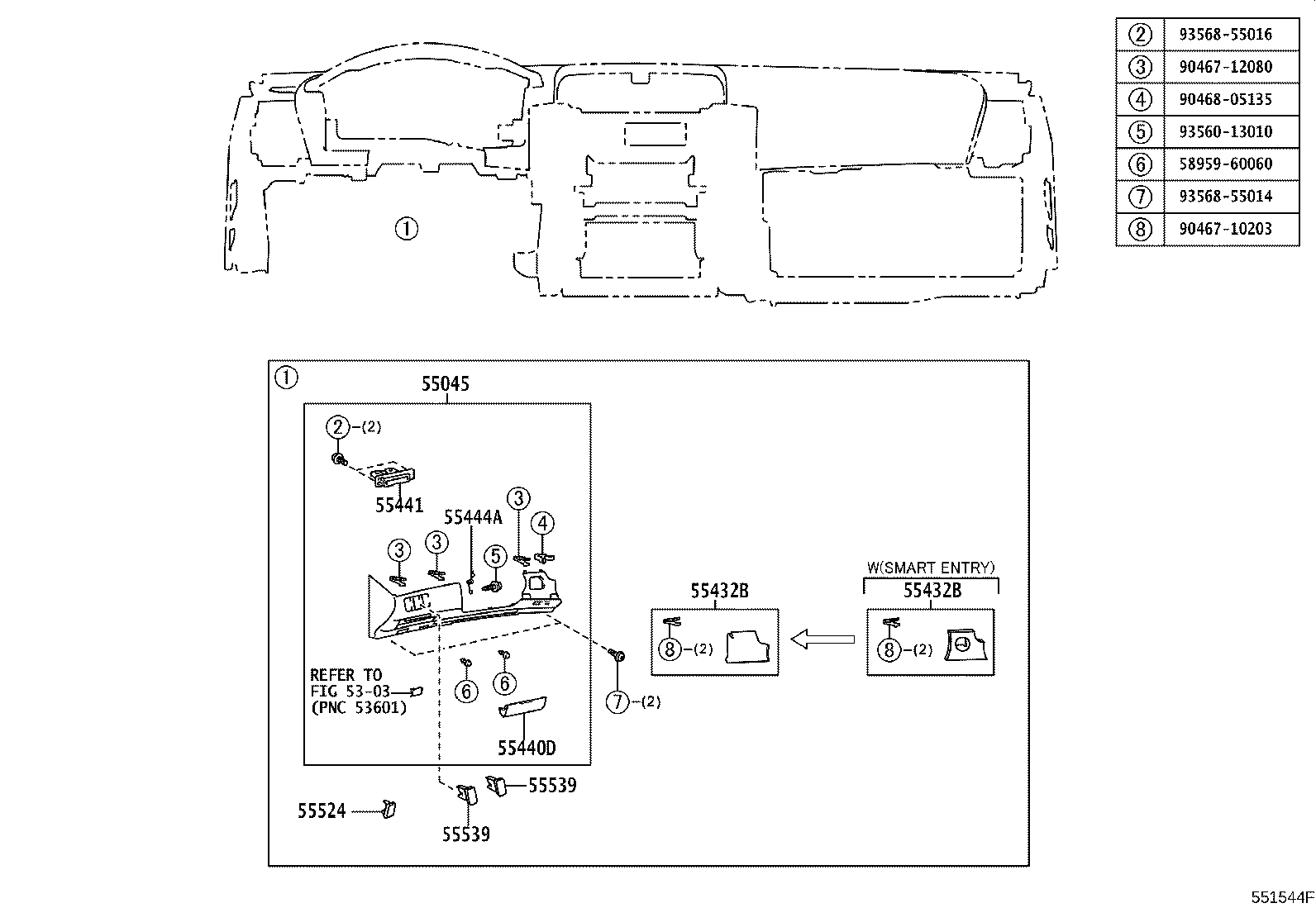

55045	Panel Sub-assy, Instrument Panel Finish, Lower
55054	Stopper Sub-assy, Glove Compartment Door
55317C	Patch, Instrument Side, Lower RH
55318E	Patch, Instrument Side, Lower LH
55328A	Stay, Instrument Panel, NO.3
55330B	Reinforcement Assy, Instrument Panel
55374C	Bracket, Instrument Panel Lower Mounting, NO.1
55401E	Pad Sub-assy, Instrument Panel Safety
55403	Hood Sub-assy, Meter
55404C	Panel Sub-assy, Instrument Cluster Finish, NO.2

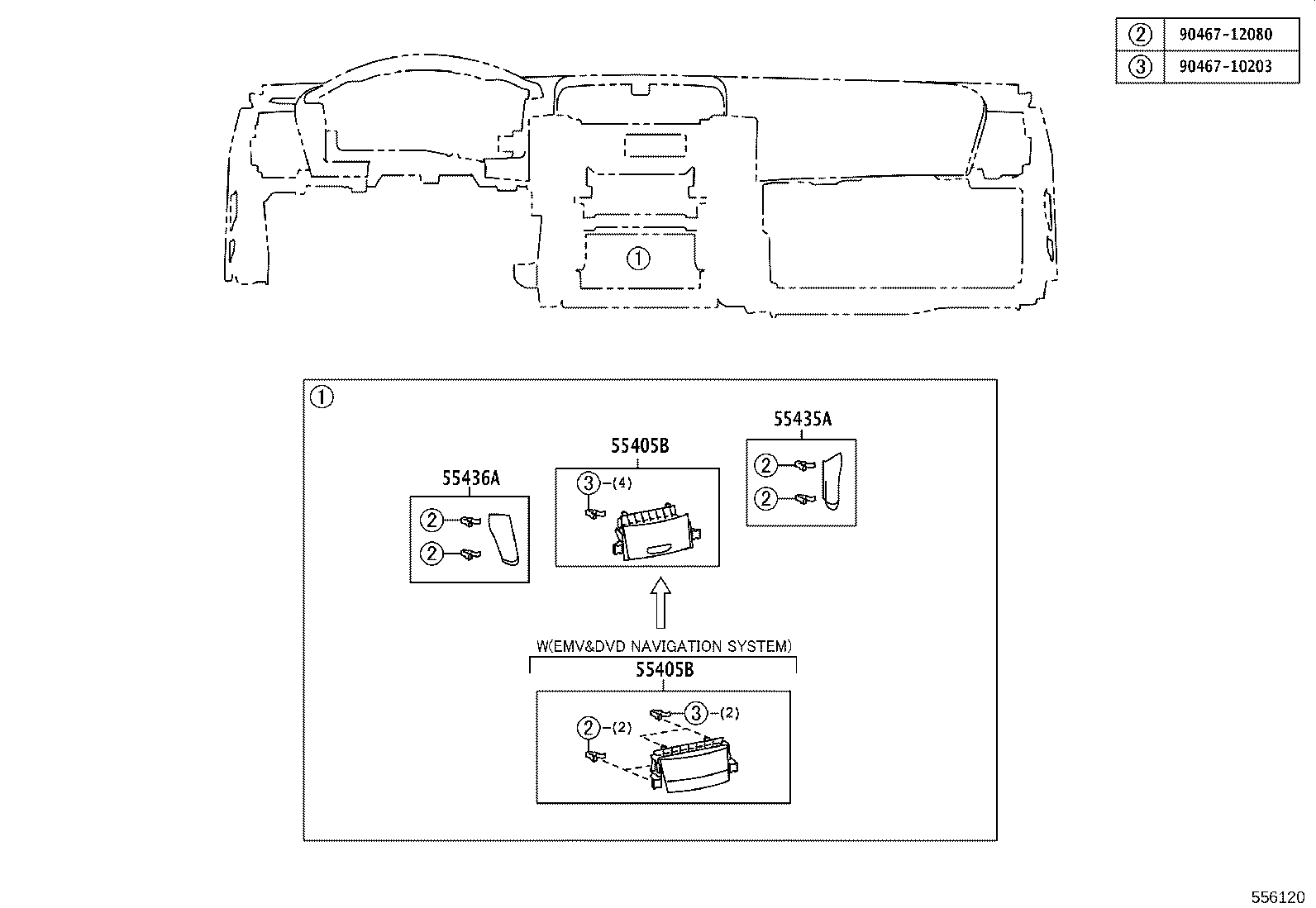

55405B	Panel Sub-assy, Instrument Cluster Finish, Center
55408F	Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F	Panel Sub-assy, Instrument Panel Speaker, NO.2
55416A	Retainer, Meter Hood, NO.1
55417A	Retainer, Meter Hood, NO.2
55432B	Panel, Instrument Panel Finish, Lower
55433B	Panel, Instrument Panel Finish, Lower NO.2
55435A	Panel, Instrument Panel Finish, End RH
55436A	Panel, Instrument Panel Finish, End LH
55440D	Box Assy, Instrument Panel
55441	Box, Instrument Panel
55444A	Spring, Instrument Panel Box
55501A	Door Sub-assy, Glove Compartment
55510A	Cushion(FOR GLOVE COMPARTMENT DOOR)
55524	Cover, Switch Bace Hole
55539	Cover, Spare Switch Hole

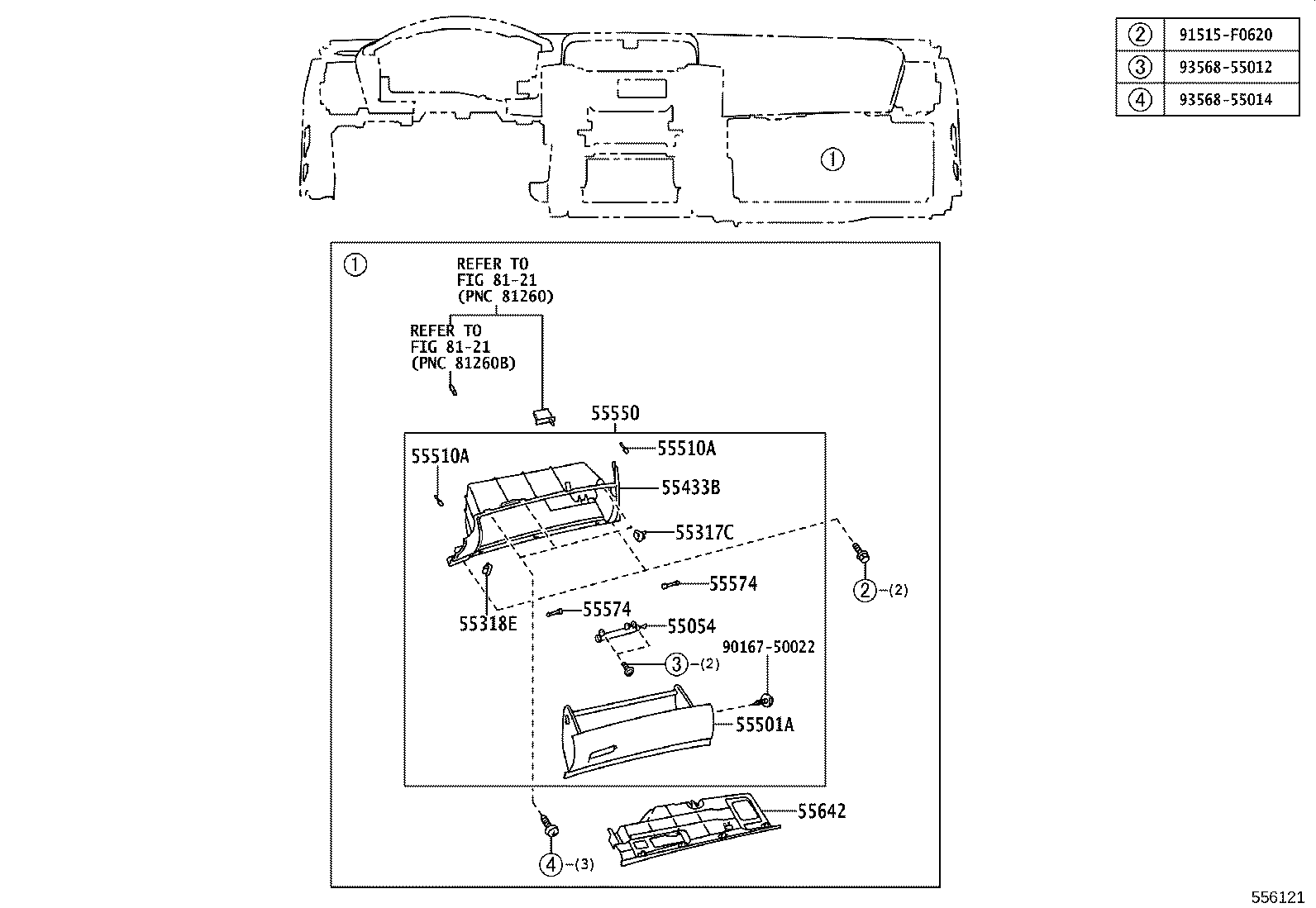

55550	Door Assy, Glove Compartment
55574	Shaft, Glove Compartment Door Hinge
55642	Cover, Instrument Panel Under, NO.2
55650	Register Assy, Instrument Panel, NO.1
55660	Register Assy, Instrument Panel, NO.2
55670	Register Assy, Instrument Panel, NO.3
73900	Airbag Assy, Instrument Panel, Lower NO.1
73960A	Airbag Assy, Instrument Panel Passenger W/O Door
82140	Wire Assy, Instrument Panel

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
