Toyota Reiz

2005-10 → 2010-09 · chassis GRX12# · catalogue 311290 · General

Supported model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

31 part groups · 2 illustrations

Illustrations

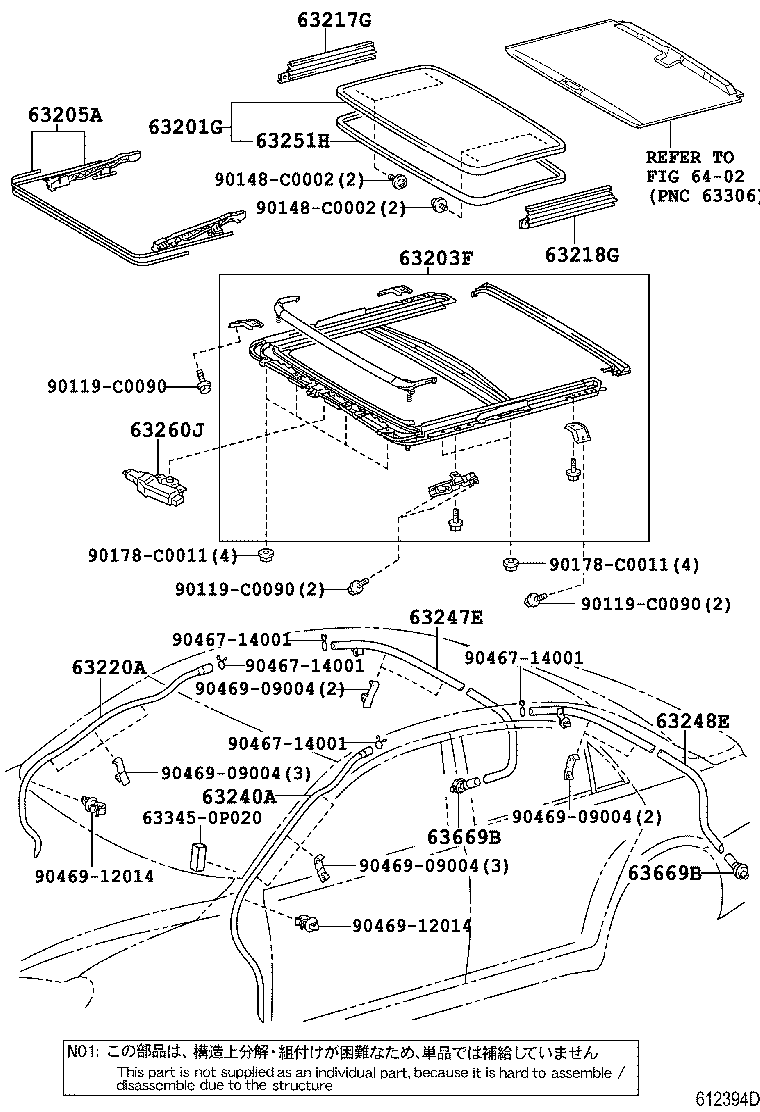

Figure 612393B 612393B 2005-10 → — Figure 612394D 612394D 2005-10 → —

Part groups

PNCDescription
61826B Plate, Noise Control, NO.3
63102A Panel Sub-assy, Windshield Header
63111 Panel, Roof
63118 Support, Roof Panel, RH
63119 Support, Roof Panel, LH
63119D Pad, Roof Panel, NO.1
63126A Damper, Windshield Header Panel
63132C Panel, Windshield Header, Inner
63133A Frame, Back Window, Upper
63141G Reinforcement, Roof Panel, NO.1
63142 Reinforcement, Roof Panel, NO.2
63143B Reinforcement, Roof Panel, NO.3
63144A Reinforcement, Roof Panel, NO.4
63146A Bracket, Roof Panel Reinforcement, NO.1
63201G Glass Sub-assy, Sliding Roof
63203F Housing Sub-assy, Sliding Roof
63205A Cable Sub-assy, Sliding Roof Drive
63217G Garnish, Sliding Roof Side, RH
63218G Garnish, Sliding Roof Side, LH
63220A Hose Assy, Sliding Roof Drain, RH
63240A Hose Assy, Sliding Roof Drain, LH
63247E Hose, Sliding Roof Drain, Rear RH
63248E Hose, Sliding Roof Drain, Rear LH
63251H Weatherstrip, Sliding Roof
63260J Gear Assy, Sliding Roof Drive
63669B Grommet, Sliding Roof Drain
64101 Panel Sub-assy, Upper Back
64811 Glass, Back Window
64813D Dam, Back Window Glass Adhesive
75573F Moulding, Back Window, Outside
75575E Moulding, Back Window, Outside Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
