Toyota Reiz
2005-10 → 2010-09 · chassis GRX12# · catalogue 311290 · General
Supported model
Data version 2011-01

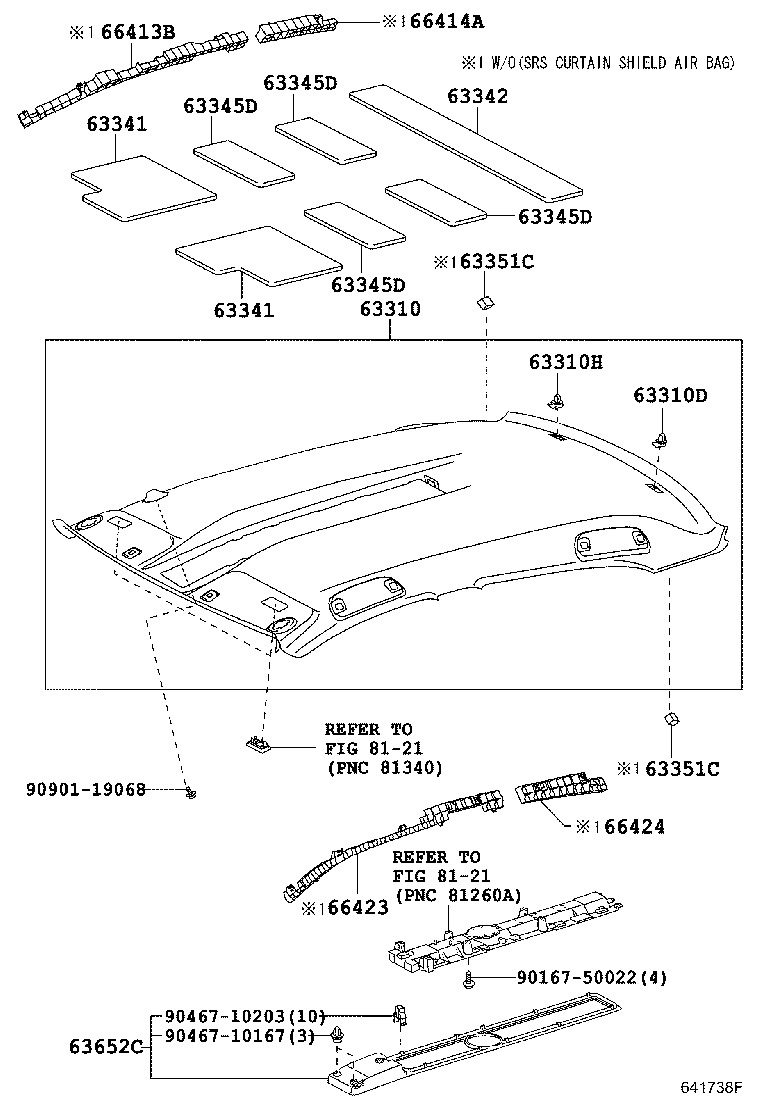

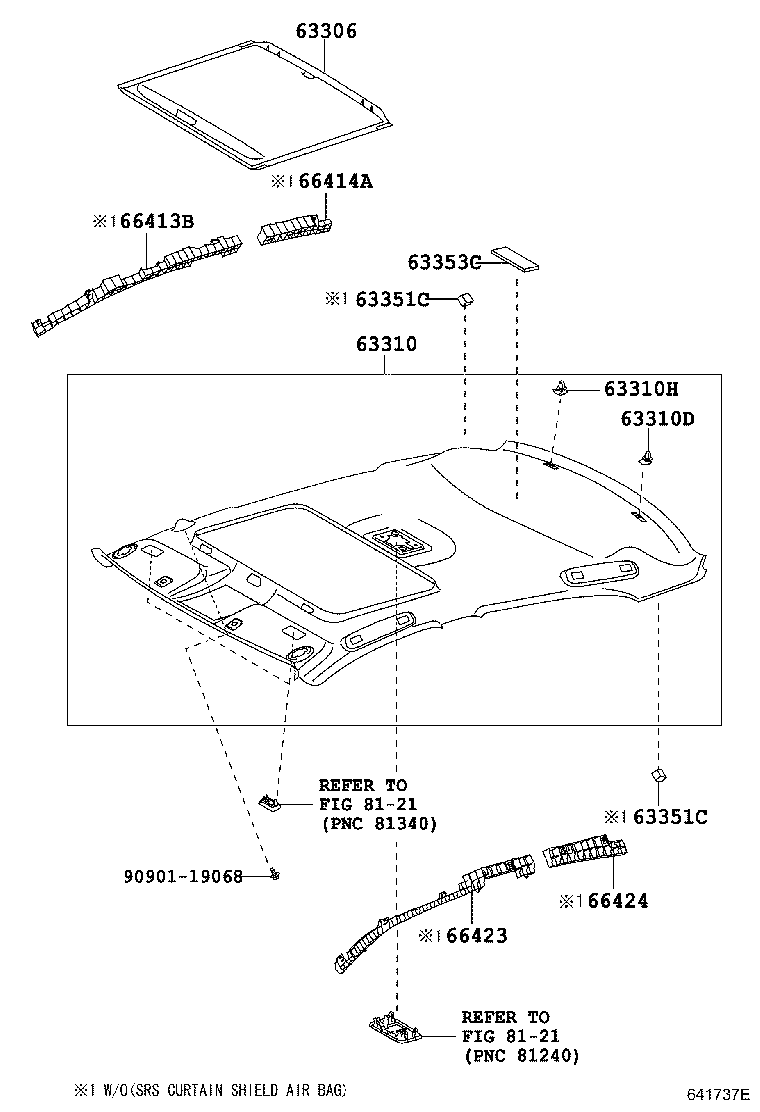

Roof Headlining & Silencer Pad
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63345D | Pad, Roof Silencer, Center |
| 63351C | Pad, Roof Headlining |
| 63353C | Pad, Roof Headlining, Center |
| 63652C | Cover, Roof Console Box |
| 66413B | Spacer, Side Rail, Front RH |
| 66414A | Spacer, Side Rail, Rear RH |
| 66423 | Spacer, Side Rail, Front LH |
| 66424 | Spacer, Side Rail, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
