Toyota Reiz

2005-10 → 2010-09 · chassis GRX12# · catalogue 311290 · General

Supported model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

18 part groups · 2 illustrations

Illustrations

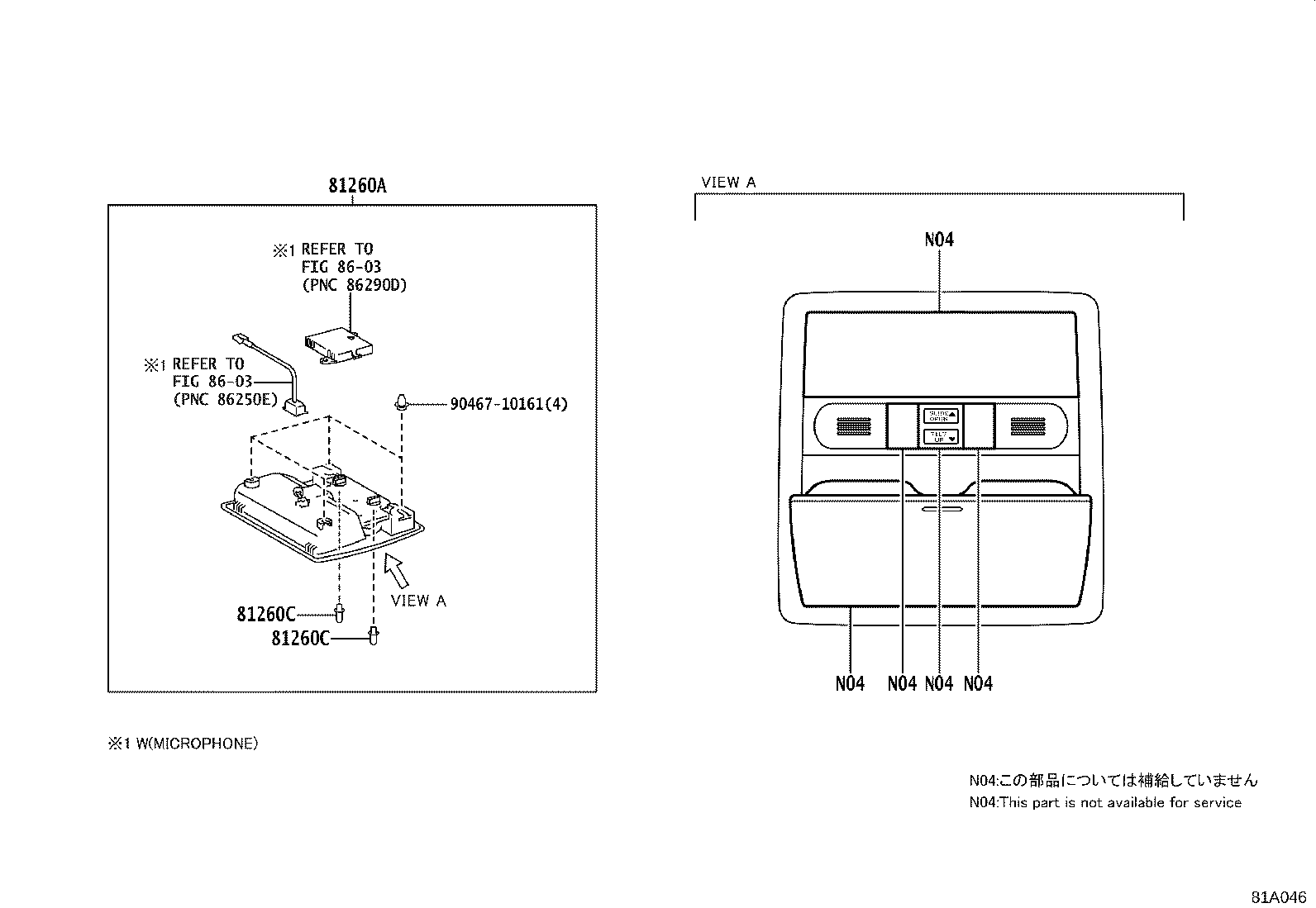

Figure 813437D 813437D 2005-10 → — Figure 81A046 81A046 2005-10 → —

Part groups

PNCDescription
81080H Lamp Assy, Interior Illumination, NO.1 RH
81080L Lamp Assy, Interior Illumination, NO.1 LH
81230 Lamp Assy, Courtesy
81230B Bulb(FOR COURTESY LAMP)
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
81260B Bulb(FOR GLOVE BOX)
81260C Bulb(FOR MAP LAMP)
81262 Lens, Map Lamp
81265C Lens, Map Lamp, NO.1
81266D Lens, Map Lamp, NO.2
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81366C Base, Room Lamp Switch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
