Toyota Reiz

2005-10 → 2010-09 · chassis GRX12# · catalogue 311290 · General

Supported model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

19 part groups · 3 illustrations

Illustrations

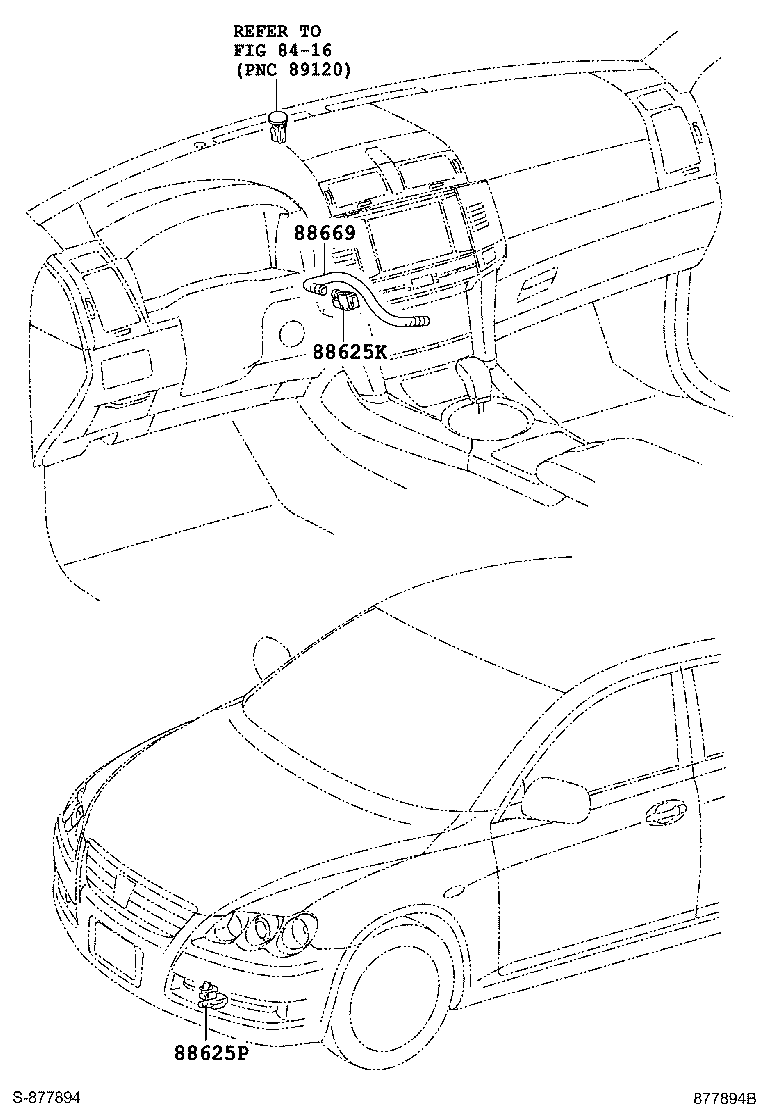

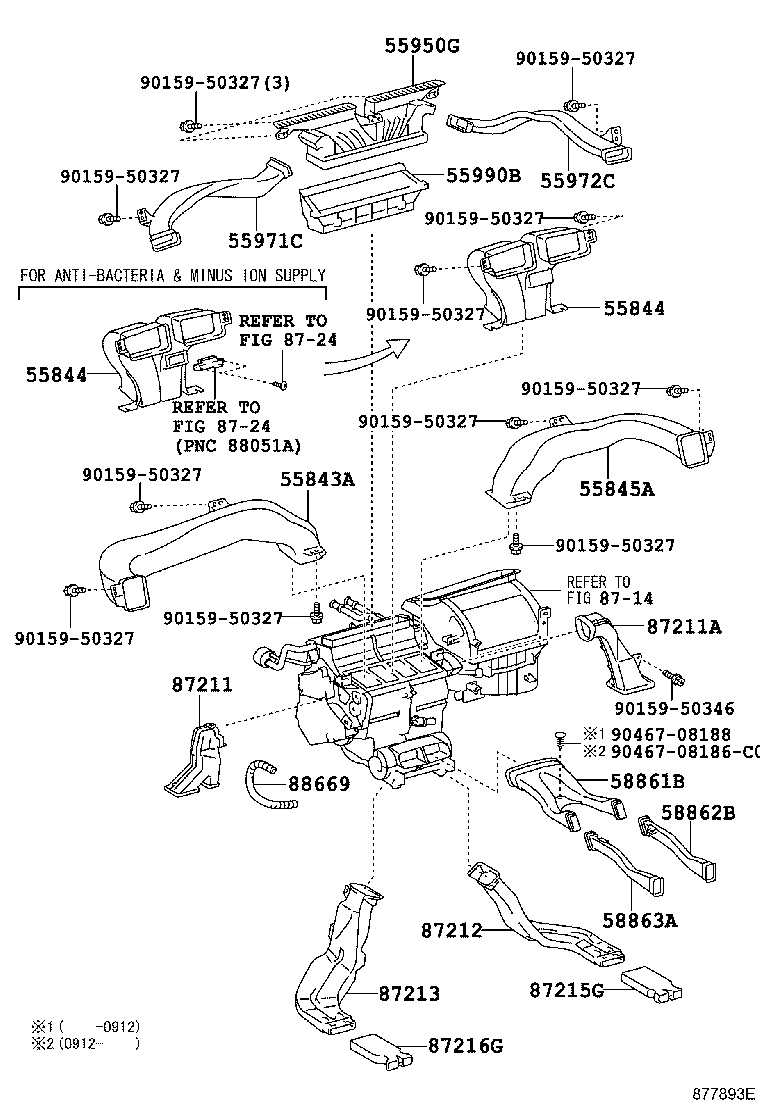

Figure 877892A 877892A 2005-10 → — Figure 877893E 877893E 2005-10 → — Figure 877894B 877894B 2005-10 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
55990B Nozzle Assy, Defroster, Lower
58861B Duct, Console Box, NO.1
58862B Duct, Console Box, NO.2
58863A Duct, Console Box, NO.3
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215G Guide, Air Duct, Rear RH
87216G Guide, Air Duct, Rear LH
88625K Thermistor, Cooler
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88669 Hose, Cooler Air
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
