Toyota Reiz

2010-09 → 2017-09 · chassis GRX13# · catalogue 3112A0 · General

Supported model Data version 2018-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

22 part groups · 6 illustrations

Illustrations

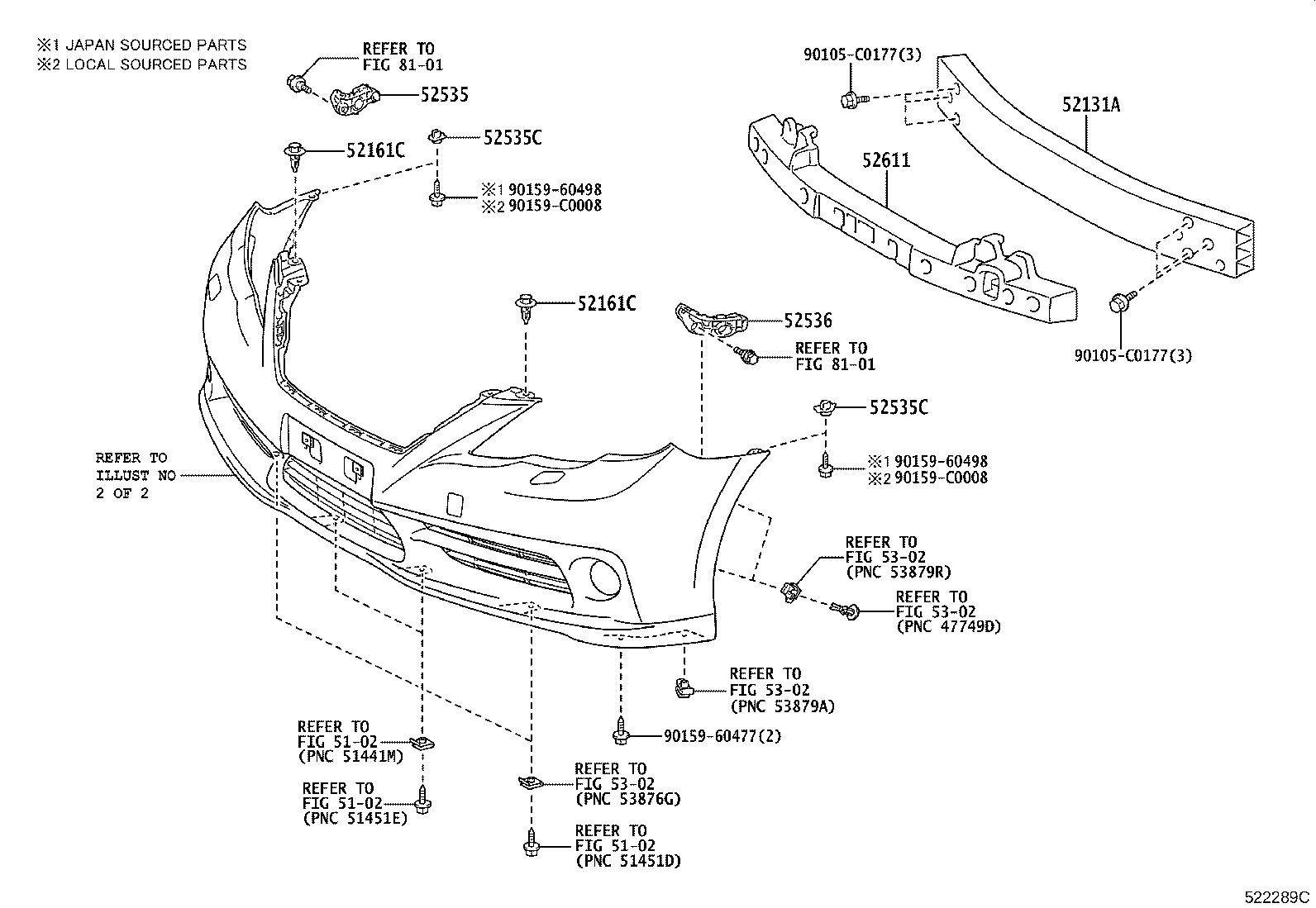

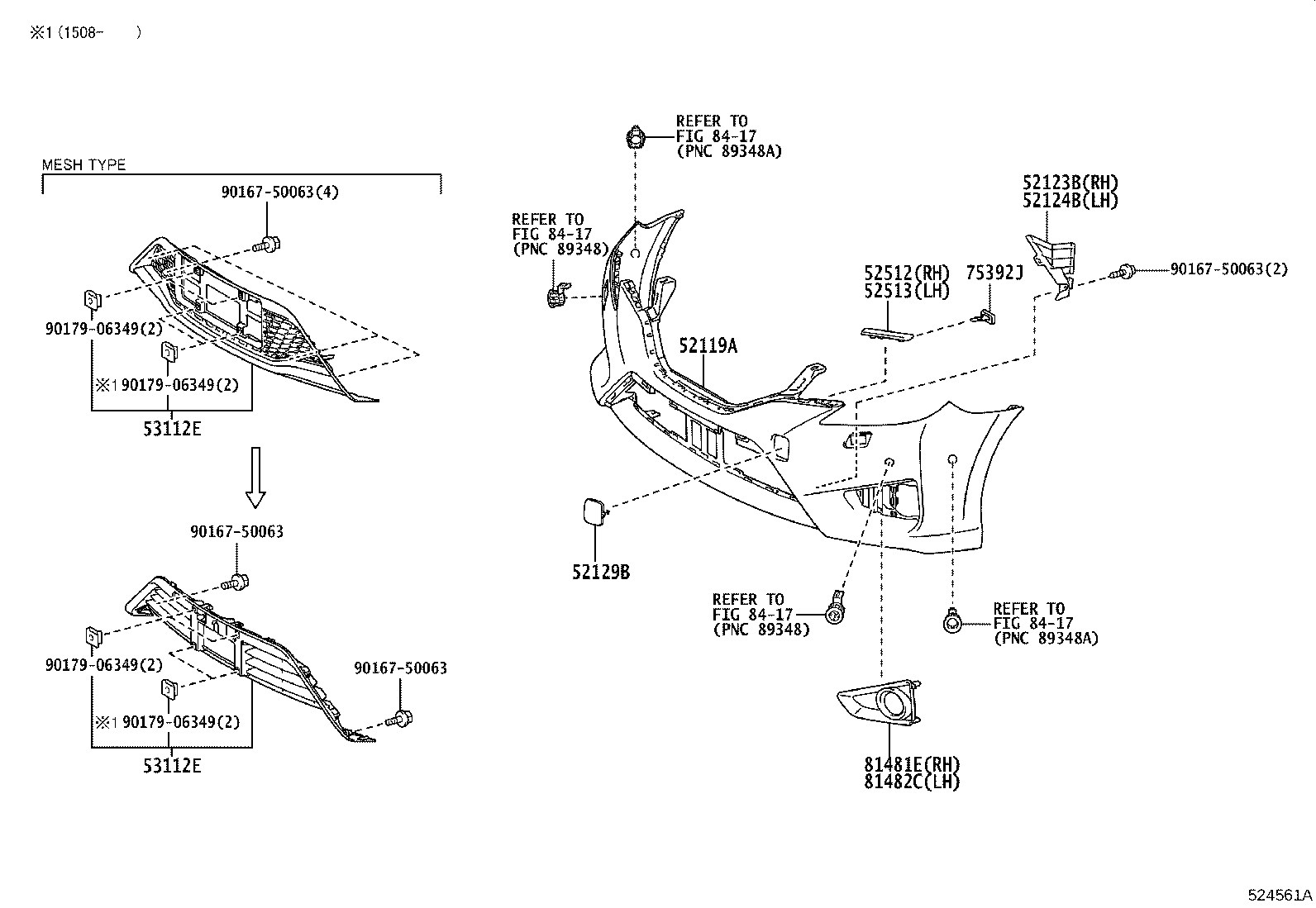

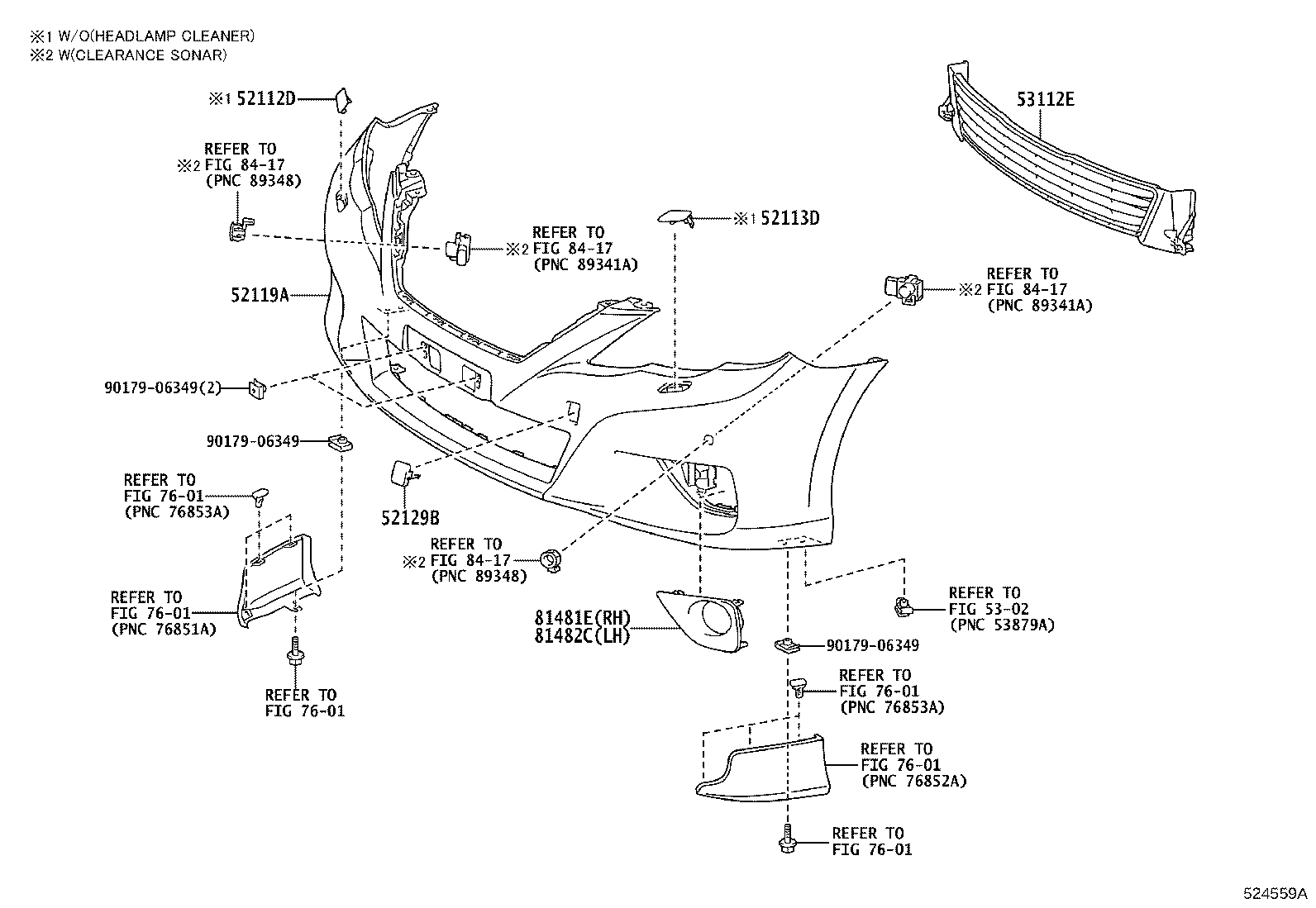

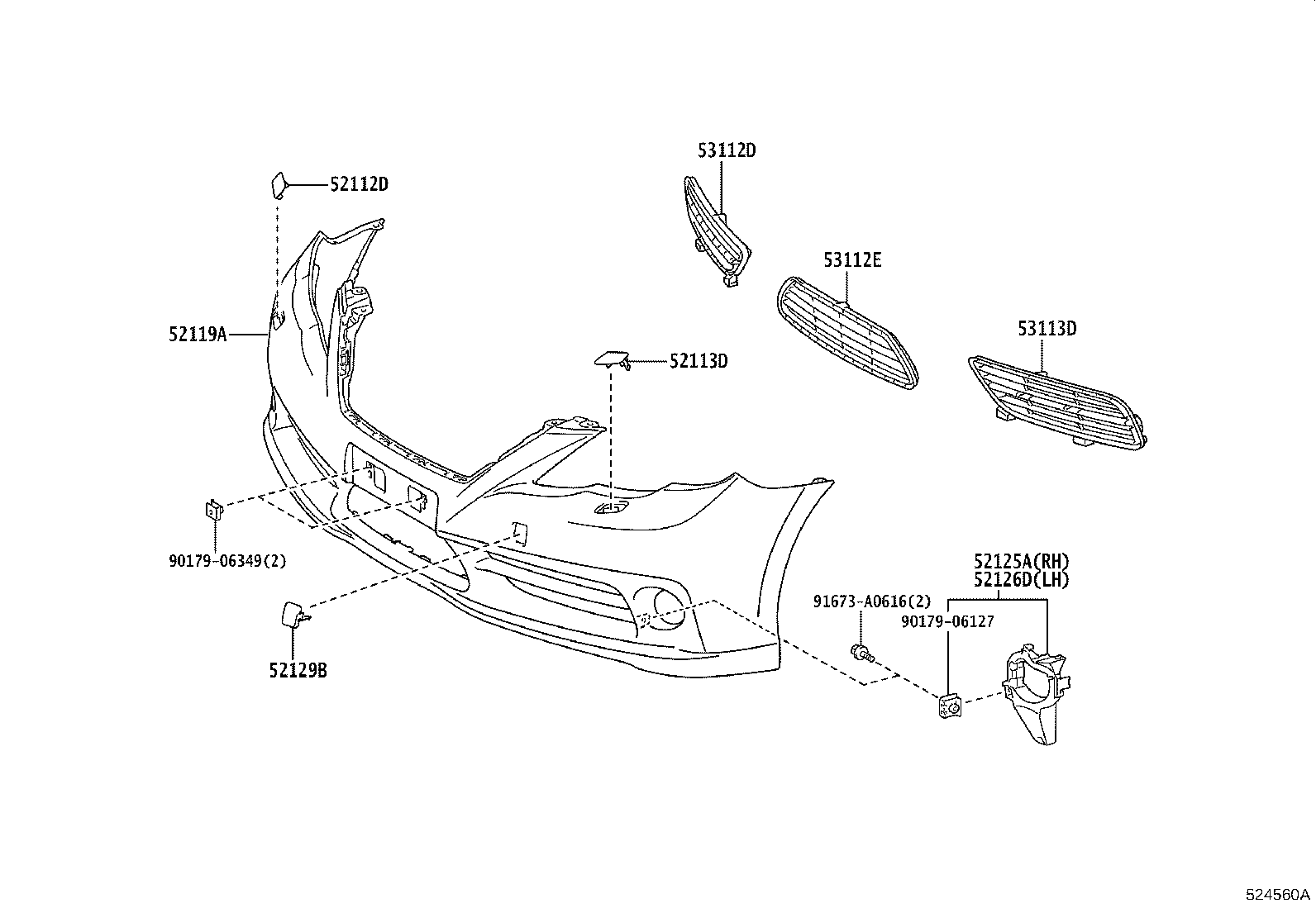

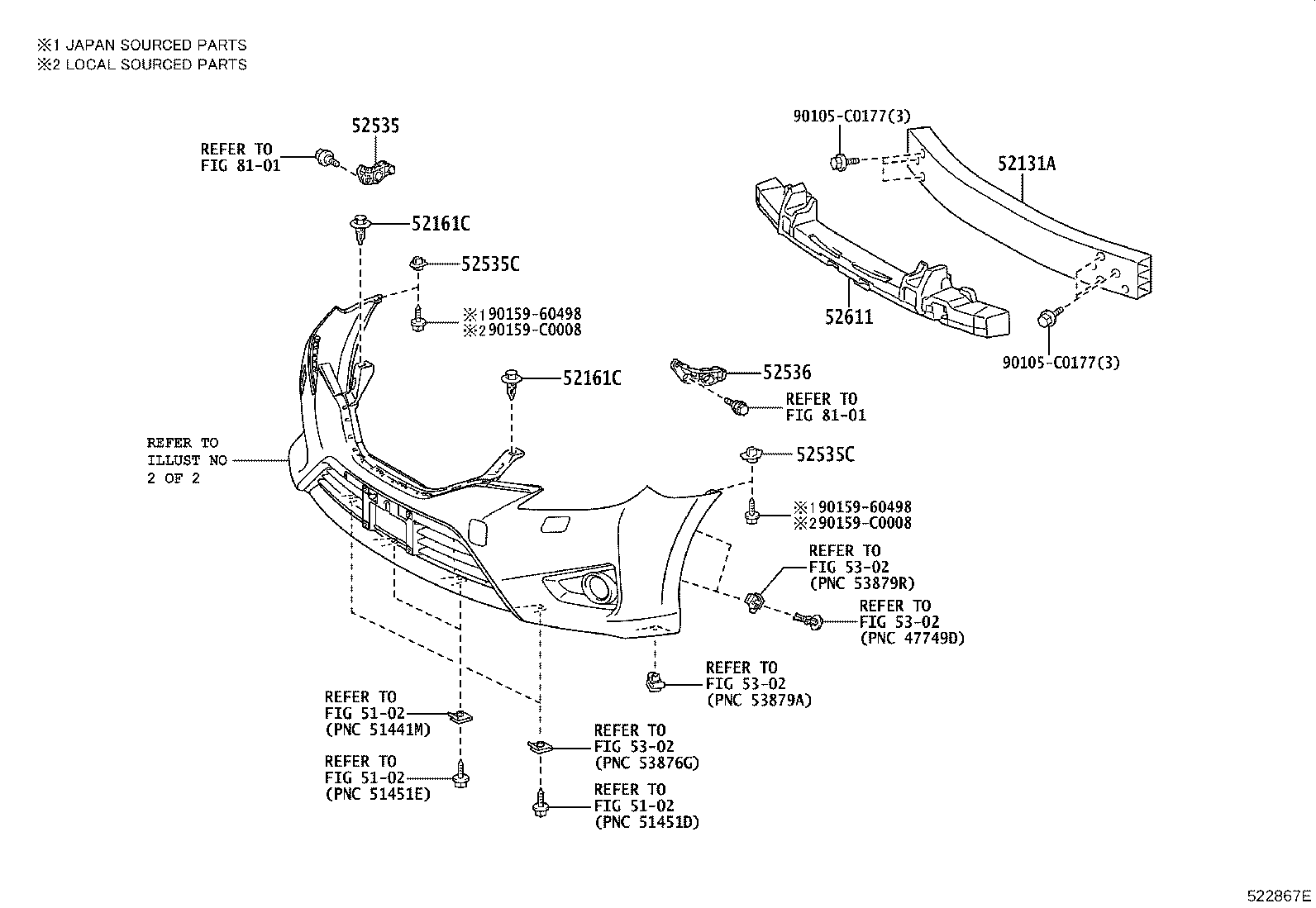

Figure 522288C 522288C 2010-09 → 2013-09 Figure 524559A 524559A 2010-09 → 2013-09 Figure 522289C 522289C 2010-09 → 2013-09 Figure 524560A 524560A 2010-09 → 2013-09 Figure 522867E 522867E 2013-09 → — Figure 524561A 524561A 2013-09 → —

Part groups

PNCDescription
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52119A Cover, Front Bumper
52123B Plate, Front Bumper Reinforcement, RH
52124B Plate, Front Bumper Reinforcement, LH
52125A Bracket, Fog Lamp Mounting, RH
52126D Bracket, Fog Lamp Mounting, LH
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52161C Piece, Front Bumper
52512 Filler, Front Bumper, RH
52513 Filler, Front Bumper, LH
52535 Retainer, Front Bumper Side, RH
52535C Retainer, Front Bumper Side
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
53112D Grille, Radiator, Lower RH
53112E Grille, Radiator, Lower NO.1
53113D Grille, Radiator, Lower LH
75392J Retainer, Outside Moulding
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
