Toyota Reiz
2010-09 → 2017-09 · chassis GRX13# · catalogue 3112A0 · General
Supported model
Data version 2018-03

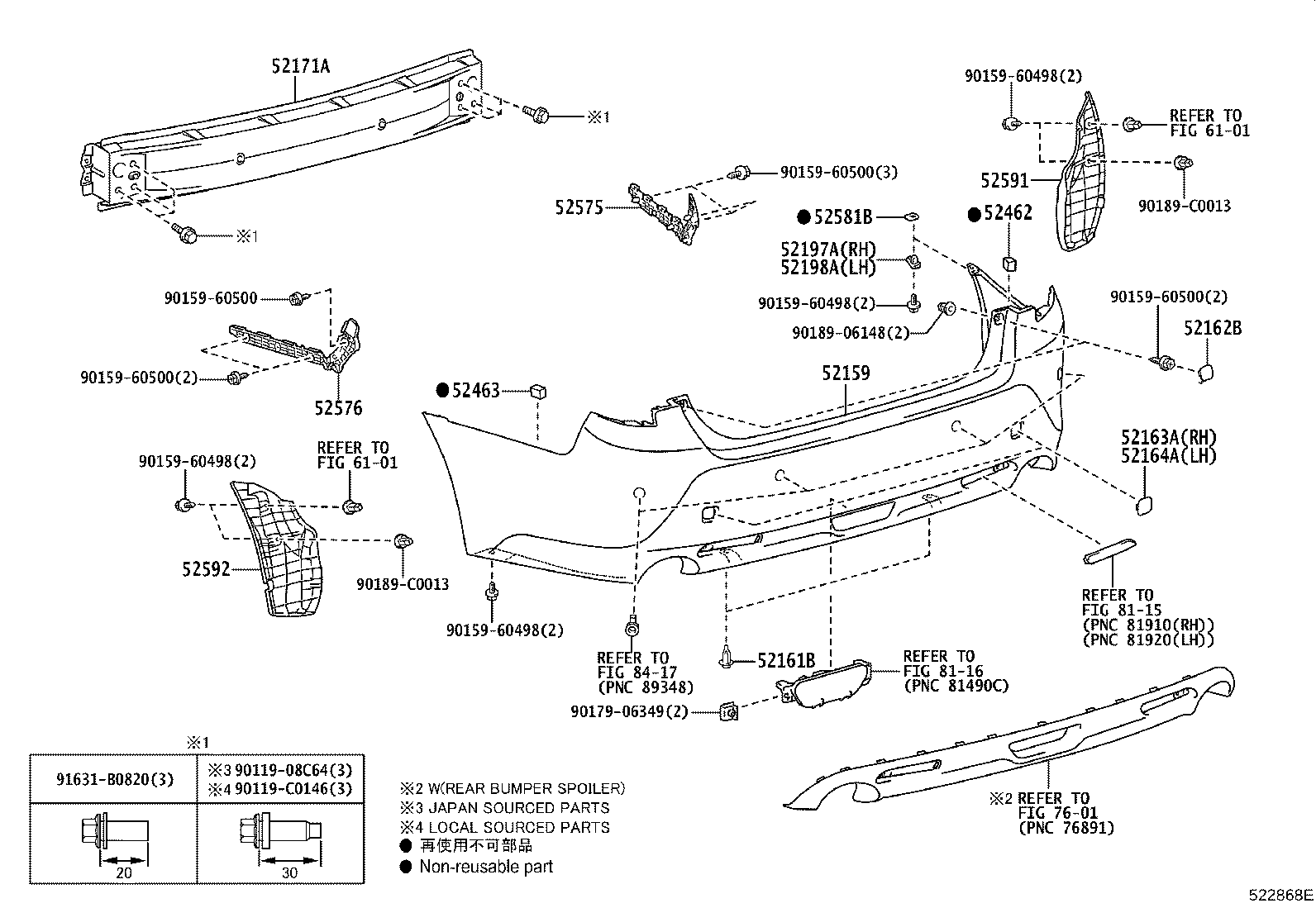

Rear Bumper & Bumper Stay
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52159 | Cover, Rear Bumper |
| 52161B | Piece, Rear Bumper |
| 52162B | Plate, Rear Bumper, NO.1 |
| 52163A | Plate, Rear Bumper, RH |
| 52164A | Plate, Rear Bumper, LH |
| 52171A | Reinforcement, Rear Bumper, NO.1 |
| 52197A | Bracket, Rear Bumper Seal, RH |
| 52198A | Bracket, Rear Bumper Seal, LH |
| 52462 | Pad, Rear Bumper, RH |
| 52463 | Pad, Rear Bumper, LH |
| 52575 | Retainer, Rear Bumper Side, RH |
| 52576 | Retainer, Rear Bumper Side, LH |
| 52581B | Protector, Rear Bumper |
| 52591 | Seal, Rear Bumper Side, RH |
| 52592 | Seal, Rear Bumper Side, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
