Toyota Reiz

2010-09 → 2017-09 · chassis GRX13# · catalogue 3112A0 · General

Supported model Data version 2018-03

Rear Seat & Seat Track

37 part groups · 4 illustrations

PNC	Description
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH

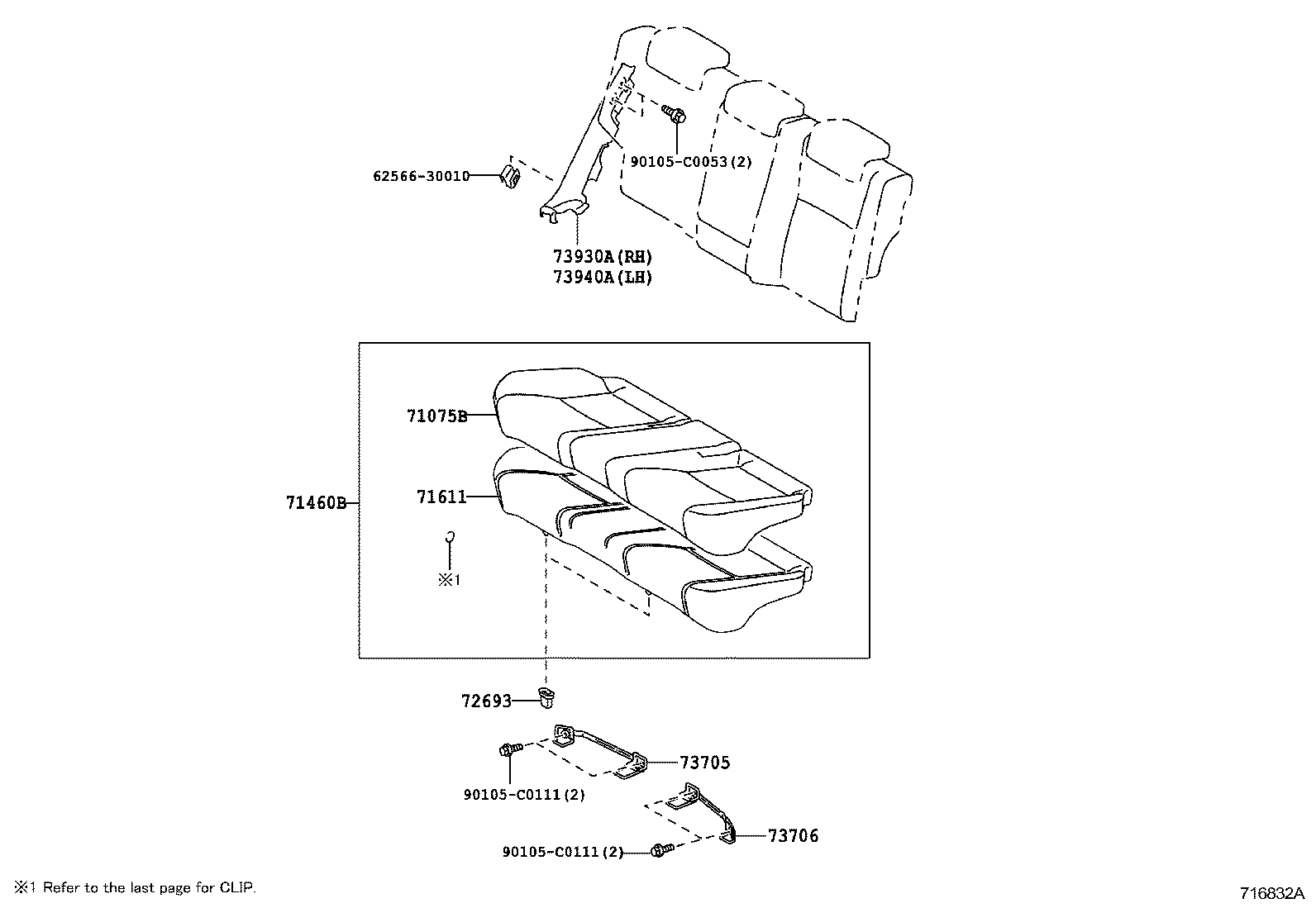

71075B	Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71460B	Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480S	Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S	Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71540A	Back Assy, Rear Side Seat, RH
71550A	Back Assy, Rear Side Seat, LH
71611	Pad, Rear Seat Cushion
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71830B	Bush(FOR REAR SEAT ARMREST)
71833A	Cover, Rear Seat Reclining, NO.1 RH
71834A	Cover, Rear Seat Reclining, NO.1 LH
71875E	Cover, Reclining Adjuster Inside, RH
71876E	Cover, Reclining Adjuster Inside, LH
71881	Board, Rear Seatback, RH
71882A	Board, Rear Seatback, LH
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
71956B	Support, Rear Seat Headrest
71960B	Headrest Assy, Rear Seat, Center
72057	Lever Sub-assy, Rear Seat Lock Control, RH
72058A	Lever Sub-assy, Rear Seat Lock Control, LH
72615A	Cover, Rear Seatback Lock Striker, RH
72616A	Cover, Rear Seatback Lock Striker, LH
72693	Hook, Rear Seat Cushion Lock
72704A	Cable, Rear Seat Reclining Control
72830	Armrest Assy, Rear Seat, Center
72839	Shim, Rear Seat Armrest Hinge
72868	Cover, Center Armrest Hinge, RH
73705	Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706	Bracket Sub-assy, Child Restraint Seat Anchor, LH
73930A	Airbag Assy, Rear Seat, RH
73940A	Airbag Assy, Rear Seat, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
