Toyota Reiz

2010-09 → 2017-09 · chassis GRX13# · catalogue 3112A0 · General

Supported model Data version 2018-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

10 part groups · 2 illustrations

Illustrations

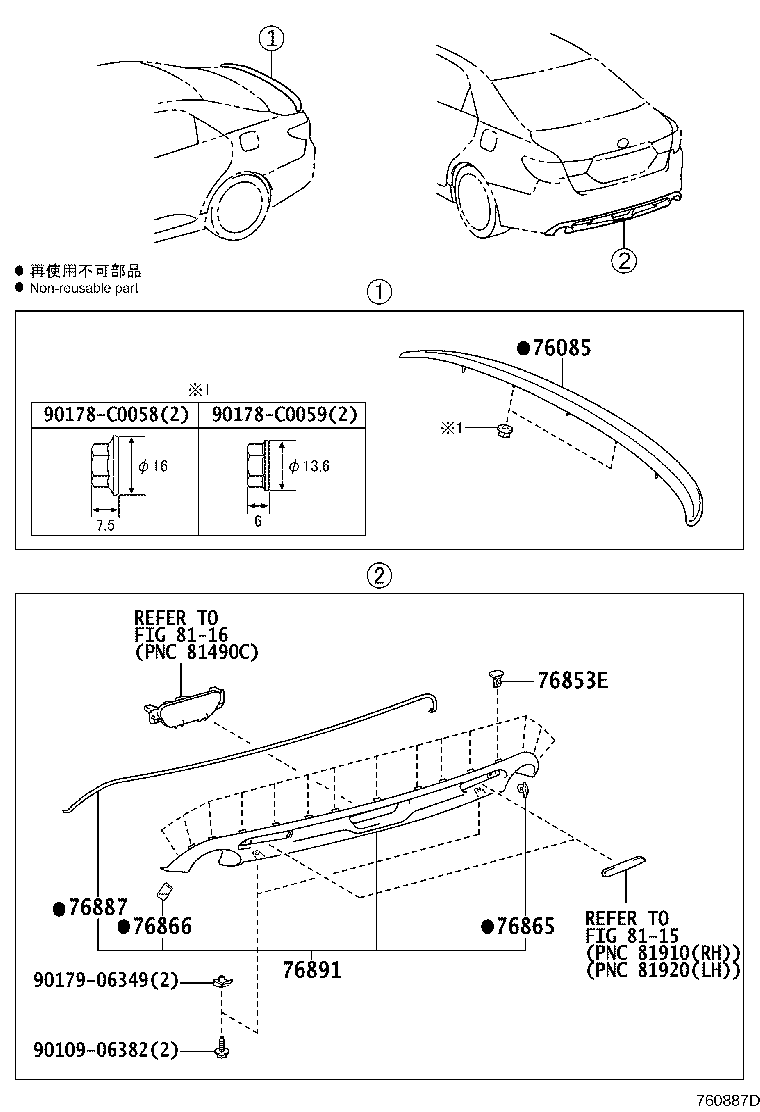

Figure 760758C 760758C 2010-09 → 2013-09 Figure 760887D 760887D 2013-09 → —

Part groups

PNCDescription
76085 Spoiler Sub-assy, Rear
76851A Cover, Front Spoiler, RH
76852A Cover, Front Spoiler, LH
76853A Retainer, Front Spoiler, Upper NO.1
76853E Retainer, Rear Spoiler, NO.1
76865 Retainer, Rear Spoiler, NO.1
76866 Retainer, Rear Spoiler, NO.2
76887 Seal, Rear Spoiler
76891 Spoiler, Rear NO.1
76892 Spoiler, Rear NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
