Toyota Reiz
2010-09 → 2017-09 · chassis GRX13# · catalogue 3112A0 · General
Supported model
Data version 2018-03
Switch & Relay & Computer

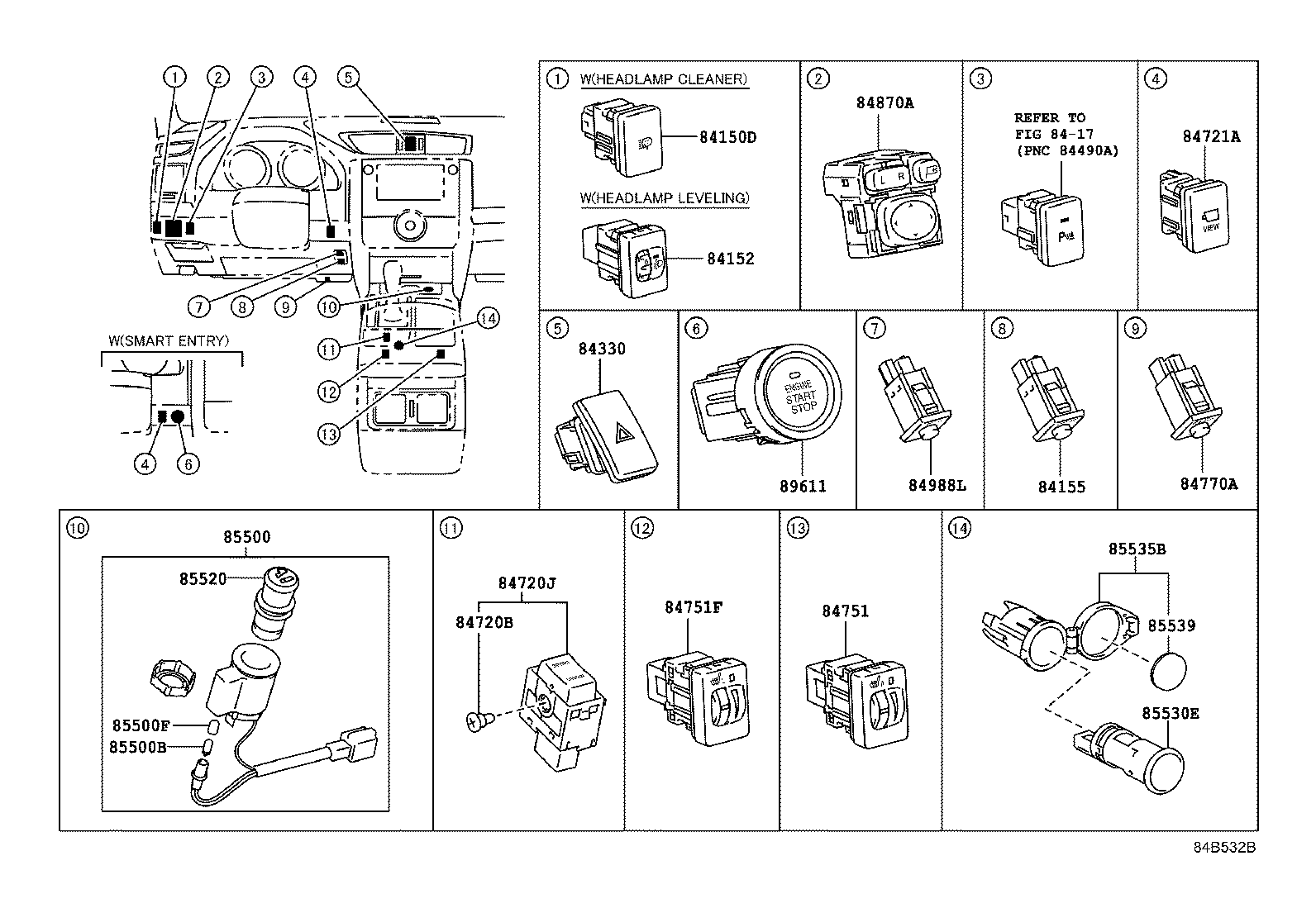

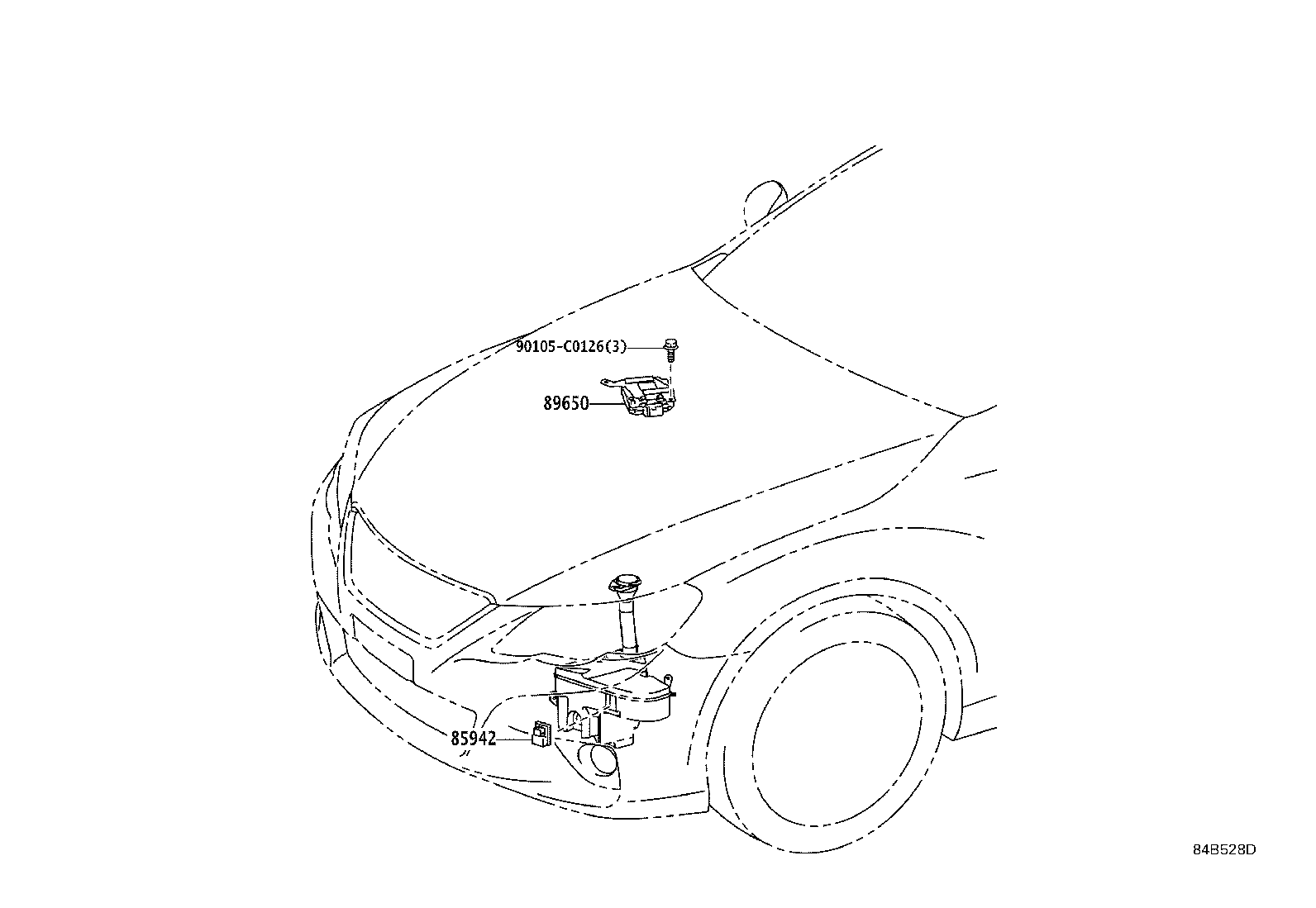

105 part groups · 12 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371C | Relay, Ignition, NO.2 |
| 81980 | Flasher Assy, Turn Signal |
| 82210J | Fusible Link |
| 82600F | Fuse, Fuse Block |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |

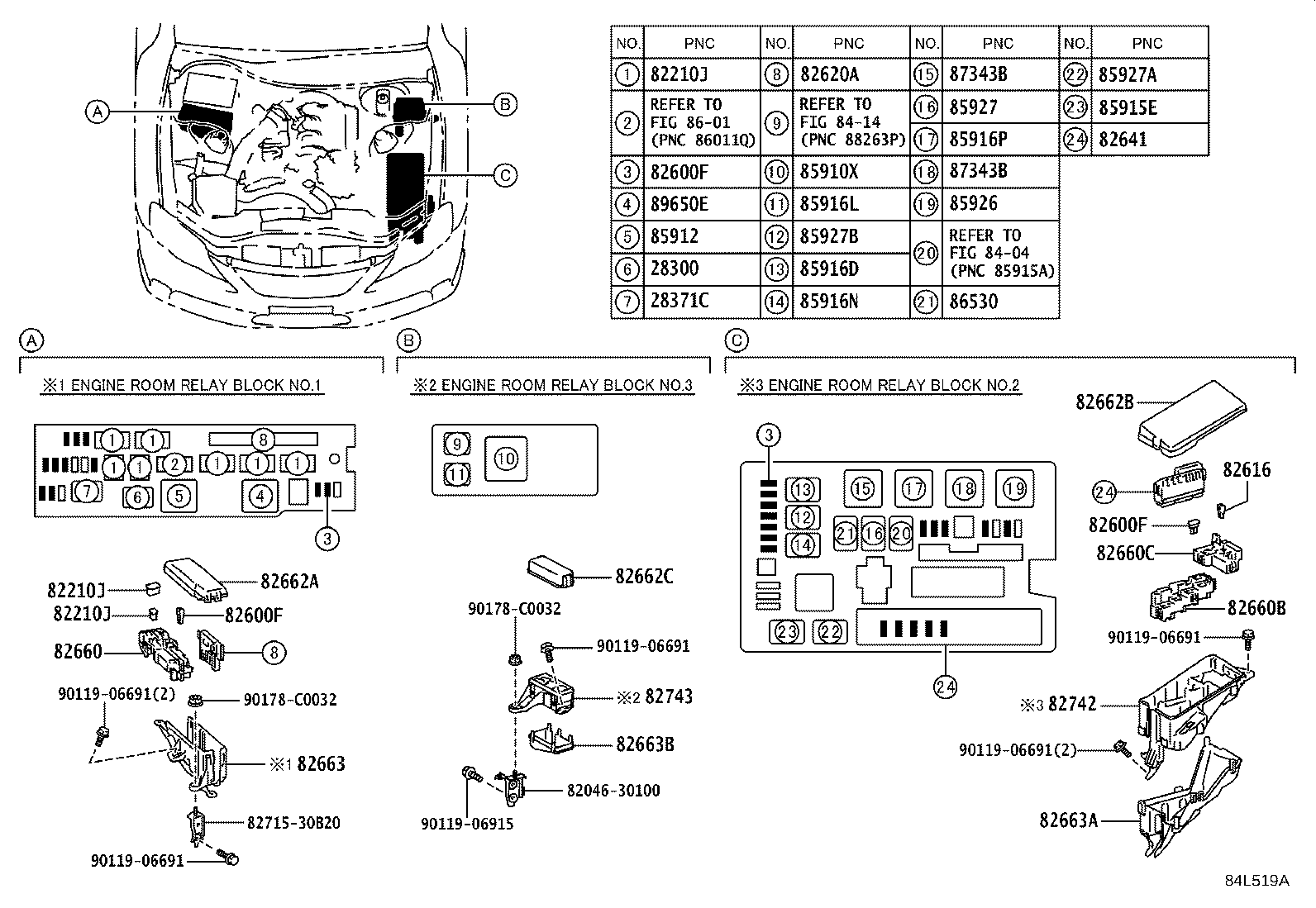

| 82641 | Relay, Integration NO.1 |

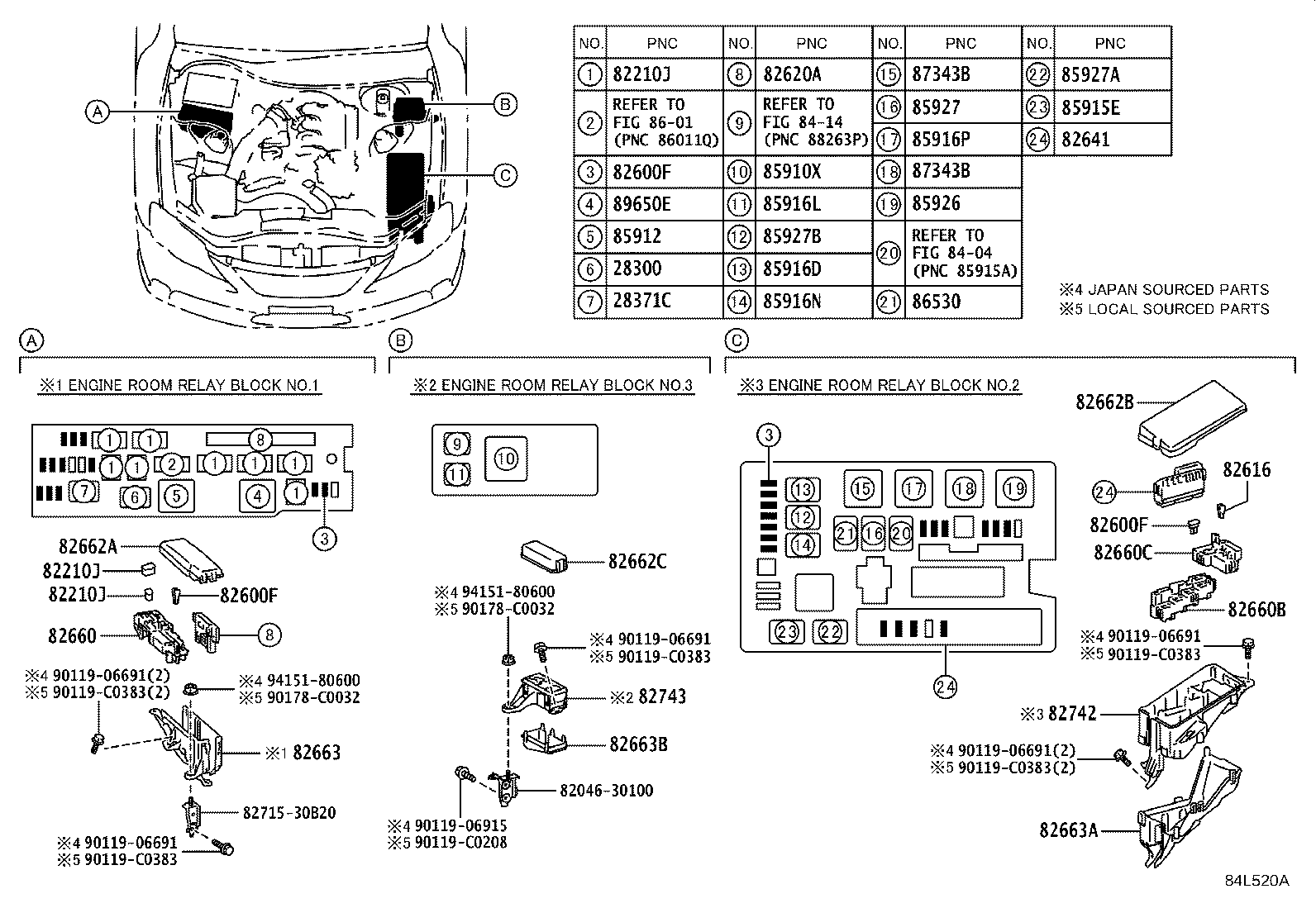

| 82660 | Block Assy, Relay, Engine Room |
| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82662C | Cover, Relay Block, Upper, NO.3 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663B | Cover, Relay Block, Lower, NO.3 |
| 82672A | Cover, Junction Block |
| 82672B | Cover, Junction Block |
| 82715 | Bracket,Wiring Harness Clamp |

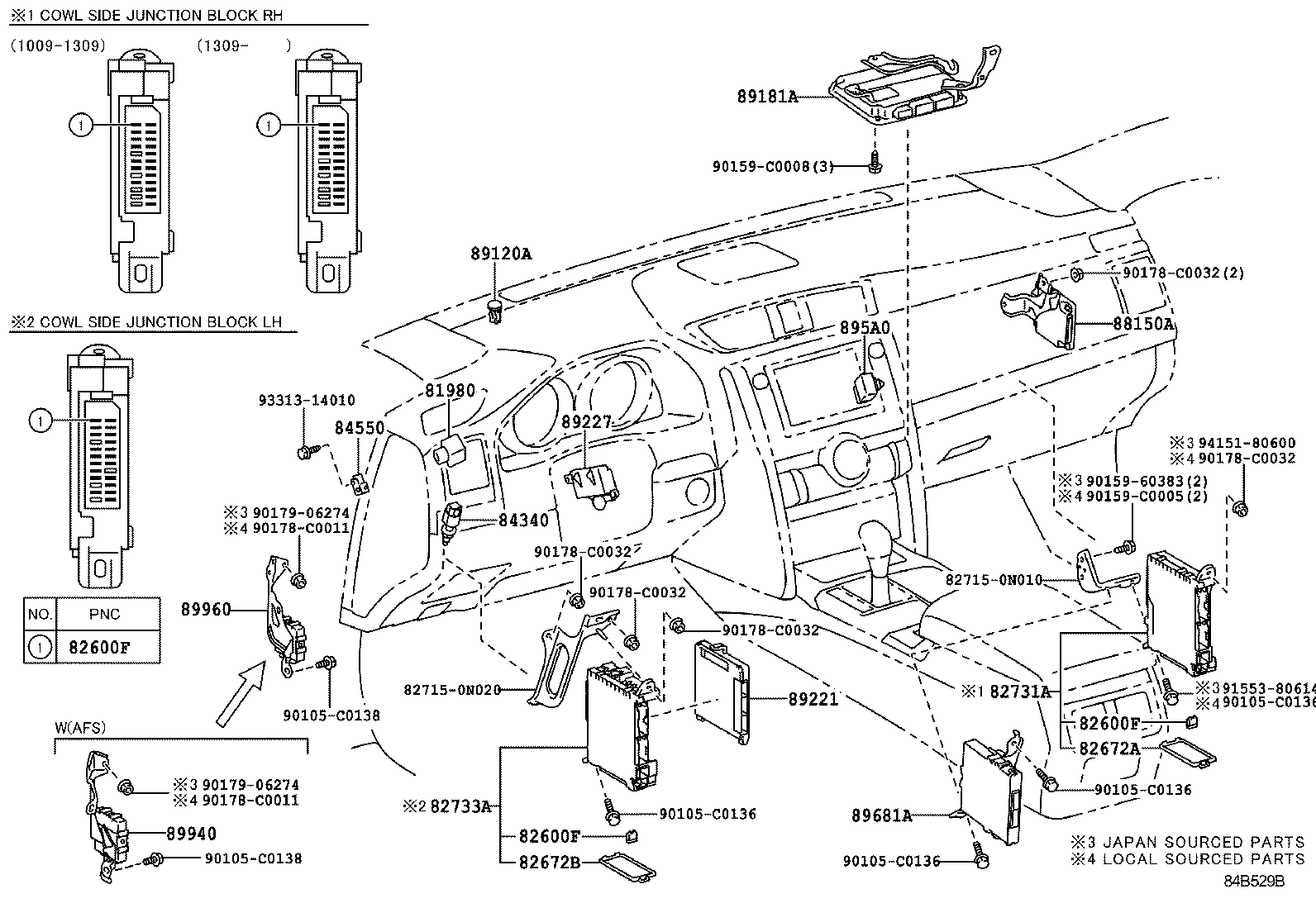

| 82731A | Block, Cowl Side Junction, RH |
| 82733A | Block, Cowl Side Junction, LH |
| 82742 | Block, Engine Room Relay, NO.2 |
| 82743 | Block, Engine Room Relay, NO.3 |

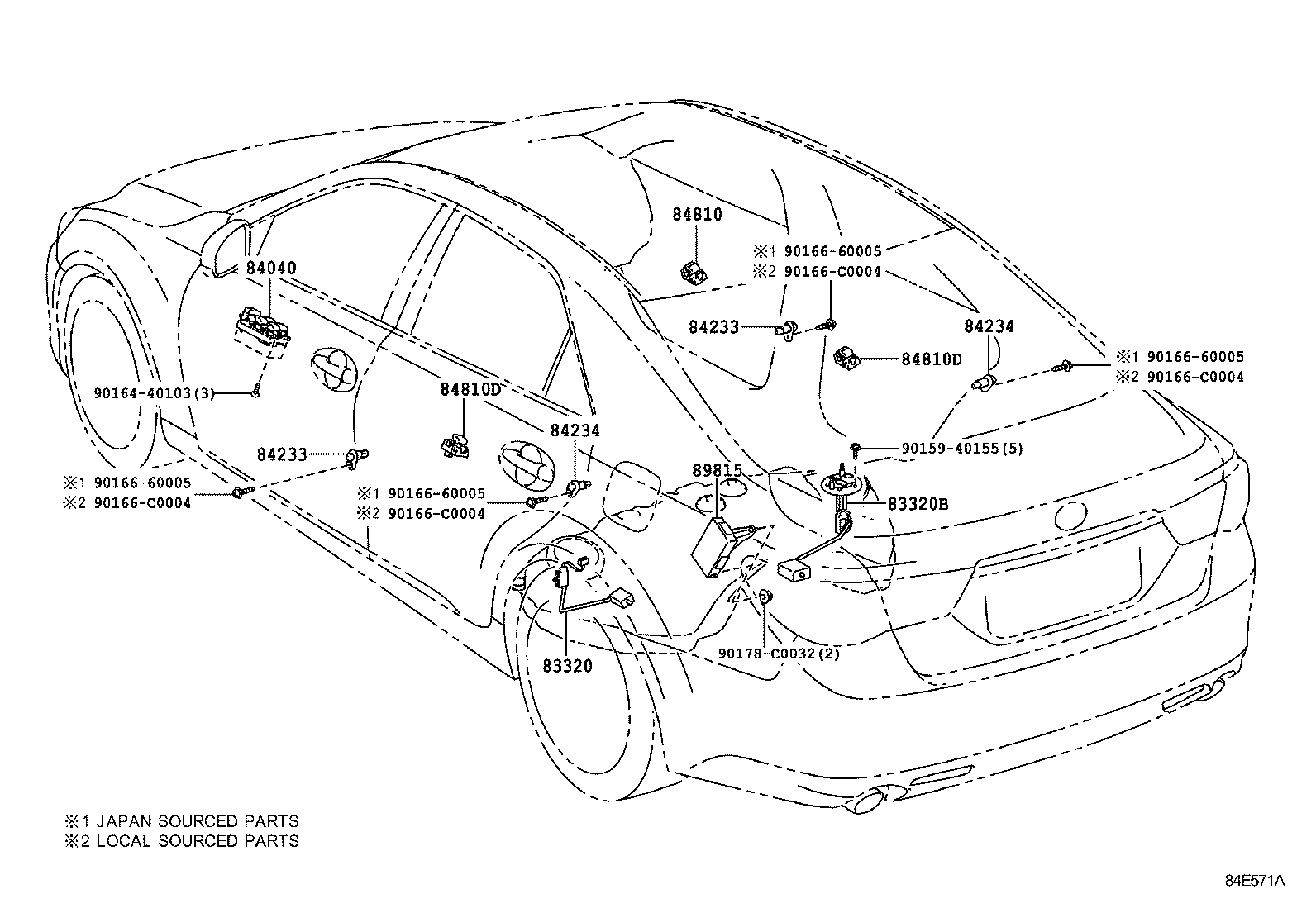

| 83320 | Gage Assy, Fuel Sender |
| 83320B | Gage Assy, Fuel Sender, NO.2 |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84040 | Master Switch Assy,Multiplex Network |
| 84052 | Switch Assy, Un-lock Warning |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84150D | Switch Assy, Headlamp Cleaner |
| 84152 | Switch, Headlamp Leveling |
| 84155 | Switch, Headlamp Swivel Main |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84247A | Switch, Steering Pad, LH |
| 84250A | Switch Assy, Steering Pad |

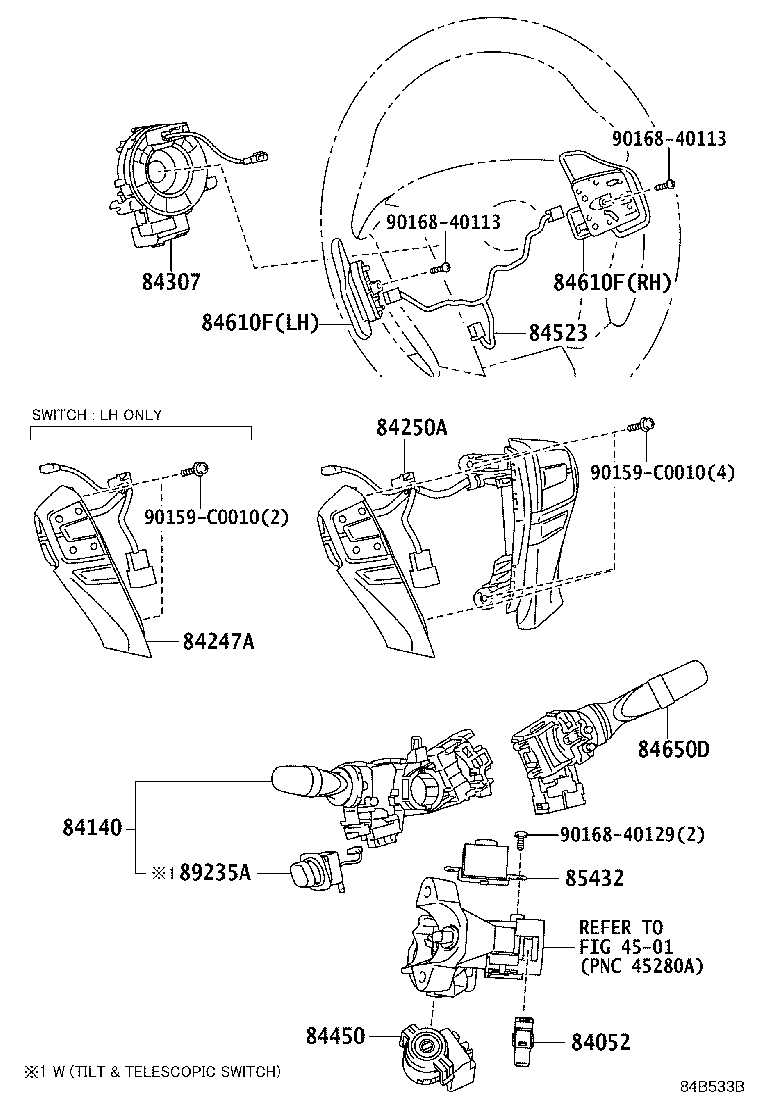

| 84307 | Cable Sub-assy, Spiral W/Sensor |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84490D | Switch Assy, Ipa Main |
| 84523 | Wire, Switch NO.1 |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84610F | Switch Assy, Transmission Shift |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84720B | Bulb (FOR PATTERN SELECT SWITCH) |
| 84720J | Switch Assy, Pattern Select |
| 84721A | Switch, Front Wide View |
| 84751 | Switch, Seat Heater |
| 84751F | Switch, Seat Heater |
| 84770A | Switch Assy, Pre-collision System Cancel |

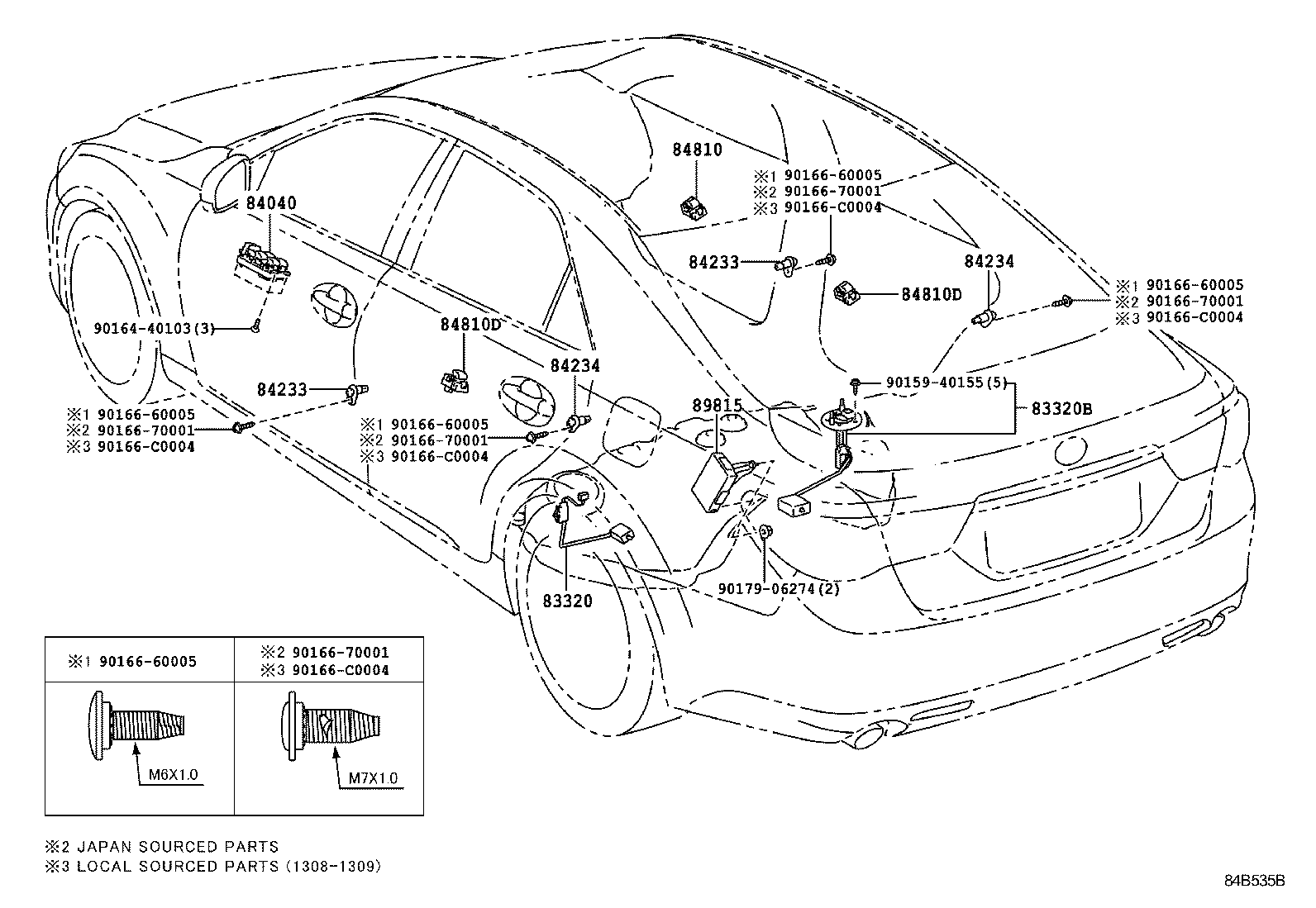

| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84870A | Switch Assy, Outer Mirror |
| 84921A | Knob, Power Seat Switch (FOR RECLINING) |
| 84921B | Knob, Power Seat Switch (FOR SLIDE & VERTICAL) |
| 84922A | Switch, Front Power Seat(FOR LUMBAR) |
| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 84988L | Switch, Vsc Off |
| 85432 | Solenoid, Key Interlock |

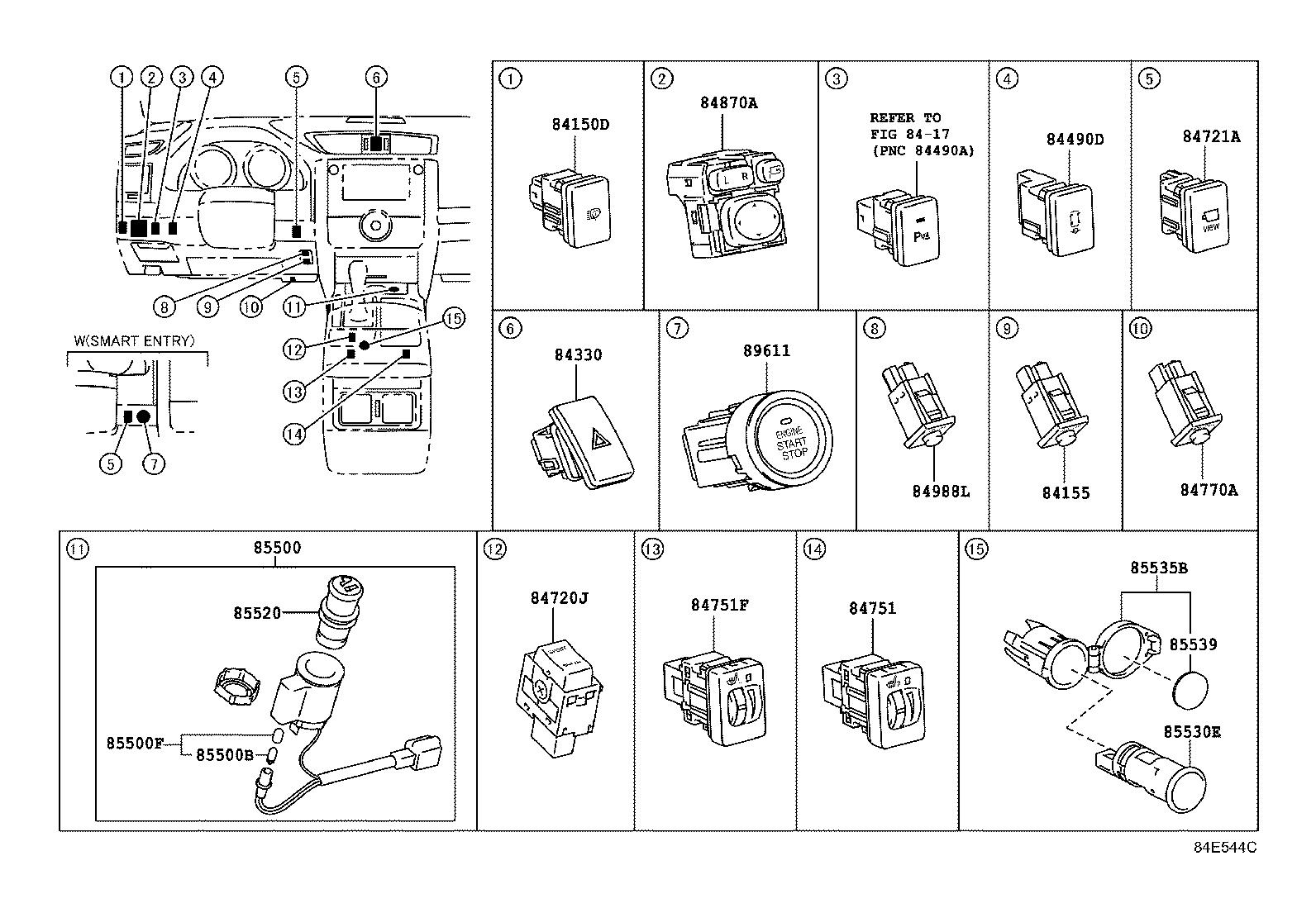

| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85500F | Cap, Cigarette Lighter Bulb |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85530E | Socket Assy, Power Outlet, NO.3 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85539 | Label, Power Outlet Notice |
| 85910X | Relay, Heater Mirror |
| 85912 | Relay, Defogger |
| 85915E | Relay |
| 85916D | Relay, Fog Lamp |
| 85916L | Relay, Rear Fog Lamp |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85926 | Relay, Headlamp Dimmer |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85927B | Relay, Cooling Fan, NO.3 |
| 85942 | Relay, Headlamp Cleaner Control |
| 86530 | Relay Assy, Horn |
| 87343B | Relay, Heater Sub, NO.1(FOR GLOW PLUG HEATER) |
| 88150A | Computer Assy, Driving Support |
| 89120A | Sensor, Automatic Light Control |
| 89181A | Computer, Steering Control |
| 89221 | Computer, Multiplex Network Body |
| 89227 | Computer, Multiplex Tilt & Telescopic |
| 89235A | Switch, Tilt & Telescopic |
| 89465 | Sensor, Oxygen |
| 89465A | Sensor, Oxygen NO.2 |
| 89467B | Sensor, Air Fuel Ratio |
| 89467C | Sensor, Air Fuel Ratio, NO.2 |
| 89491 | Sensor, Engine Oil Level |
| 89491A | Gasket, Engine Oil Level Sensor |
| 895A0 | Relay Assy, Stop Lamp Control |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |

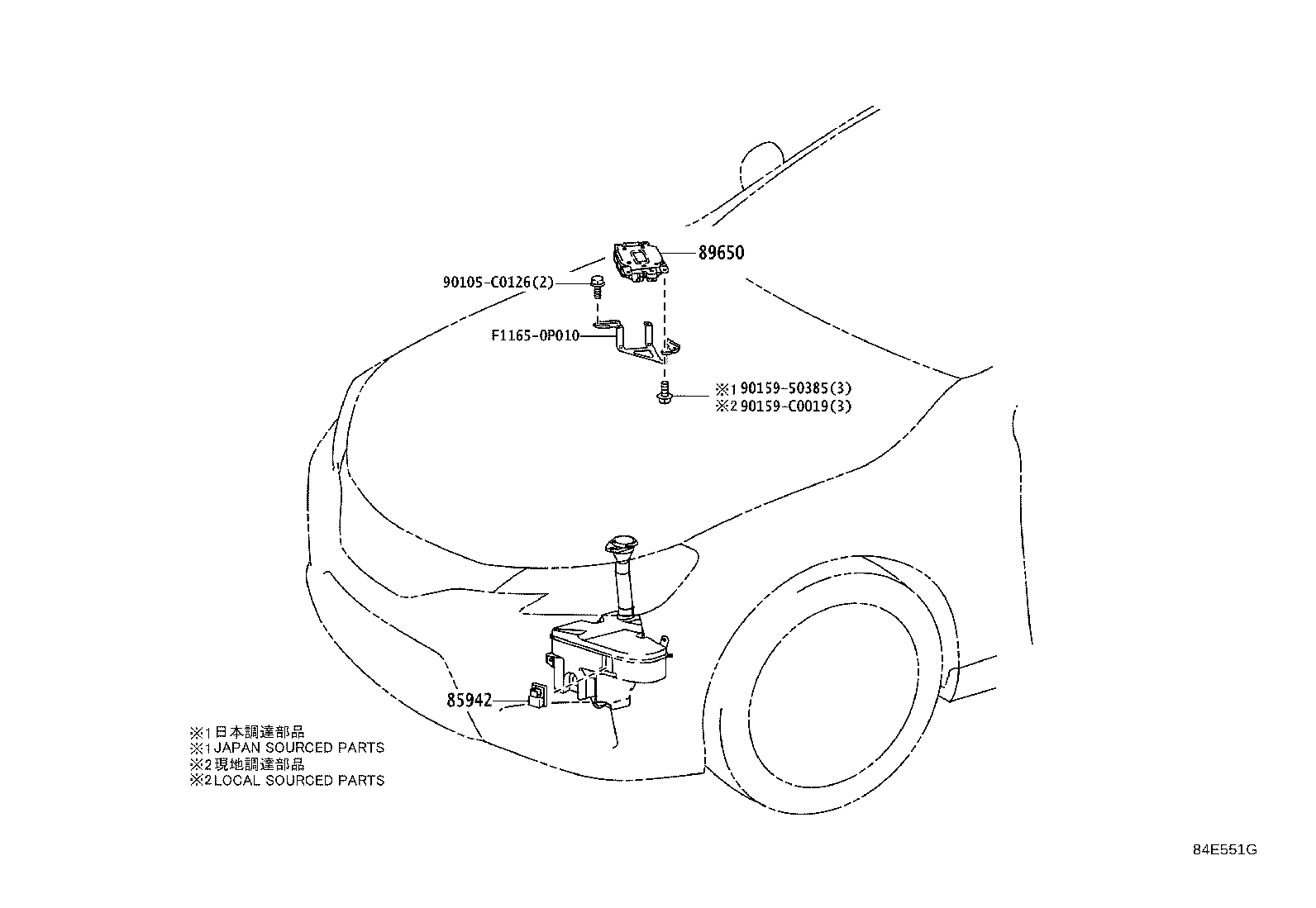

| 89650 | Computer Assy, Power Steering |
| 89650E | Relay, Electric Power Steering |
| 89681A | Computer, Power Management Control |
| 89815 | Computer, Seat Belt Control |
| 89940 | Computer Assy, Headlamp Swivel |
| 89960 | Computer Assy, Headlamp Leveling |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
