Toyota Reiz

2010-09 → 2017-09 · chassis GRX13# · catalogue 3112A0 · General

Supported model Data version 2018-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

10 part groups · 2 illustrations

Illustrations

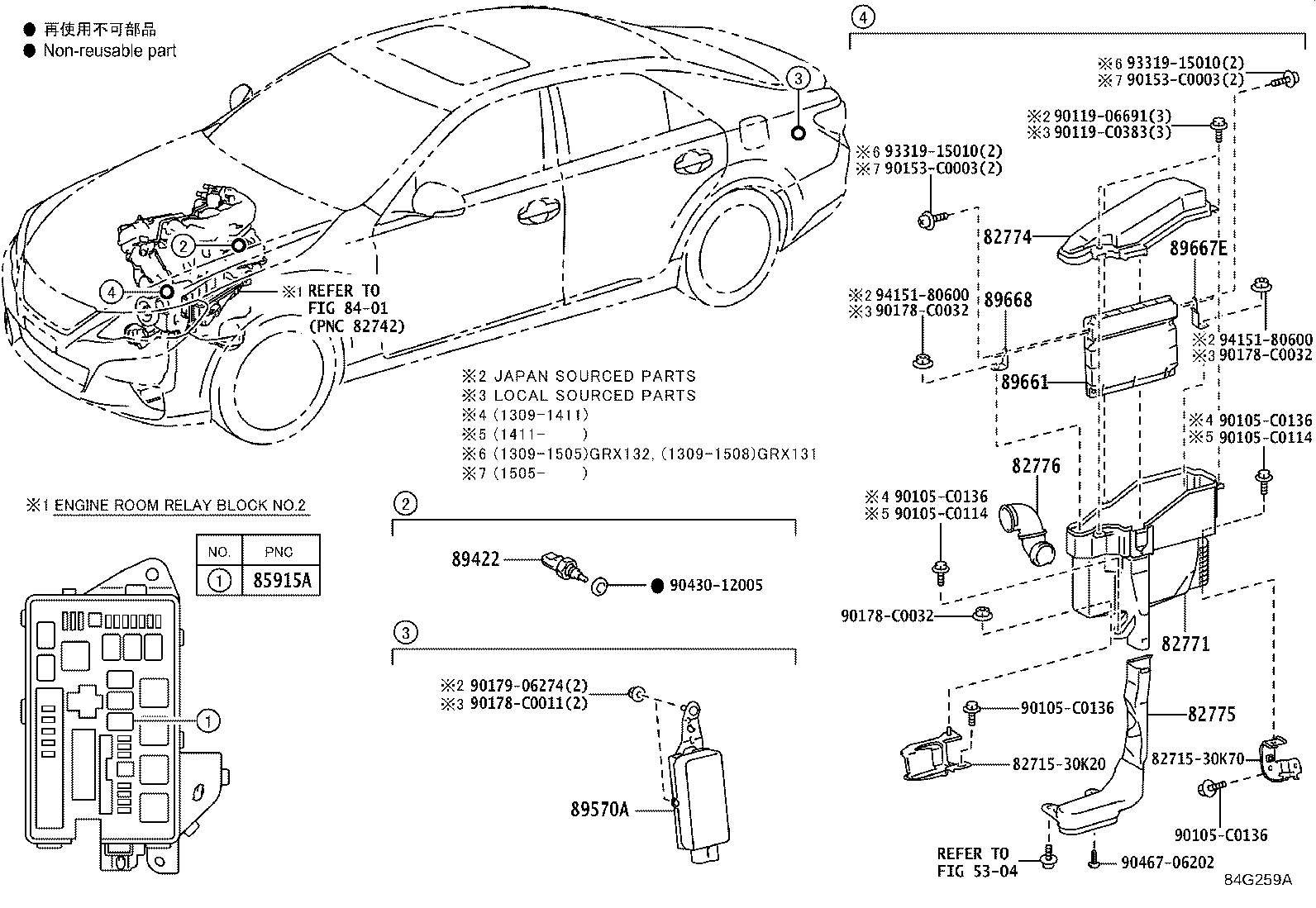

Figure 84B544H 84B544H 2010-09 → 2013-09 Figure 84G259A 84G259A 2013-09 → —

Part groups

PNCDescription
82771 Box, Engine Room Ecu
82774 Cover, Engine Room Ecu
82775 Duct, Engine Room Ecu Inlet
82776 Duct, Engine Room Ecu Outlet
85915A Relay, Main
89422 Sensor, Water Temperature (FOR E.F.I.)
89570A Computer Assy, Fuel Pump Control
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
