Toyota Reiz

2010-09 → 2017-09 · chassis GRX13# · catalogue 3112A0 · General

Supported model Data version 2018-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

8 part groups · 2 illustrations

Illustrations

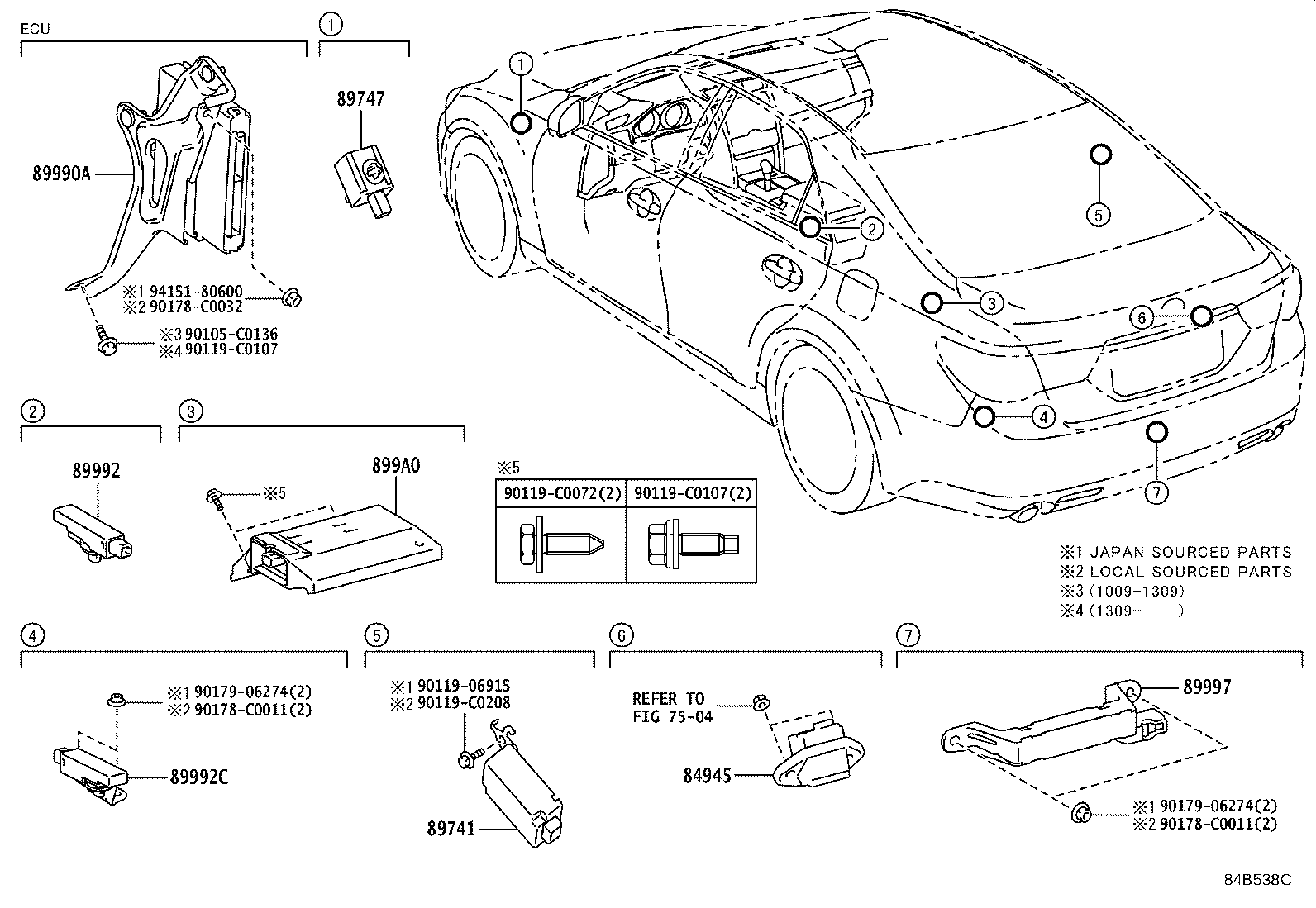

Figure 84B537B 84B537B 2010-09 → — Figure 84B538C 84B538C 2010-09 → —

Part groups

PNCDescription
84945 Switch, Luggage Electrical Key
89741 Receiver, Door Control
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
89992 Oscillator, Indoor Electrical Key
89992C Oscillator, Indoor Electrical Key, NO.2
89997 Antenna, Electrical Key
899A0 Antenna Assy, Indoor Electrical Key, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
