Toyota Reiz
2010-09 → 2017-09 · chassis GRX13# · catalogue 3112A0 · General
Supported model
Data version 2018-03

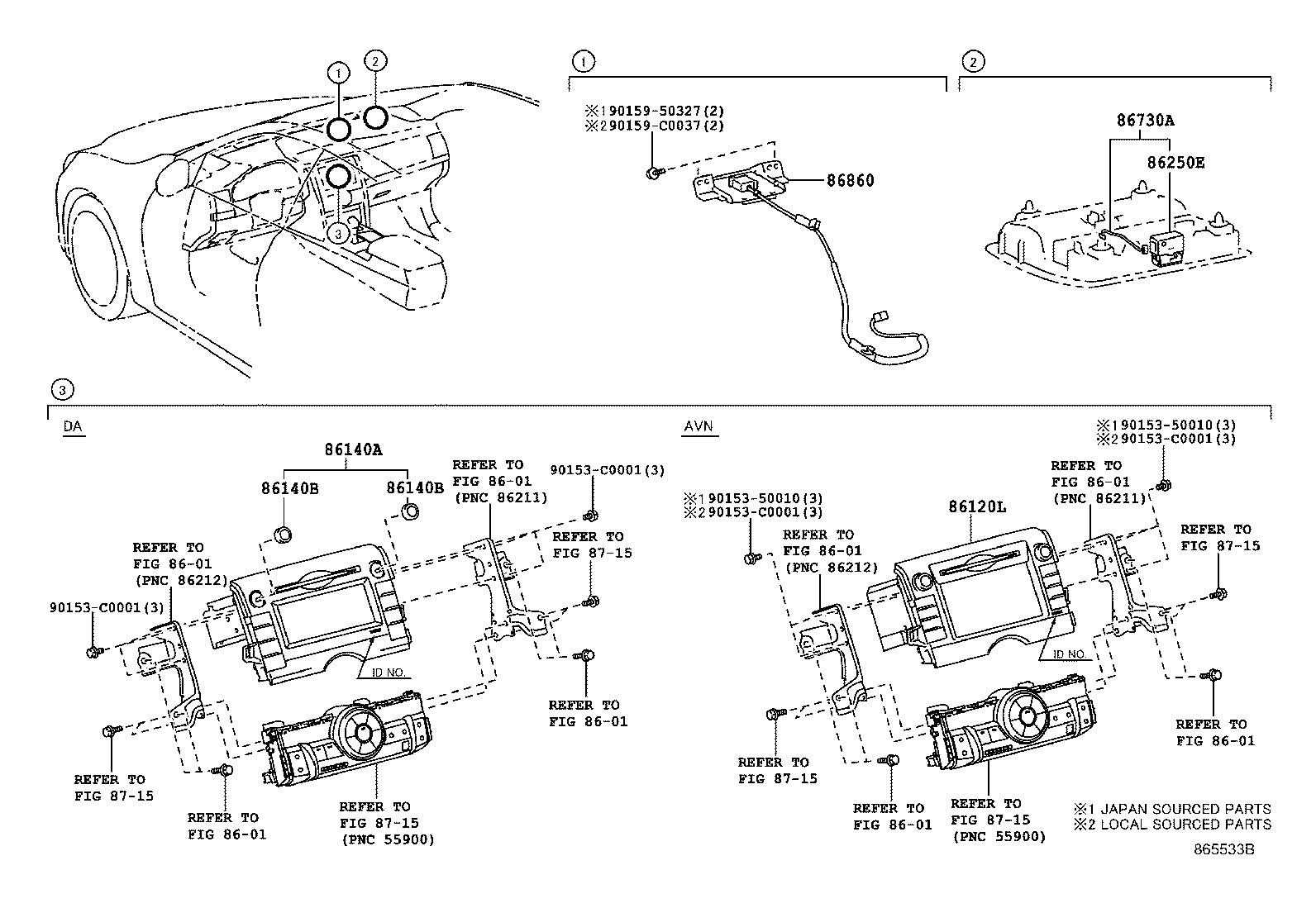

Navigation & Front Monitor Display
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86120L | Receiver Assy, Navigation |
| 86120P | Knob, Navigation Receiver Switch |
| 86140A | Receiver Assy, Radio & Display |
| 86140B | Knob, Radio & Display Receiver Switch |
| 86250E | Microphone Assy, Amplifier |
| 86271 | Disc, Disc Player |
| 86730A | Microphone Assy, Telephone |
| 86860 | Antenna Assy, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
