Toyota Reiz

2010-09 → 2017-09 · chassis GRX13# · catalogue 3112A0 · General

Supported model Data version 2018-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

22 part groups · 3 illustrations

Illustrations

Figure 87B500B 87B500B 2010-09 → — Figure 87D749C 87D749C 2010-09 → — Figure 87B502 87B502 2010-09 → —

Part groups

PNCDescription

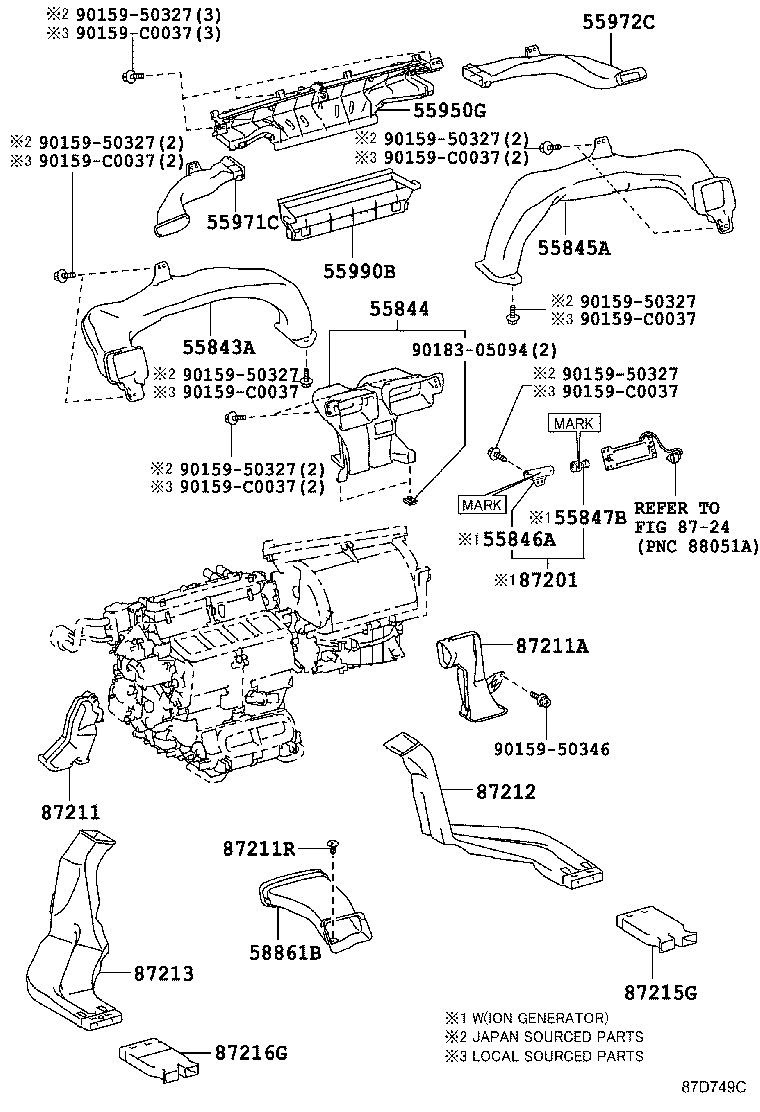

55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55846A Duct, Heater TO Register, NO.4
55847B Duct, Heater TO Register, NO.5
55900 Control Assy, Air Conditioner
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
55990B Nozzle Assy, Defroster, Lower
58861B Duct, Console Box, NO.1
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211R Clip, Air Duct
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215G Guide, Air Duct, Rear RH
87216G Guide, Air Duct, Rear LH

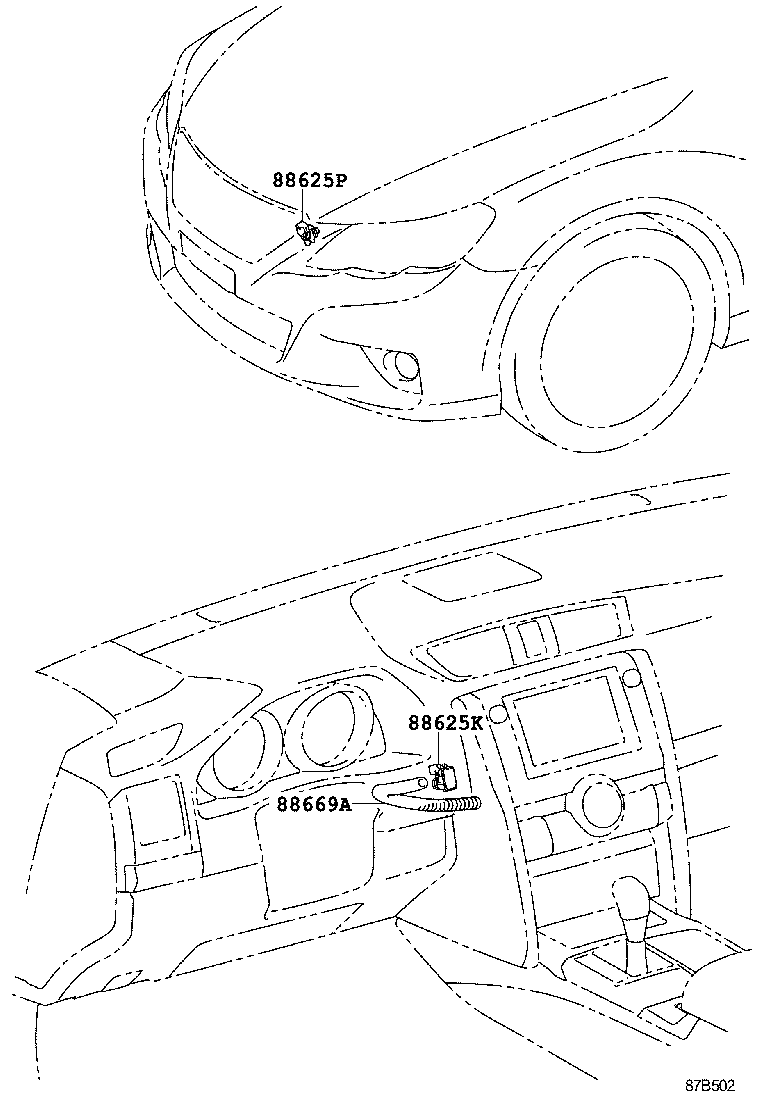

88625K Thermistor, Cooler
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88669A Hose (FOR COOLER THERMISTOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
