Exploded illustration 717721E 71910A — HEADREST ASSY, FRONT SEAT (4 parts) 71440S — BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) (2 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (4 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (4 parts) 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (2 parts) 73920A — AIRBAG ASSY, FRONT SEAT, LH (2 parts) 71640S — SPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (4 parts) 71706 — BOARD SUB-ASSY, FRONT SEATBACK, LH (2 parts) 71875B — COVER, RECLINING ADJUSTER INSIDE, RH (4 parts) 71876A — COVER, RECLINING ADJUSTER INSIDE, LH (4 parts) 87501B — CONTROL SUB-ASSY, SEAT HEATER, LH (3 parts) 71849 — CAP, SEAT ADJUSTER COVER, LH (2 parts) 71620S — SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (4 parts) 87510L — HEATER ASSY, FRONT SEAT CUSHION, LH (2 parts) 87510N — HEATER ASSY, FRONT SEATBACK, LH (2 parts) 71537E — PROTECTOR, FRONT SEAT CUSHION, NO.1 (2 parts) 71537F — PROTECTOR, FRONT SEAT CUSHION, NO.2 (2 parts) 9011910926 — not listed in this catalogue 9011910926 — not listed in this catalogue 9011910926 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 72124 — COVER, SEAT TRACK BRACKET, OUTER FRONT LH (2 parts) 72128A — COVER, SEAT TRACK BRACKET, INNER FRONT LH (2 parts) 72158 — COVER, SEAT TRACK BRACKET, INNER LH (2 parts) 72138 — COVER, SEAT TRACK, OUTER LH (2 parts) 7104 — not listed in this catalogue 71821A — CLIP (FOR FRONT SEAT SIDE SHIELD) (2 parts) 71867B — CLIP(FOR FRONT SEAT CUSHION INNER SHIELD) (2 parts) 9011910601 — not listed in this catalogue 9011910601 — not listed in this catalogue 9356715018 — not listed in this catalogue 71512S — PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) (2 parts) 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (4 parts) 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (4 parts) 8401 — not listed in this catalogue 71812D — SHIELD, FRONT SEAT CUSHION, LH (4 parts) 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (4 parts) 71868A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH (2 parts) 9418560600 — not listed in this catalogue 9417060600 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue

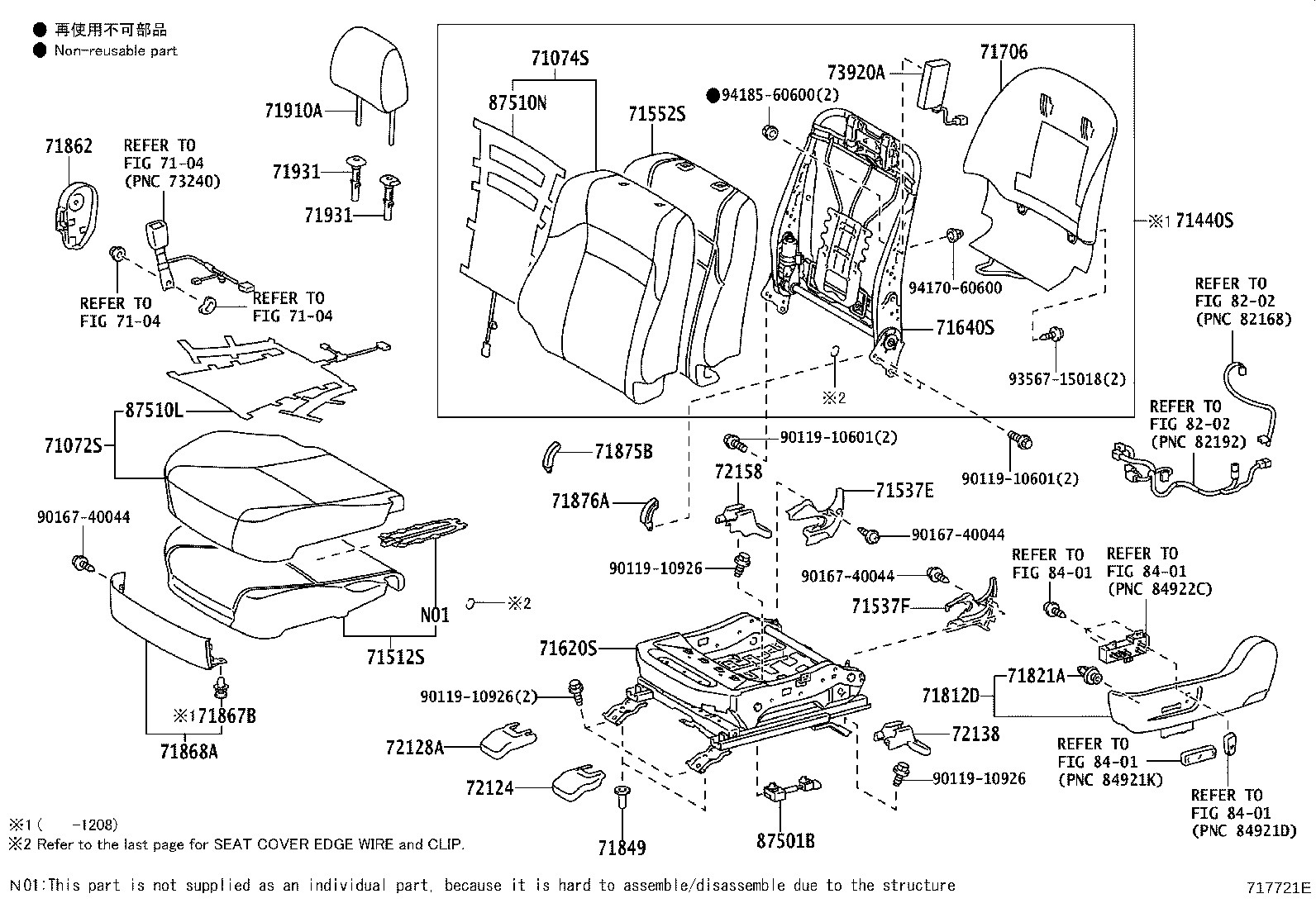

717721E · 29 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
77 parts on this figure
Part number Description Fitment Price
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71072-22A80-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2011-12 → 2012-08 ended
GRX130 —
71072-22B10-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2011-12 → 2012-08 ended
GRX130 —
71072-22A90-C5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-08 → 2016-11 ended
GRX130 —
71072-22B10-C3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-08 → 2014-08 ended
GRX130 —
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71074-22B10-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2011-12 → 2012-08 ended
GRX130 —
71074-22B40-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2011-12 → 2012-08 ended
GRX130 —
71074-22B20-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-08 → 2016-11 ended
GRX130 —
71074-22B40-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-08 → 2014-08 ended
GRX130 —
71440S — Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71440-22A30-C1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2011-12 → 2012-08 ended
GRX130 —
71440-22A60-C1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2011-12 → 2012-08 ended
GRX130 —
71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71502-22060 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2011-12 → 2012-08 ended
GRX130 —
71502-22060 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2012-08 → —
GRX130 —
71537E — Protector, Front Seat Cushion, NO.1
71537-22040-C0 note Protector, Front Seat Cushion, NO.1
2011-12 → 2012-08 ended
GRX130 —
71537-22040-C0 note Protector, Front Seat Cushion, NO.1
2012-08 → 2016-11 ended
GRX130 —
71537F — Protector, Front Seat Cushion, NO.2
71538-22020-C0 note Protector, Front Seat Cushion, NO.2
2011-12 → 2012-08 ended
GRX130 —
71538-22020-C0 note Protector, Front Seat Cushion, NO.2
2012-08 → 2016-11 ended
GRX130 —
71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71552-22240 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2011-12 → 2012-08 ended
GRX130 —
71552-22240 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2012-08 → —
GRX130 —
71620S — Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71620-22230 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2011-12 → 2012-08 ended
GRX130 —
71620-22250 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2011-12 → 2012-08 ended
GRX130 —
71620-22230 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-08 → 2014-08 ended
GRX130 —
71620-22250 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-08 → —
GRX130 —
71640S — Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71640-22520 note Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2011-12 → 2012-08 ended
GRX130 —
71640-22530 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2011-12 → 2012-08 ended
GRX130 —
71640-22520 note Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2012-08 → 2014-08 ended
GRX130 —
71640-22530 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2012-08 → —
GRX130 —
71706 — Board Sub-assy, Front Seatback, LH
71706-22170-C0 note Board Sub-assy, Front Seatback, LH
2011-12 → 2012-08 ended
GRX130 —
71706-22170-C1 note Board Sub-assy, Front Seatback, LH
2012-08 → 2016-11 ended
GRX130 —
71812D — Shield, Front Seat Cushion, LH
71812-22300-C0 note Shield, Front Seat Cushion, LH
2011-12 → 2012-08 ended
GRX130 —
71812-22310-C0 note Shield, Front Seat Cushion, LH
2011-12 → 2012-08 ended
GRX130 —
71812-22300-C0 note Shield, Front Seat Cushion, LH
2012-08 → 2014-08 ended
GRX130 —
71812-22310-C0 note Shield, Front Seat Cushion, LH
2012-08 → 2016-11 ended
GRX130 —
71821A — Clip (FOR FRONT SEAT SIDE SHIELD)
90467-10161 Clip (FOR FRONT SEAT SIDE SHIELD)
2011-12 → 2012-08 ended
GRX130 —
90467-10161 Clip (FOR FRONT SEAT SIDE SHIELD)
2012-08 → —
GRX130 —
71849 — Cap, Seat Adjuster Cover, LH
71848-33010 Cap, Seat Adjuster Cover, LH
2011-12 → 2012-08 ended
GRX130 —
71848-33010 Cap, Seat Adjuster Cover, LH
2012-08 → —
GRX130 —
71862 — Shield, Front Seat Cushion, Inner LH
71862-22170-C0 note Shield, Front Seat Cushion, Inner LH
2011-12 → 2012-08 ended
GRX130 —
71862-22180-C0 note Shield, Front Seat Cushion, Inner LH
2011-12 → 2012-08 ended
GRX130 —
71862-22170-C0 note Shield, Front Seat Cushion, Inner LH
2012-08 → 2014-08 ended
GRX130 —
71862-22180-C0 note Shield, Front Seat Cushion, Inner LH
2012-08 → 2016-11 ended
GRX130 —
71867B — Clip(FOR FRONT SEAT CUSHION INNER SHIELD)
62217-12050 Clip(FOR FRONT SEAT CUSHION INNER SHIELD)
2011-12 → 2012-08 ended
GRX130 —
62217-12050 note Clip(FOR FRONT SEAT CUSHION INNER SHIELD)
2011-12 → 2012-08 ended
GRX130 —
71868A — Shield, Front Seat Cushion, Inner NO.1 LH
71868-60050-C0 note Shield, Front Seat Cushion, Inner NO.1 LH
2011-12 → 2012-08 ended
GRX130 —
71868-60050-C0 note Shield, Front Seat Cushion, Inner NO.1 LH
2012-08 → 2014-08 ended
GRX130 —
71875B — Cover, Reclining Adjuster Inside, RH
71875-47030-C0 note Cover, Reclining Adjuster Inside, RH
2011-12 → 2012-08 ended
GRX130 —
71875-60210-C0 note Cover, Reclining Adjuster Inside, RH
2011-12 → 2012-08 ended
GRX130 —
71875-47030-C0 note Cover, Reclining Adjuster Inside, RH
2012-08 → 2016-11 ended
GRX130 —
71875-60210-C0 note Cover, Reclining Adjuster Inside, RH
2012-08 → 2014-08 ended
GRX130 —
71876A — Cover, Reclining Adjuster Inside, LH
71876-47030-C0 note Cover, Reclining Adjuster Inside, LH
2011-12 → 2012-08 ended
GRX130 —
71876-60210-C0 note Cover, Reclining Adjuster Inside, LH
2011-12 → 2012-08 ended
GRX130 —
71876-47030-C0 note Cover, Reclining Adjuster Inside, LH
2012-08 → 2016-11 ended
GRX130 —
71876-60210-C0 note Cover, Reclining Adjuster Inside, LH
2012-08 → 2014-08 ended
GRX130 —
71910A — Headrest Assy, Front Seat
71910-22A40-C0 note Headrest Assy, Front Seat
2011-12 → 2012-08 ended
GRX130 —
71910-22A70-C0 note Headrest Assy, Front Seat
2011-12 → 2012-08 ended
GRX130 —
71910-22A50-C3 note Headrest Assy, Front Seat
2012-08 → 2016-11 ended
GRX130 —
71910-22A70-C3 note Headrest Assy, Front Seat
2012-08 → 2014-08 ended
GRX130 —
71931 — Support, Front Seat Headrest
71930-47020-C0 note Support, Front Seat Headrest
2011-12 → 2012-08 ended
GRX130 —
71931-47020-C0 note Support, Front Seat Headrest
2011-12 → 2012-08 ended
GRX130 —
71930-47020-C0 note Support, Front Seat Headrest
2012-08 → 2016-11 ended
GRX130 —
71931-47020-C0 note Support, Front Seat Headrest
2012-08 → 2016-11 ended
GRX130 —
72124 — Cover, Seat Track Bracket, Outer Front LH
72124-22080-C0 note Cover, Seat Track Bracket, Outer Front LH
2011-12 → 2012-08 ended
GRX130 —
72124-22080-C0 note Cover, Seat Track Bracket, Outer Front LH
2012-08 → 2016-11 ended
GRX130 —
72128A — Cover, Seat Track Bracket, Inner Front LH
72128-22100-C0 note Cover, Seat Track Bracket, Inner Front LH
2011-12 → 2012-08 ended
GRX130 —
72128-22100-C0 note Cover, Seat Track Bracket, Inner Front LH
2012-08 → 2016-11 ended
GRX130 —
72138 — Cover, Seat Track, Outer LH
72138-22110-C0 note Cover, Seat Track, Outer LH
2011-12 → 2012-08 ended
GRX130 —
72138-22110-C0 note Cover, Seat Track, Outer LH
2012-08 → 2016-11 ended
GRX130 —
72158 — Cover, Seat Track Bracket, Inner LH
72158-22110-C0 note Cover, Seat Track Bracket, Inner LH
2011-12 → 2012-08 ended
GRX130 —
72158-22110-C0 note Cover, Seat Track Bracket, Inner LH
2012-08 → 2016-11 ended
GRX130 —
73920A — Airbag Assy, Front Seat, LH
73920-22050 Airbag Assy, Front Seat, LH
2011-12 → 2012-08 ended
GRX130 —
73920-22050 Airbag Assy, Front Seat, LH
2012-08 → —
GRX130 —
87501B — Control Sub-assy, Seat Heater, LH
87501-60030 note Control Sub-assy, Seat Heater, LH
2011-12 → 2012-02 ended
GRX130 —
87501-60050 note Control Sub-assy, Seat Heater, LH
2012-03 → 2012-08 ended
GRX130 —
87501-60050 note Control Sub-assy, Seat Heater, LH
2012-08 → 2014-08 ended
GRX130 —
87510L — Heater Assy, Front Seat Cushion, LH
87510-22120 note Heater Assy, Front Seat Cushion, LH
2011-12 → 2012-08 ended
GRX130 —
87510-22120 note Heater Assy, Front Seat Cushion, LH
2012-08 → 2014-08 ended
GRX130 —
87510N — Heater Assy, Front Seatback, LH
87530-22010 note Heater Assy, Front Seatback, LH
2011-12 → 2012-08 ended
GRX130 —
87530-22010 note Heater Assy, Front Seatback, LH
2012-08 → 2014-08 ended
GRX130 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
