Toyota Mark X

2011-12 → 2016-11 · chassis GRX130 · catalogue 3113B0 · General

Supported model Data version 2017-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Disc Brake Caliper & Dust Cover

21 part groups · 2 illustrations

Illustrations

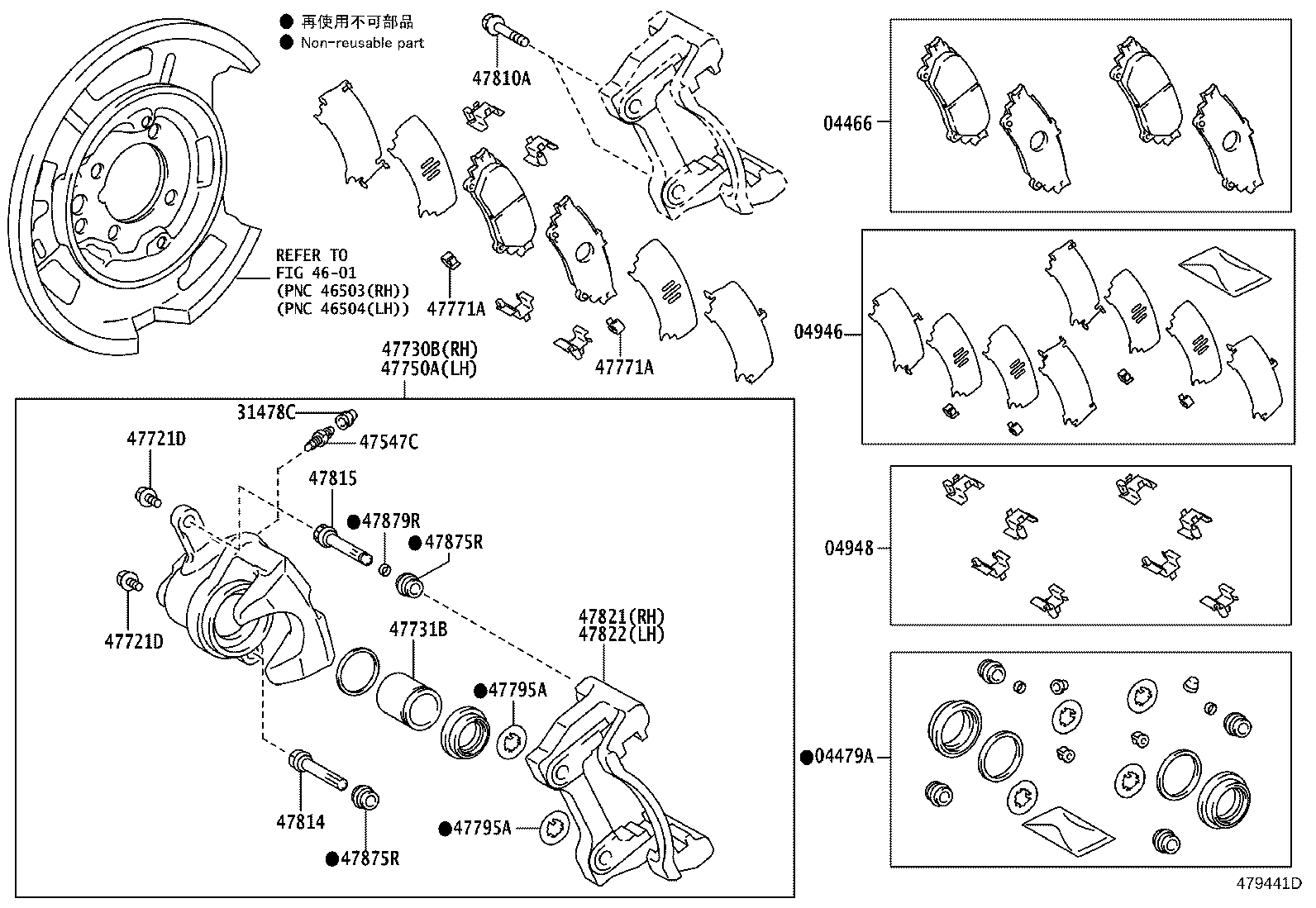

Figure 478161C 478161C 2011-12 → 2014-06 Figure 479441D 479441D 2014-06 → —

Part groups

PNCDescription
04466 Pad Kit, Disc Brake, Rear
04479A Cylinder Kit, Disc Brake, Rear
04946 Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
04948 Fitting Kit, Disc Brake, Rear
31478C Cap, Bleeder Plug(FOR REAR DISC BRAKE)
47547C Plug, Bleeder(FOR REAR DISC BRAKE)
47721D Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
47730B Cylinder Assy, Rear Disc Brake, RH
47731B Piston, Rear Disc Brake
47750A Cylinder Assy, Disc Brake, Rear LH
47769A Bush, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
47771A Plate, Pad Wear Indicator(FOR REAR DISC BRAKE)
47775D Boot, Bush Dust(FOR REAR DISC BRAKE)
47795A Plate, Rear Disc Brake Caliper, NO.1
47810A Bolt, Hexagon(FOR REAR CALIPER)
47814 Pin, Cylinder Slide, NO.1(FOR REAR DISC BRAKE)
47815 Pin, Rear Cylinder Slide, NO.2(FOR REAR DISC BRAKE)
47821 Mounting, Rear Disc Brake Cylinder, RH
47822 Mounting, Rear Disc Brake Cylinder, LH
47875R Boot, Bush Dust(FOR REAR DISC BRAKE)
47879R Bush, Cylinder Slide, NO.2(FOR REAR DISC BRAKE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
