Toyota Mark X

2011-12 → 2016-11 · chassis GRX130 · catalogue 3113B0 · General

Supported model Data version 2017-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

22 part groups · 2 illustrations

Illustrations

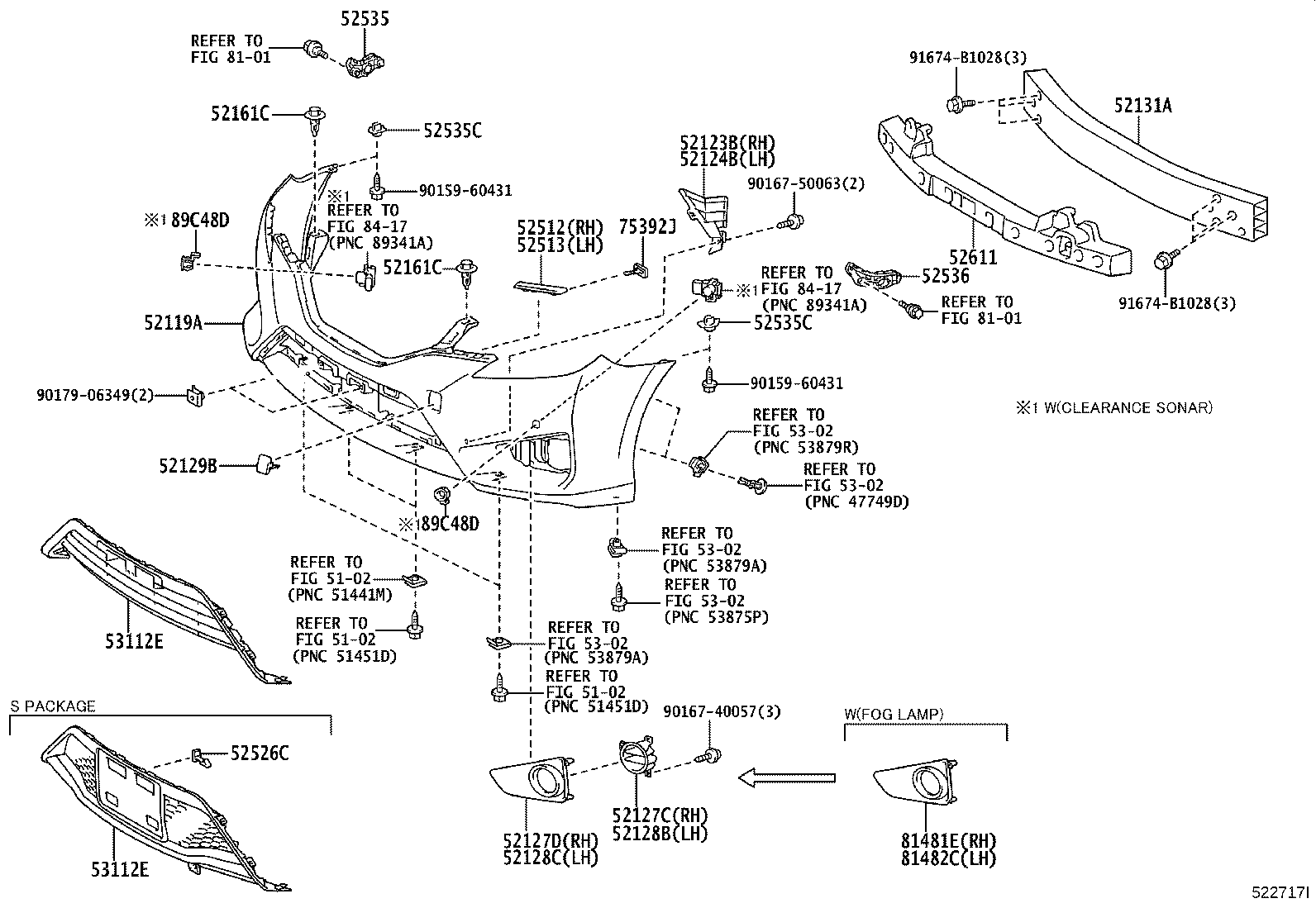

Figure 522590E 522590E 2011-12 → 2012-08 Figure 522717I 522717I 2012-08 → —

Part groups

PNCDescription
52119A Cover, Front Bumper
52123B Plate, Front Bumper Reinforcement, RH
52124B Plate, Front Bumper Reinforcement, LH
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52128C Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52161C Piece, Front Bumper
52512 Filler, Front Bumper, RH
52513 Filler, Front Bumper, LH
52526C Retainer, Front Bumper, Lower
52535 Retainer, Front Bumper Side, RH
52535C Retainer, Front Bumper Side
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
53112E Grille, Radiator, Lower NO.1
75392J Retainer, Outside Moulding
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
