Toyota Mark X

2011-12 → 2016-11 · chassis GRX130 · catalogue 3113B0 · General

Supported model Data version 2017-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

28 part groups · 2 illustrations

Illustrations

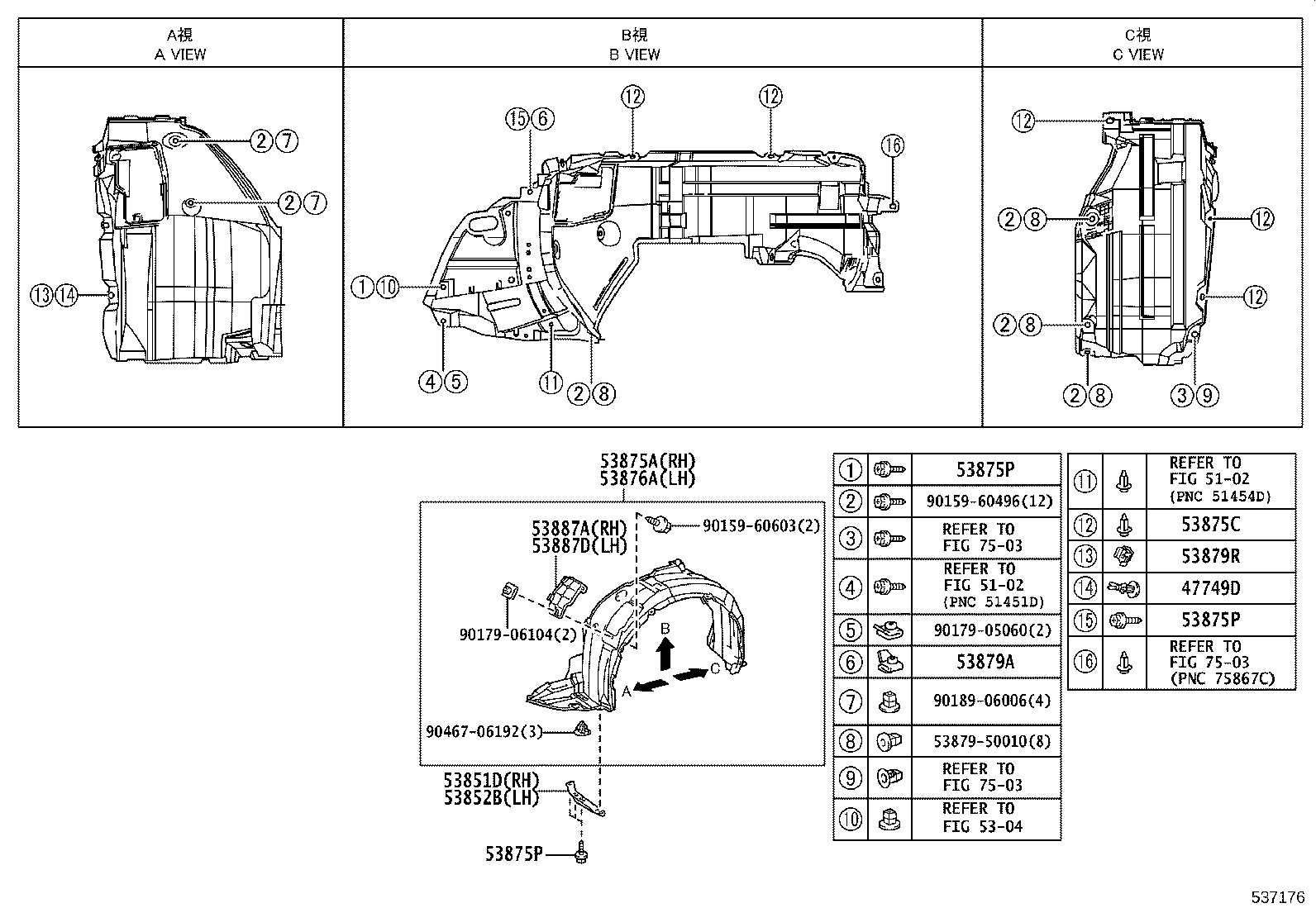

Figure 537175C 537175C 2011-12 → — Figure 537176 537176 2011-12 → —

Part groups

PNCDescription
47749D Clip, Pin Hold
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384B Cushion, Hood, Center
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53825A Protector, Front Fender, Upper RH
53826A Protector, Front Fender, Upper LH
53835C Bracket, Front Side Panel, RH
53836B Bracket, Front Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53863 Seal, Front Fender TO Door Hinge, Lower RH
53864 Seal, Front Fender TO Door Hinge, Lower LH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875P Screw, NO.1
53876A Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53879R Retainer, Front Fender Liner
53882B Seal, Front Fender, RH
53882N Clip(FOR FRONT FENDER SEAL)
53883B Seal, Front Fender, LH
53887A Seal, Front Fender Splash Shield, NO.1
53887D Seal, Front Fender Splash Shield, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
