Toyota Mark X
2011-12 → 2016-11 · chassis GRX130 · catalogue 3113B0 · General
Supported model
Data version 2017-05

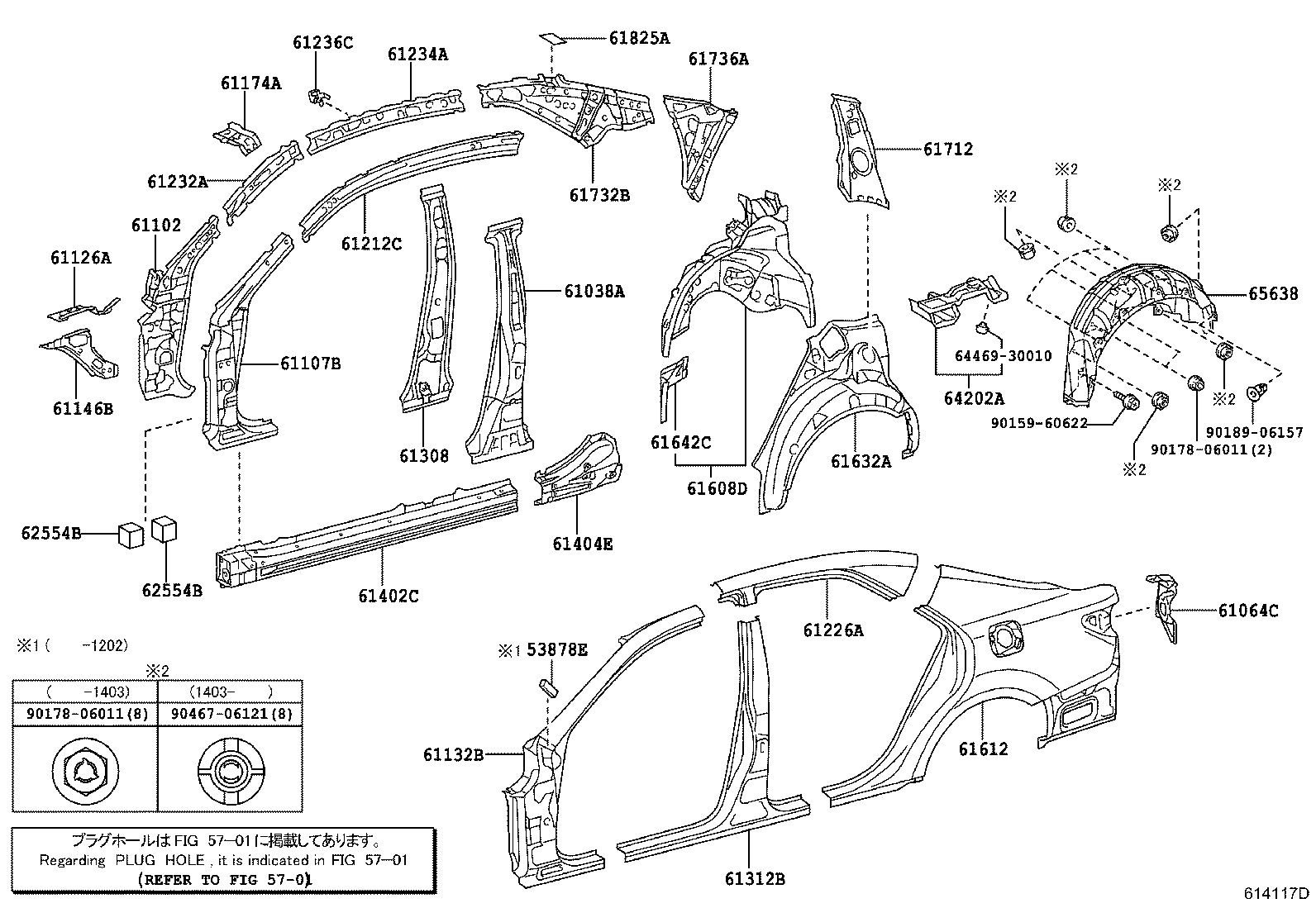

Side Member
55 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53878E | Spacer, Front Fender |
| 61037A | Reinforcement Sub-assy, Center Body Pillar, RH |
| 61038A | Reinforcement Sub-assy, Center Body Pillar, LH |
| 61063C | Trough Sub-assy, Luggage Door Opening, Front RH |
| 61064C | Trough Sub-assy, Luggage Door Opening, Front LH |
| 61101 | Panel Sub-assy, Cowl Side, RH |
| 61102 | Panel Sub-assy, Cowl Side, LH |
| 61106A | Reinforce Sub-assy, Front Body Pillar, Upper RH |
| 61107B | Reinforce Sub-assy, Front Body Pillar, Upper LH |
| 61125C | Reinforcement, Cowl Side Panel, RH |
| 61126A | Reinforcement, Cowl Side Panel, LH |
| 61131C | Pillar, Front Body, Outer RH |
| 61132B | Pillar, Front Body, Outer LH |
| 61145B | Gusset, Front Body Pillar, Lower RH |
| 61146B | Gusset, Front Body Pillar, Lower LH |
| 61173A | Reinforcement, Front Body Pillar, Upper Inner RH |
| 61174A | Reinforcement, Front Body Pillar, Upper Inner LH |
| 61211C | Rail, Roof Side, RH |
| 61212C | Rail, Roof Side, LH |
| 61225A | Rail, Roof Side Outer Upper NO.1, RH |
| 61226A | Rail, Roof Side Outer Upper NO.1, LH |
| 61231 | Rail, Roof Side, Inner RH |
| 61232A | Rail, Roof Side, Inner LH |
| 61233A | Rail, Roof Side, Inner NO.2 RH |
| 61234A | Rail, Roof Side, Inner NO.2 LH |
| 61235B | Bracket, Assist Grip |
| 61236C | Bracket, Assist Grip |
| 61307 | Pillar Sub-assy, Center Body, Inner RH |
| 61308 | Pillar Sub-assy, Center Body, Inner LH |
| 61311B | Pillar, Center Body, Outer RH |
| 61312B | Pillar, Center Body, Outer LH |
| 61401C | Panel Sub-assy, Rocker, Outer RH |
| 61402C | Panel Sub-assy, Rocker, Outer LH |
| 61403C | Reinforce Sub-assy, Rocker, Outer RH |
| 61404E | Reinforce Sub-assy, Rocker, Outer LH |
| 61607E | Panel, Quarter Wheel House, Inner RH |
| 61608D | Panel, Quarter Wheel House, Inner LH |
| 61611 | Panel, Quarter, RH |
| 61612 | Panel, Quarter, LH |
| 61631A | Panel, Quarter Wheel House, Outer RH |
| 61632A | Panel, Quarter Wheel House, Outer LH |
| 61641C | Gusset, Quarter Wheel House, Front RH |
| 61642C | Gusset, Quarter Wheel House, Front LH |
| 61711 | Panel, Roof Side, Outer RH |
| 61712 | Panel, Roof Side, Outer LH |
| 61731B | Panel, Roof Side, Inner RH |
| 61732B | Panel, Roof Side, Inner LH |
| 61735A | Panel, Roof Side, Inner Rear RH |
| 61736A | Panel, Roof Side, Inner Rear LH |
| 61825A | Plate, Noise Control, NO.2 |
| 62554B | Pad, Pillar, NO.4 |
| 64201B | Strainer Sub-assy, Package Tray TO Floor, RH |
| 64202A | Strainer Sub-assy, Package Tray TO Floor, LH |
| 65637 | Liner, Rear Wheel House, RH |
| 65638 | Liner, Rear Wheel House, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
