Toyota Mark X
2011-12 → 2016-11 · chassis GRX130 · catalogue 3113B0 · General
Supported model
Data version 2017-05
Roof Panel & Back Window Glass
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 61826B | Plate, Noise Control, NO.3 |
| 63102A | Panel Sub-assy, Windshield Header |
| 63111 | Panel, Roof |
| 63118 | Support, Roof Panel, RH |
| 63119 | Support, Roof Panel, LH |
| 63128 | Reinforcement, Roof Panel, NO.6 |
| 63132C | Panel, Windshield Header, Inner |
| 63133B | Frame, Back Window |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63148A | Reinforcement, Roof Panel, NO.7 |

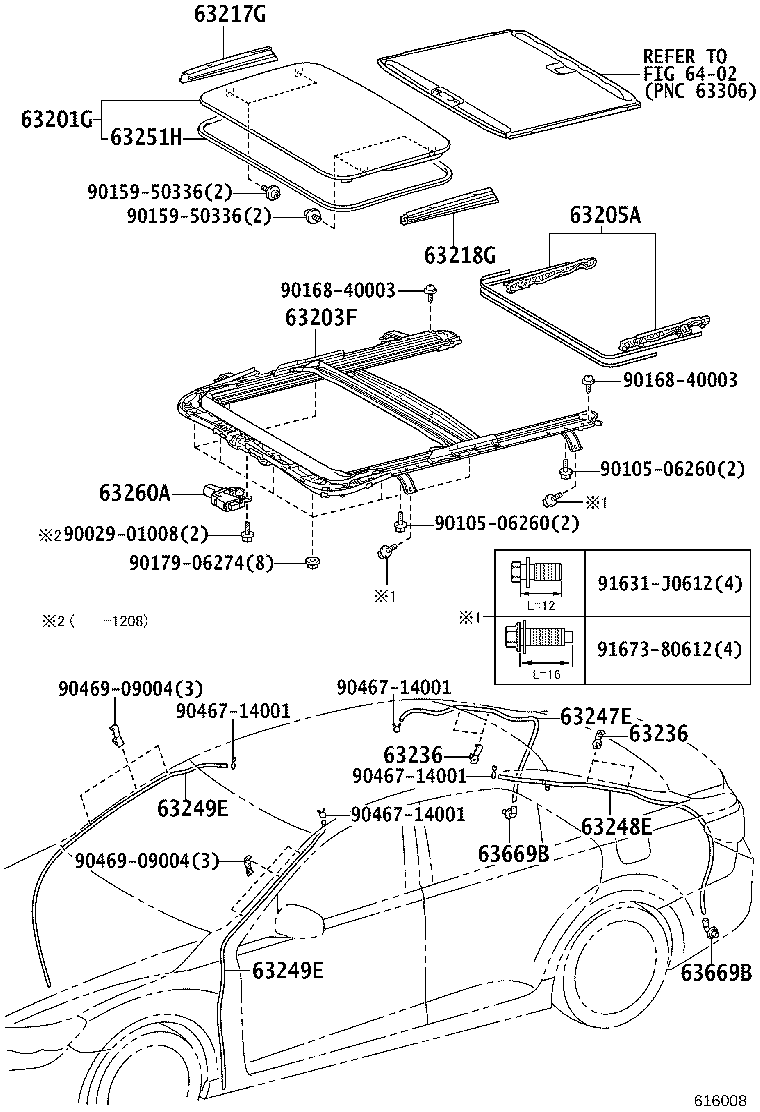

| 63201G | Glass Sub-assy, Sliding Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63205A | Cable Sub-assy, Sliding Roof Drive |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63236 | Clamp, Sliding Roof OR Removable Roof Drain Hose |
| 63247E | Hose, Sliding Roof Drain, Rear RH |
| 63248E | Hose, Sliding Roof Drain, Rear LH |
| 63249E | Hose, Sliding Roof Drain |
| 63251H | Weatherstrip, Sliding Roof |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63669B | Grommet, Sliding Roof Drain |
| 64101 | Panel Sub-assy, Upper Back |
| 64810 | Window Assy, Back |
| 64813D | Dam, Back Window Glass Adhesive |
| 64814C | Dam, Back Window Glass Adhesive, Lower |
| 64827 | Clip, Back Window Glass, RH |
| 64828C | Clip, Back Window Glass, LH |
| 75573F | Moulding, Back Window, Outside |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
