Toyota Mark X

2011-12 → 2016-11 · chassis GRX130 · catalogue 3113B0 · General

Supported model Data version 2017-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

19 part groups · 2 illustrations

Illustrations

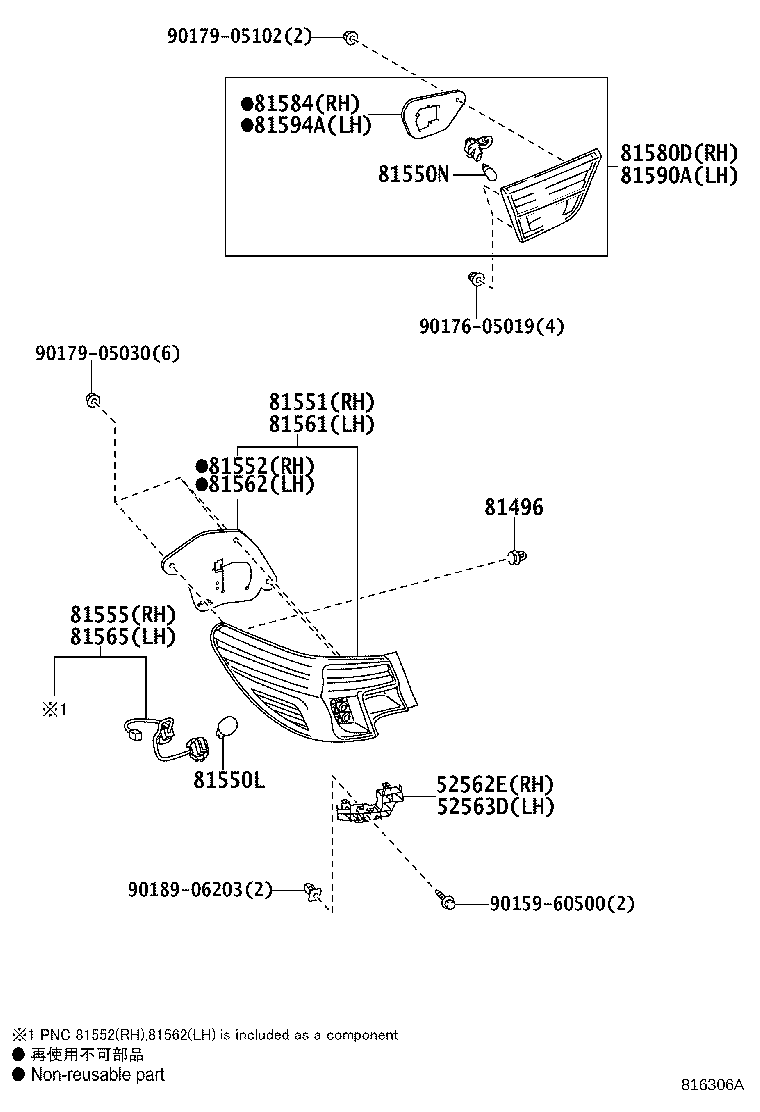

Figure 816018A 816018A 2011-12 → 2012-08 Figure 816306A 816306A 2012-08 → —

Part groups

PNCDescription
52562E Retainer, Rear Bumper, Upper RH
52563D Retainer, Rear Bumper, Upper LH
81496 Guide, Rear Combination Lamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81551 Lens, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81561 Lens, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81580D Lamp Assy, Rear, RH
81581C Lens And Body, Rear Lamp, RH
81584 Packing, Rear Lamp RH
81585C Socket & Wire, Rear Lamp, RH
81590A Lamp Assy, Rear, LH
81591C Lens, Rear Lamp, LH
81594A Gasket, Rear Lamp LH
81595 Socket & Wire, Rear Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
