Toyota Lexus SC430
2001-05 → 2010-07 · chassis UZZ40 · catalogue 321250 · General
Discontinued model
Data version 2011-01

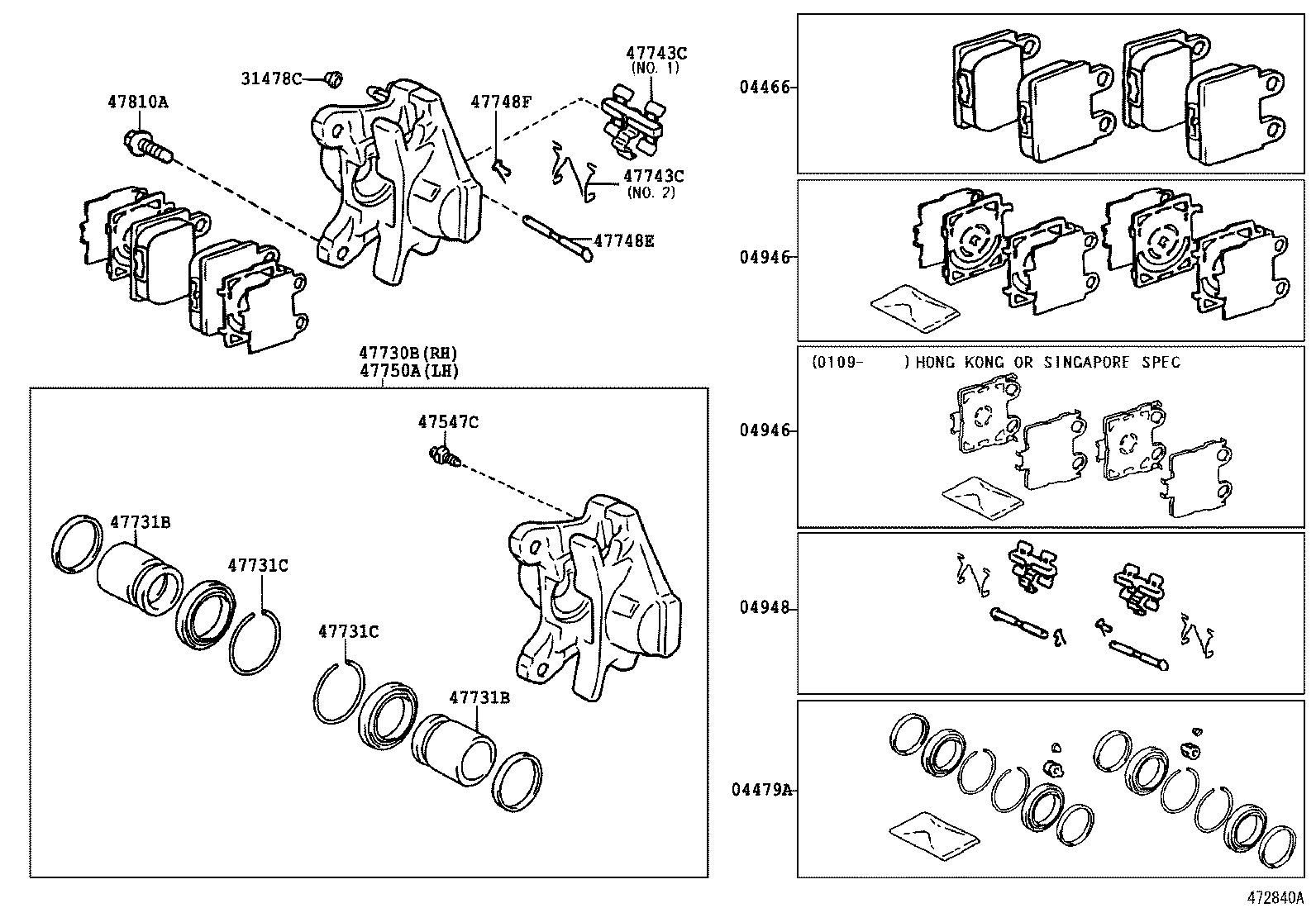

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04466 — Pad Kit, Disc Brake, Rear | ||||
| 04466-30161 note |
Pad Kit, Disc Brake, Rear
2001-05 → 2002-08
ended
|
UZZ40 RHD 5FC EUR | — | |
| 04466-30161 note |
Pad Kit, Disc Brake, Rear
2001-05 → 2002-08
ended
|
UZZ40 5FC ARL | — | |
| 04466-30170 note |
Pad Kit, Disc Brake, Rear
2002-08 → 2005-08
ended
|
UZZ40 ARL | — | |
| 04466-30170 note |
Pad Kit, Disc Brake, Rear
2002-08 → 2005-08
ended
|
UZZ40 RHD EUR | — | |
| 04466-30190 note |
Pad Kit, Disc Brake, Rear
2001-05 → 2005-08
ended
|
UZZ40 | — | |
| 04466-30170 note |
Pad Kit, Disc Brake, Rear
2005-08 → 2010-07
ended
|
UZZ40 RHD | — | |
| 04466-30170 note |
Pad Kit, Disc Brake, Rear
2007-08 → 2010-07
ended
|
UZZ40 LHD EUR | — | |
| 04466-30190 note |
Pad Kit, Disc Brake, Rear
2005-08 → 2010-07
ended
|
UZZ40 | — | |
| 04479A — Cylinder Kit, Disc Brake, Rear | ||||
| 04479-30221 note |
Cylinder Kit, Disc Brake, Rear
2001-05 → 2005-08
ended
|
UZZ40 ARL | — | |
| 04479-30221 note |
Cylinder Kit, Disc Brake, Rear
2001-05 → 2005-08
ended
|
UZZ40 RHD EUR | — | |
| 04479-30231 |
Cylinder Kit, Disc Brake, Rear
2001-05 → 2005-08
ended
|
UZZ40 | — | |
| 04479-30221 note |
Cylinder Kit, Disc Brake, Rear
2005-08 → —
|
UZZ40 RHD | — | |
| 04479-30221 note |
Cylinder Kit, Disc Brake, Rear
2007-08 → —
|
UZZ40 LHD EUR | — | |
| 04479-30231 |
Cylinder Kit, Disc Brake, Rear
2005-08 → —
|
UZZ40 | — | |
| 04946 — Shim Kit, Anti Squeal(FOR REAR DISC BRAKE) | ||||
| 04946-30071 |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2001-05 → 2005-08
ended
|
UZZ40 | — | |
| 04946-53010 note |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2001-09 → 2005-08
ended
|
UZZ40 RHD | — | |
| 04946-30071 |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2005-08 → —
|
UZZ40 | — | |
| 04946-53010 note |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2005-08 → —
|
UZZ40 RHD | — | |
| 04946-53010 note |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2007-08 → —
|
UZZ40 LHD EUR | — | |
| 04948 — Fitting Kit, Disc Brake, Rear | ||||
| 04948-30080 |
Fitting Kit, Disc Brake, Rear
2001-05 → 2005-08
ended
|
UZZ40 | — | |
| 04948-30080 |
Fitting Kit, Disc Brake, Rear
2005-08 → —
|
UZZ40 | — | |
| 31478C — Cap, Bleeder Plug(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2001-05 → 2005-08
ended
|
UZZ40 | — | |
| 31478-30010 |
Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2005-08 → —
|
UZZ40 | — | |
| 47547C — Plug, Bleeder(FOR REAR DISC BRAKE) | ||||
| 47547-27030 |
Plug, Bleeder(FOR REAR DISC BRAKE)
2001-05 → 2005-08
ended
|
UZZ40 | — | |
| 47547-27030 |
Plug, Bleeder(FOR REAR DISC BRAKE)
2005-08 → —
|
UZZ40 | — | |
| 47730B — Cylinder Assy, Rear Disc Brake, RH | ||||
| 47730-30410 note |
Cylinder Assy, Rear Disc Brake, RH
2001-05 → 2005-08
ended
|
UZZ40 ARL | — | |
| 47730-30410 note |
Cylinder Assy, Rear Disc Brake, RH
2001-05 → 2005-08
ended
|
UZZ40 RHD EUR | — | |
| 47730-53040 |
Cylinder Assy, Rear Disc Brake, RH
2001-05 → 2005-08
ended
|
UZZ40 | — | |
| 47730-30410 note |
Cylinder Assy, Rear Disc Brake, RH
2007-08 → —
|
UZZ40 LHD EUR | — | |
| 47730-30410 note |
Cylinder Assy, Rear Disc Brake, RH
2005-08 → —
|
UZZ40 RHD | — | |
| 47730-53040 |
Cylinder Assy, Rear Disc Brake, RH
2005-08 → —
|
UZZ40 | — | |
| 47731B — Piston, Rear Disc Brake | ||||
| 47731-30100 note |
Piston, Rear Disc Brake
2001-05 → 2005-08
ended
|
UZZ40 ARL | — | |
| 47731-30100 note |
Piston, Rear Disc Brake
2001-05 → 2005-08
ended
|
UZZ40 RHD EUR | — | |
| 47731-30190 |
Piston, Rear Disc Brake
2001-05 → 2005-08
ended
|
UZZ40 | — | |
| 47731-30100 note |
Piston, Rear Disc Brake
2005-08 → —
|
UZZ40 RHD | — | |
| 47731-30100 note |
Piston, Rear Disc Brake
2007-08 → —
|
UZZ40 LHD EUR | — | |
| 47731-30190 |
Piston, Rear Disc Brake
2005-08 → —
|
UZZ40 | — | |
| 47731C — Ring, Set(FOR REAR DISC BRAKE PISTON) | ||||
| 90520-52006 |
Ring, Set(FOR REAR DISC BRAKE PISTON)
2001-05 → 2005-08
ended
|
UZZ40 | — | |
| 90520-52006 |
Ring, Set(FOR REAR DISC BRAKE PISTON)
2005-08 → —
|
UZZ40 | — | |
| 47743C — Spring, Anti-squeal(FOR REAR DISC BRAKE) | ||||
| 47743-30030 note |
Spring, Anti-squeal(FOR REAR DISC BRAKE)
2001-05 → 2005-08
ended
|
UZZ40 | — | |
| 47743-30050 note |
Spring, Anti-squeal(FOR REAR DISC BRAKE)
2001-05 → 2005-08
ended
|
UZZ40 | — | |
| 47743-30030 note |
Spring, Anti-squeal(FOR REAR DISC BRAKE)
2005-08 → —
|
UZZ40 | — | |
| 47743-30050 note |
Spring, Anti-squeal(FOR REAR DISC BRAKE)
2005-08 → —
|
UZZ40 | — | |
| 47748E — Pin, W/Hole(FOR REAR DISC BRAKE) | ||||
| 47735-30011 |
Pin, W/Hole(FOR REAR DISC BRAKE)
2001-05 → 2005-08
ended
|
UZZ40 | — | |
| 47735-30011 |
Pin, W/Hole(FOR REAR DISC BRAKE)
2005-08 → —
|
UZZ40 | — | |
| 47748F — Clip(FOR REAR DISC BRAKE) | ||||
| 90468-12028 |
Clip(FOR REAR DISC BRAKE)
2001-05 → 2005-08
ended
|
UZZ40 | — | |
| 90468-12028 |
Clip(FOR REAR DISC BRAKE)
2005-08 → —
|
UZZ40 | — | |
| 47750A — Cylinder Assy, Disc Brake, Rear LH | ||||
| 47750-30410 note |
Cylinder Assy, Disc Brake, Rear LH
2001-05 → 2005-08
ended
|
UZZ40 ARL | — | |
| 47750-30410 note |
Cylinder Assy, Disc Brake, Rear LH
2001-05 → 2005-08
ended
|
UZZ40 RHD EUR | — | |
| 47750-53040 |
Cylinder Assy, Disc Brake, Rear LH
2001-05 → 2005-08
ended
|
UZZ40 | — | |
| 47750-30410 note |
Cylinder Assy, Disc Brake, Rear LH
2005-08 → —
|
UZZ40 RHD | — | |
| 47750-30410 note |
Cylinder Assy, Disc Brake, Rear LH
2007-08 → —
|
UZZ40 LHD EUR | — | |
| 47750-53040 |
Cylinder Assy, Disc Brake, Rear LH
2005-08 → —
|
UZZ40 | — | |
| 47810A — Bolt, Hexagon(FOR REAR CALIPER) | ||||
| 90105-12174 |
Bolt, Hexagon(FOR REAR CALIPER)
2001-05 → 2005-08
ended
|
UZZ40 | — | |
| 90105-12174 |
Bolt, Hexagon(FOR REAR CALIPER)
2005-08 → —
|
UZZ40 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
