Toyota Crown (CHINA)
2005-02 → 2009-11 · chassis GRS18# · catalogue 330210 · General
Supported model
Data version 2010-04

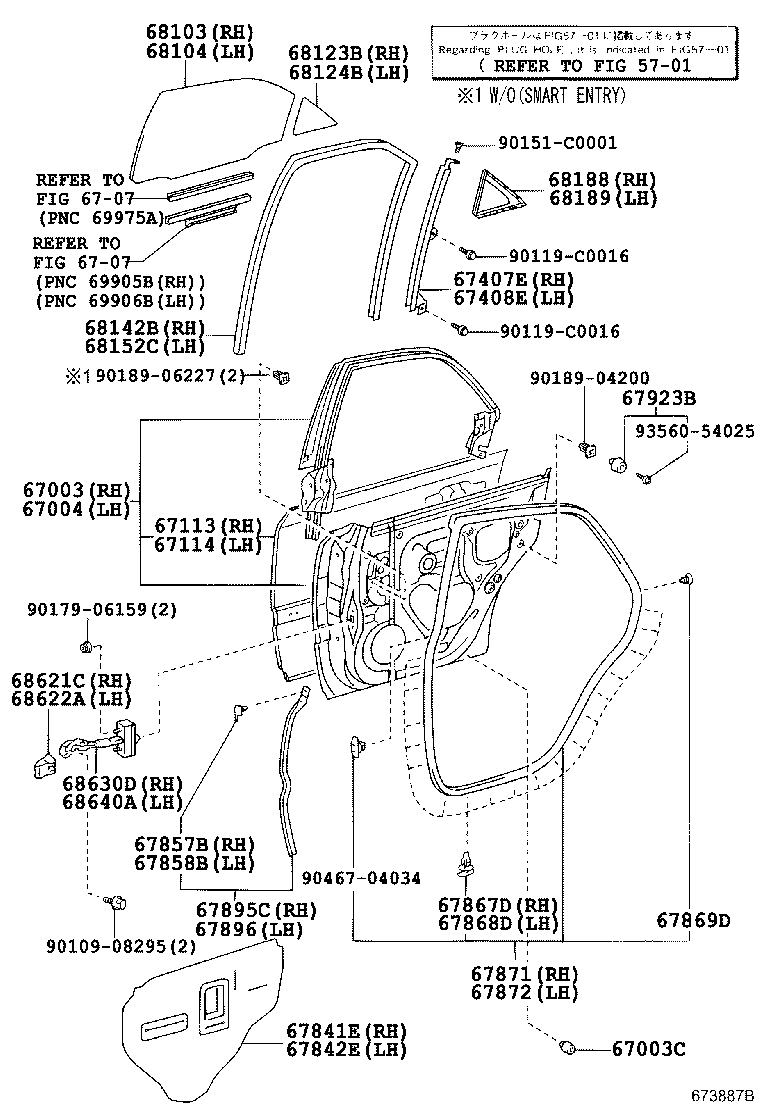

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67003 — Panel Sub-assy, Rear Door, RH | ||||
| 67003-0N010 |
Panel Sub-assy, Rear Door, RH
2005-02 → 2009-11
ended
|
GRS18# | — | |
| 67003C — Cushion, Rear Door Panel | ||||
| 90541-09069 |
Cushion, Rear Door Panel
2005-02 → —
|
GRS18# | — | |
| 67004 — Panel Sub-assy, Rear Door, LH | ||||
| 67004-0N010 |
Panel Sub-assy, Rear Door, LH
2005-02 → 2009-11
ended
|
GRS18# | — | |
| 67113 — Panel, Rear Door, Outer RH | ||||
| 67113-0N010 |
Panel, Rear Door, Outer RH
2005-02 → 2009-11
ended
|
GRS18# | — | |
| 67114 — Panel, Rear Door, Outer LH | ||||
| 67114-0N010 |
Panel, Rear Door, Outer LH
2005-02 → —
|
GRS18# | — | |
| 67407E — Bar Sub-assy, Rear Door Window Division, RH | ||||
| 67407-0N010 |
Bar Sub-assy, Rear Door Window Division, RH
2005-02 → —
|
GRS18# | — | |
| 67408E — Bar Sub-assy, Rear Door Window Division, LH | ||||
| 67408-0N010 |
Bar Sub-assy, Rear Door Window Division, LH
2005-02 → —
|
GRS18# | — | |
| 67841E — Cover, Rear Door Service Hole, RH | ||||
| 67841-0N010 |
Cover, Rear Door Service Hole, RH
2006-06 → —
|
GRS18# | — | |
| 67841-30410 |
Cover, Rear Door Service Hole, RH
2005-02 → 2006-06
ended
|
GRS18# | — | |
| 67842E — Cover, Rear Door Service Hole, LH | ||||
| 67842-0N010 |
Cover, Rear Door Service Hole, LH
2006-06 → —
|
GRS18# | — | |
| 67842-30270 |
Cover, Rear Door Service Hole, LH
2005-02 → 2006-06
ended
|
GRS18# | — | |
| 67857B — Protector, Rear Door Panel, RH | ||||
| 67857-30030 |
Protector, Rear Door Panel, RH
2005-02 → —
|
GRS18# | — | |
| 67858B — Protector, Rear Door Panel, LH | ||||
| 67858-30040 |
Protector, Rear Door Panel, LH
2005-02 → —
|
GRS18# | — | |
| 67867D — Retainer, Rear Door Weatherstrip, RH | ||||
| 67867-12150 |
Retainer, Rear Door Weatherstrip, RH
2005-02 → —
|
GRS18# | — | |
| 67868D — Retainer, Rear Door Weatherstrip, LH | ||||
| 67867-12150 |
Retainer, Rear Door Weatherstrip, LH
2005-02 → —
|
GRS18# | — | |
| 67869D — Clip, Door Weatherstrip | ||||
| 90467-05017-C0 note |
Clip, Door Weatherstrip
2005-02 → 2009-11
ended
|
GRS18# | — | |
| 67871 — Weatherstrip, Rear Door, RH | ||||
| 67871-0N010 |
Weatherstrip, Rear Door, RH
2005-02 → —
|
GRS18# | — | |
| 67872 — Weatherstrip, Rear Door, LH | ||||
| 67872-0N010 |
Weatherstrip, Rear Door, LH
2005-02 → —
|
GRS18# | — | |
| 67895C — Weatherstrip, Rear Door, NO.3 RH | ||||
| 67895-0N010 |
Weatherstrip, Rear Door, NO.3 RH
2005-02 → —
|
GRS18# | — | |
| 67896 — Weatherstrip, Rear Door, NO.3 LH | ||||
| 67896-0N010 |
Weatherstrip, Rear Door, NO.3 LH
2005-02 → —
|
GRS18# | — | |
| 67923B — Cushion, Rear Door Stiffener, NO.1 | ||||
| 67923-24030 |
Cushion, Rear Door Stiffener, NO.1
2005-02 → —
|
GRS18# | — | |
| 68103 — Glass Sub-assy, Rear Door, RH | ||||
| 68113-0N010 note |
Glass Sub-assy, Rear Door, RH
2005-02 → —
|
GRS18# | — | |
| 68104 — Glass Sub-assy, Rear Door, LH | ||||
| 68114-0N010 note |
Glass Sub-assy, Rear Door, LH
2005-02 → —
|
GRS18# | — | |
| 68123B — Glass, Rear Door Quarter Window, RH | ||||
| 68123-0N010 note |
Glass, Rear Door Quarter Window, RH
2005-02 → —
|
GRS18# | — | |
| 68124B — Glass, Rear Door Quarter Window, LH | ||||
| 68124-0N010 note |
Glass, Rear Door Quarter Window, LH
2005-02 → —
|
GRS18# | — | |
| 68142B — Run, Rear Door Window, RH | ||||
| 68142-0N010 |
Run, Rear Door Window, RH
2005-02 → 2005-10
ended
|
GRS182 | — | |
| 68142-0N011 |
Run, Rear Door Window, RH
2005-11 → —
|
GRS18# | — | |
| 68152C — Run, Rear Door Glass, LH | ||||
| 68152-0N010 |
Run, Rear Door Glass, LH
2005-02 → 2005-10
ended
|
GRS182 | — | |
| 68152-0N011 |
Run, Rear Door Glass, LH
2005-11 → —
|
GRS18# | — | |
| 68188 — Weatherstrip, Rear Door Quarter Window, RH | ||||
| 68188-0N010 |
Weatherstrip, Rear Door Quarter Window, RH
2005-02 → —
|
GRS18# | — | |
| 68189 — Weatherstrip, Rear Door Quarter Window, LH | ||||
| 68189-0N010 |
Weatherstrip, Rear Door Quarter Window, LH
2005-02 → —
|
GRS18# | — | |
| 68621C — Cover, Rear Door Check, RH | ||||
| 68621-33010 |
Cover, Rear Door Check, RH
2005-02 → —
|
GRS18# | — | |
| 68622A — Cover, Rear Door Check, LH | ||||
| 68622-33010 |
Cover, Rear Door Check, LH
2005-02 → —
|
GRS18# | — | |
| 68630D — Check Assy, Rear Door, RH | ||||
| 68630-0N010 |
Check Assy, Rear Door, RH
2005-02 → —
|
GRS18# | — | |
| 68640A — Check Assy, Rear Door, LH | ||||
| 68640-0N010 |
Check Assy, Rear Door, LH
2005-02 → —
|
GRS18# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
