Toyota Crown (CHINA)

2005-02 → 2009-11 · chassis GRS18# · catalogue 330210 · General

Supported model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

8 part groups · 3 illustrations

Illustrations

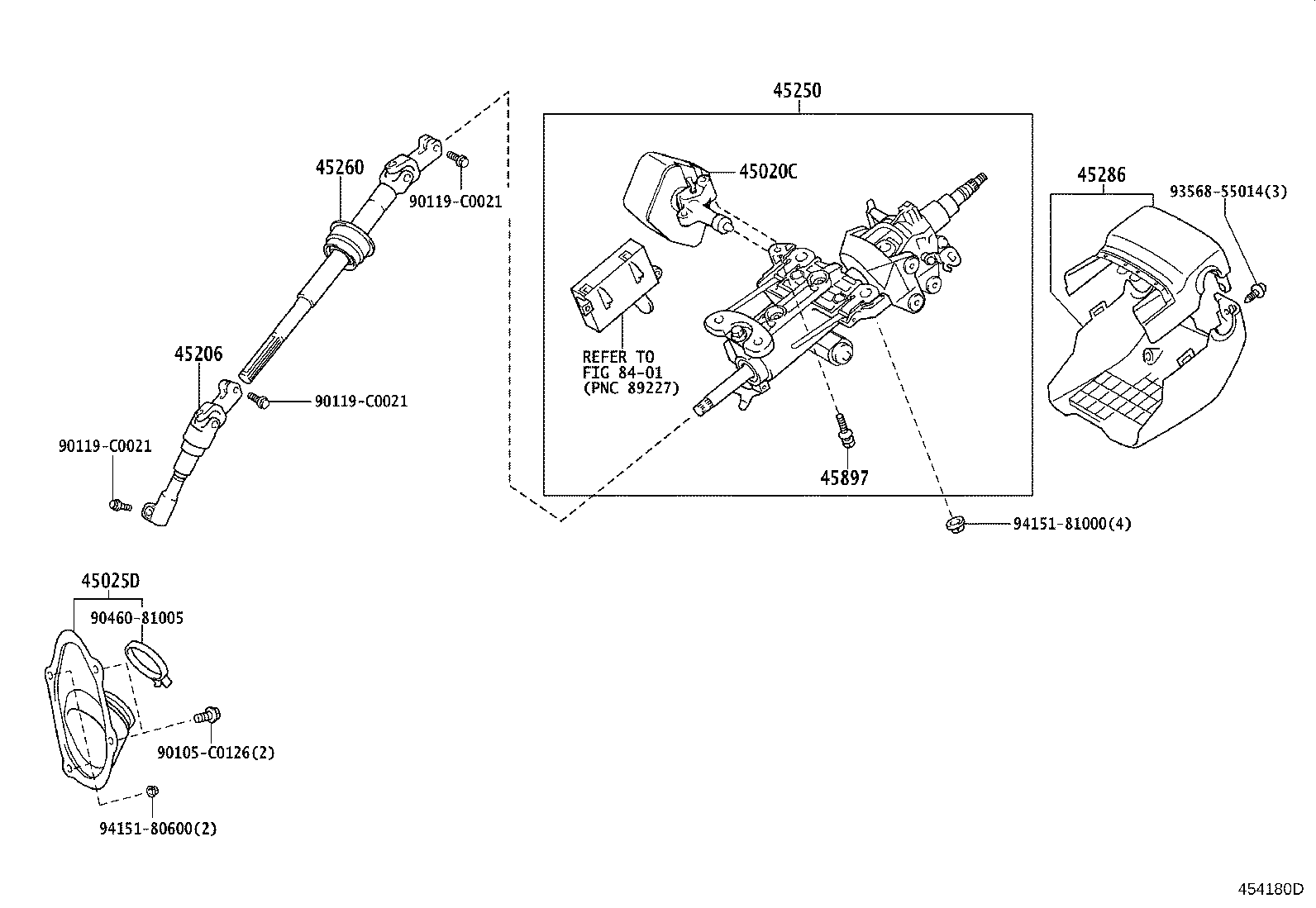

Figure 454168E 454168E 2005-02 → — Figure 454180D 454180D 2005-02 → — Figure 454180D 454180D 2008-04 → —

Part groups

PNCDescription
45020 Bracket Assy, Steering Column Upper W/Switch
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
45206 Yoke Sub-assy, Steering Sliding W/Shaft
45250 Column Assy, Steering
45260 Shaft Assy, Steering Intermediate, NO.2
45286 Cover, Steering Column
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
