Toyota Crown (CHINA)

2005-02 → 2009-11 · chassis GRS18# · catalogue 330210 · General

Supported model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Pedal & Bracket

4 part groups · 2 illustrations

Illustrations

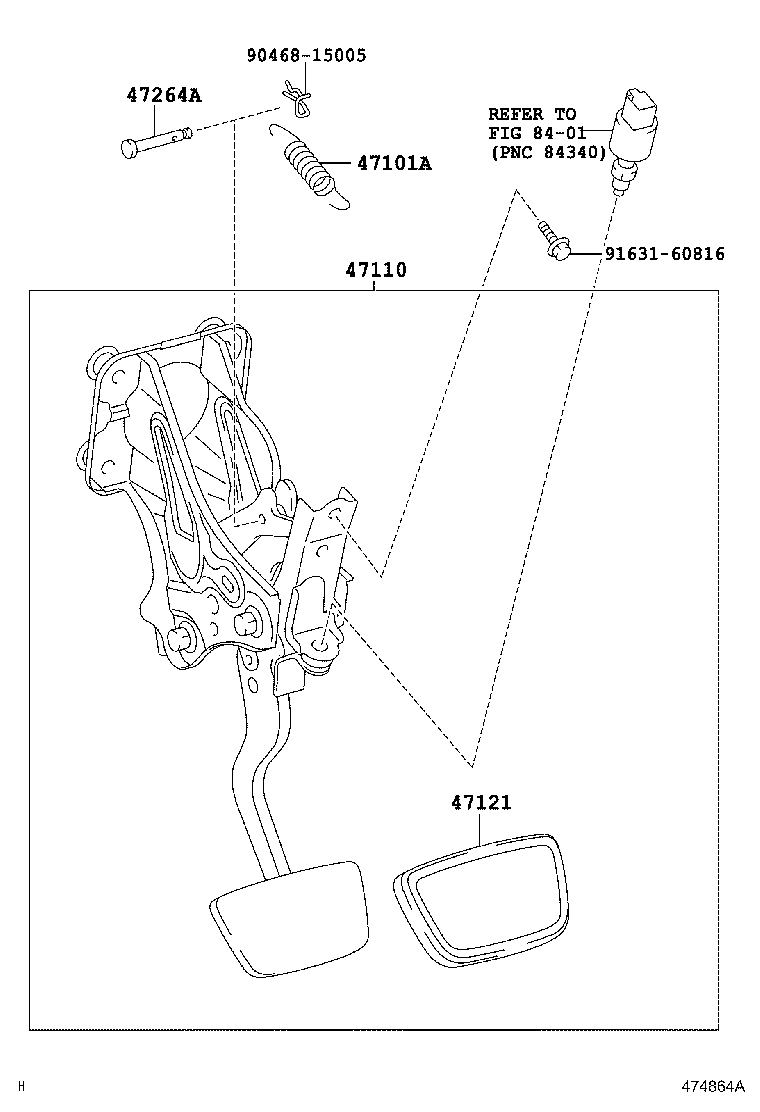

Figure 474494A 474494A 2005-02 → — Figure 474864A 474864A 2005-10 → —

Part groups

PNCDescription
47101A Spring(FOR BRAKE PEDAL RETURN)
47110 Support Assy, Brake Pedal
47121 Pad, Brake Pedal
47264A Pin(FOR PUSH ROD)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
