Toyota Crown (CHINA)

2005-02 → 2009-11 · chassis GRS18# · catalogue 330210 · General

Supported model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

24 part groups · 2 illustrations

Illustrations

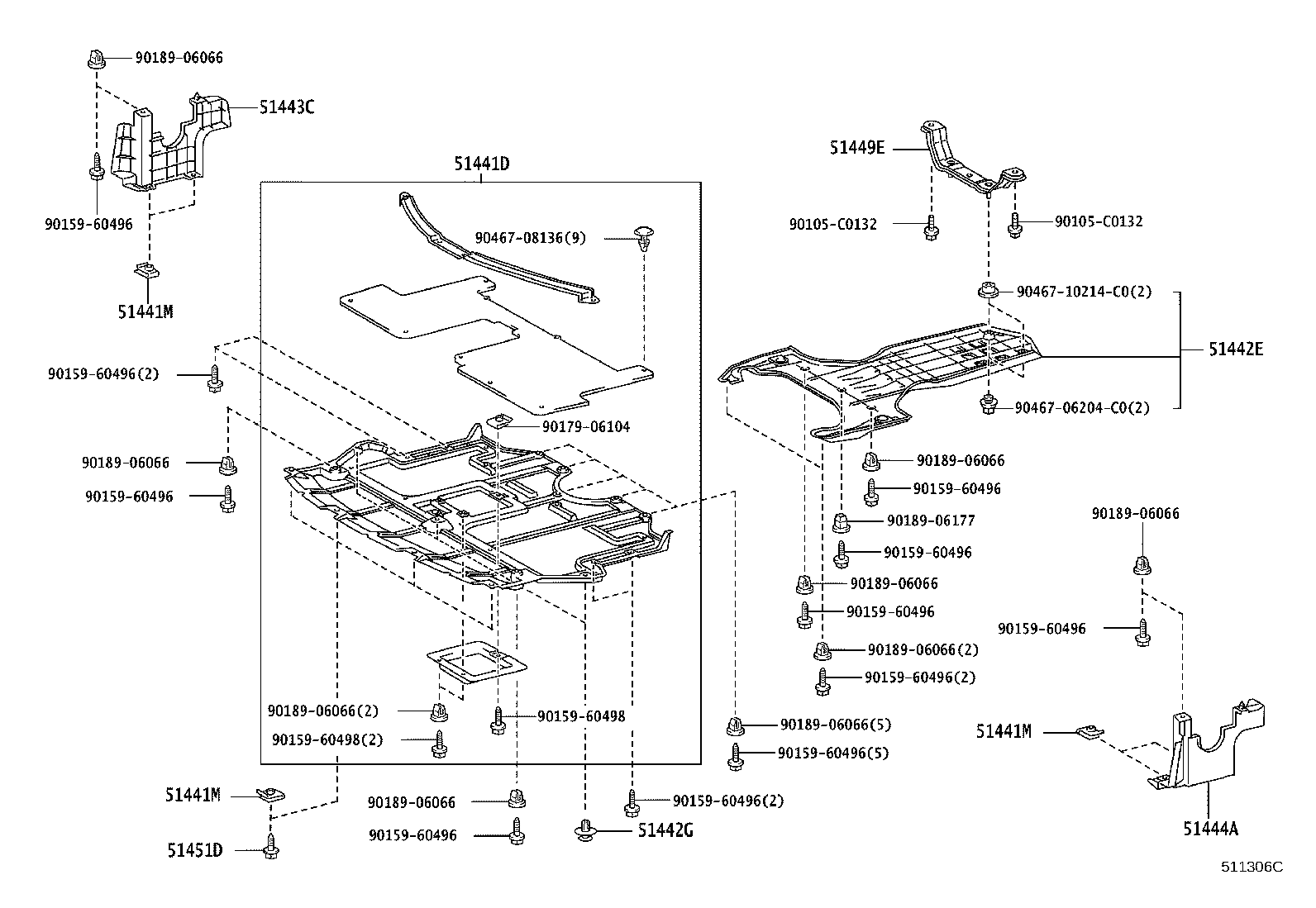

Figure 511305D 511305D 2005-02 → — Figure 511306C 511306C 2005-02 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51206A Member Sub-assy, Rear Suspension
51219 Protector, Front Suspension Member, Lwr
51441D Cover, Engine Under
51441M Nut
51442E Cover, Engine Under, NO.2
51442G Clip, Engine Under Cover, NO.1
51443C Cover, Engine Under, Rear RH
51444A Cover, Engine Under, Rear LH
51449E Bracket, Engine Under Cover Air Guide
51451D Screw, NO.1
51967B Hook, Transport, Rear RH
51968B Hook, Transport, Rear LH
52271D Cushion, Rear Suspension Member Body Mounting, Front
52273A Stopper, Rear Suspension Member, Lower RH
52274A Stopper, Rear Suspension Member, Lower LH
52275A Cushion, Rear Suspension Member Body Mounting, Rear
52277B Stopper, Rear Suspension Member, Rear Upper
52278C Stopper, Rear Suspension Member, Rear Lower
52283 Stopper, Differential Support Member, Lower
52285 Bolt, Differential Support Member Mounting, NO.1
52286 Bolt, Differential Support Member Mounting, NO.2
52295 Brace, Rear Suspension Member, RH
52296 Brace, Rear Suspension Member, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
