Toyota Crown (CHINA)

2005-02 → 2009-11 · chassis GRS18# · catalogue 330210 · General

Supported model Data version 2010-04

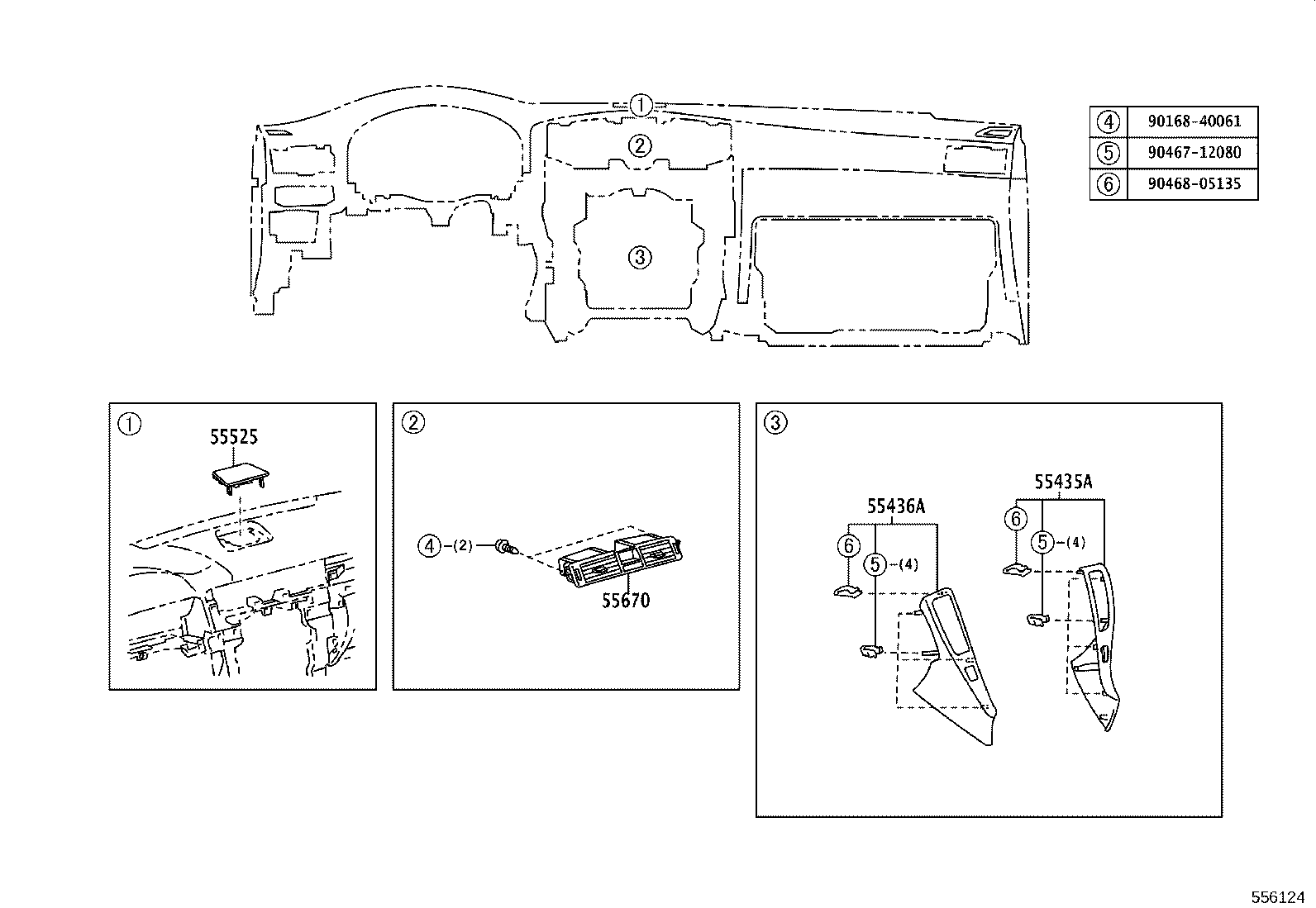

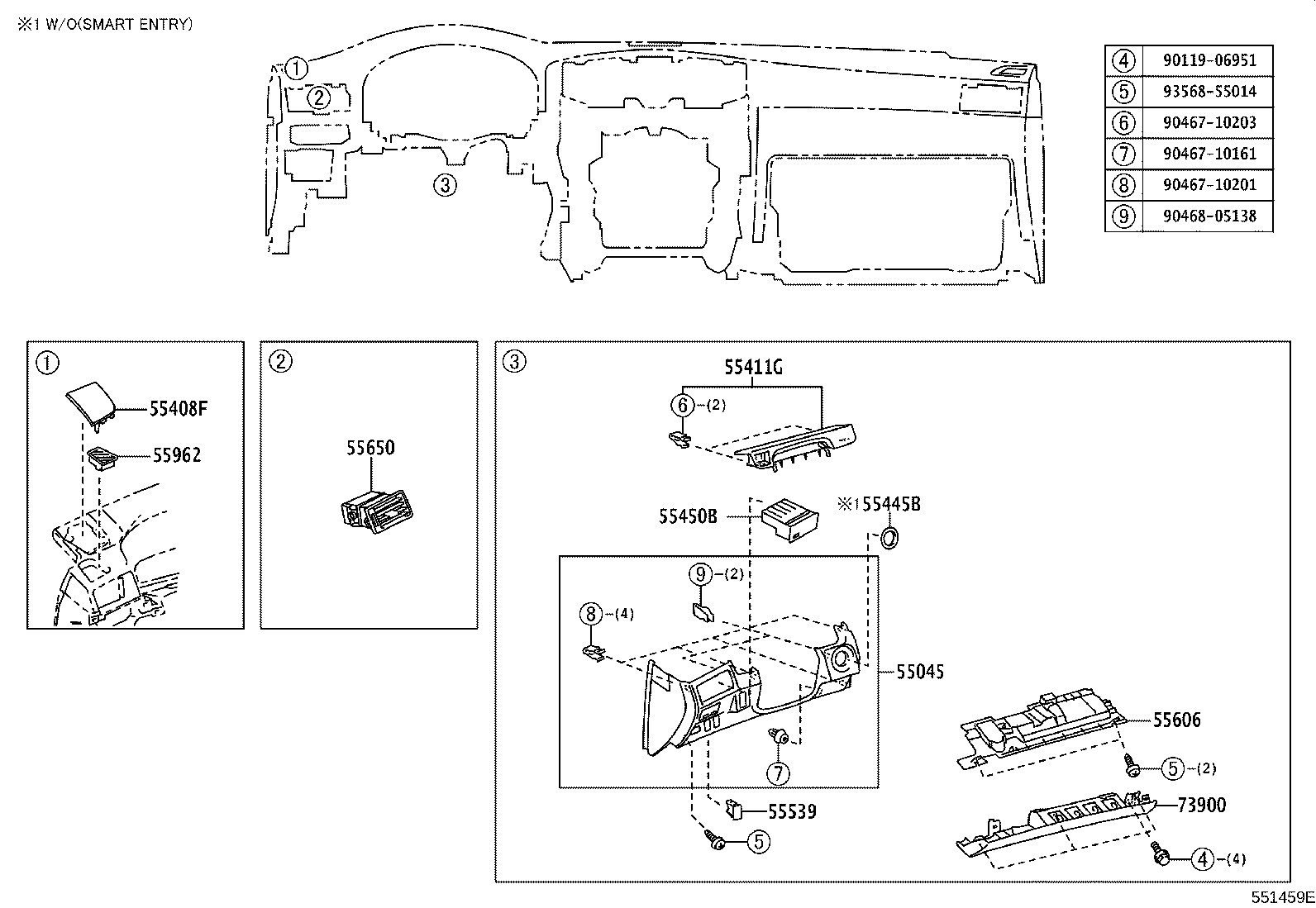

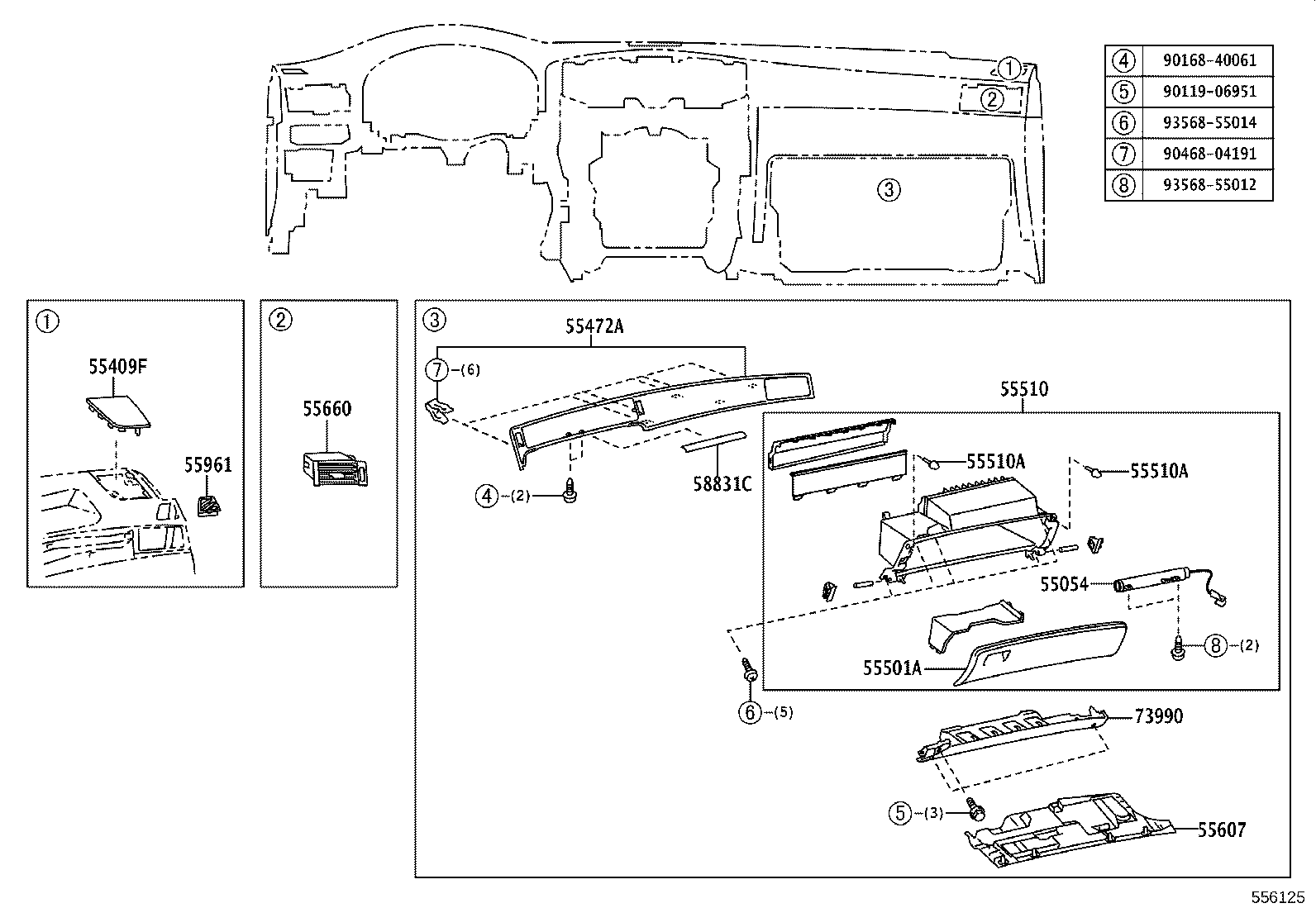

Instrument Panel & Glove Compartment

34 part groups · 4 illustrations

PNC	Description
55045	Panel Sub-assy, Instrument Panel Finish, Lower
55054	Stopper Sub-assy, Glove Compartment Door
55330B	Reinforcement Assy, Instrument Panel
55355	Cushion, Instrument Panel, NO.1
55374C	Bracket, Instrument Panel Lower Mounting, NO.1
55375B	Bracket, Instrument Panel Lower Mounting, NO.2
55401E	Pad Sub-assy, Instrument Panel Safety
55408F	Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F	Panel Sub-assy, Instrument Panel Speaker, NO.2
55411G	Panel, Instrument Cluster Finish, NO.1
55416A	Retainer, Meter Hood, NO.1
55417A	Retainer, Meter Hood, NO.2
55435A	Panel, Instrument Panel Finish, End RH
55436A	Panel, Instrument Panel Finish, End LH
55445B	Plate, Instrument Panel Finish
55450B	Box Assy, Coin
55472A	Moulding, Instrument Cluster, NO.2
55501A	Door Sub-assy, Glove Compartment
55510	Door Assy, Glove Compartment
55510A	Cushion(FOR GLOVE COMPARTMENT DOOR)
55525	Cover, Speaker Hole, NO.1
55539	Cover, Spare Switch Hole
55606	Cover Sub-assy, Instrument Panel Under, NO.1
55607	Cover Sub-assy, Instrument Panel Under, NO.2
55650	Register Assy, Instrument Panel, NO.1
55660	Register Assy, Instrument Panel, NO.2
55670	Register Assy, Instrument Panel, NO.3
55961	Nozzle, Side Defroster, NO.1
55962	Nozzle, Side Defroster, NO.2
58831C	Garnish, Console Upper Panel, Front
73900	Airbag Assy, Instrument Panel, Lower NO.1
73960A	Airbag Assy, Instrument Panel Passenger W/O Door
73990	Airbag Assy, Instrument Panel, Lower NO.2
82140	Wire Assy, Instrument Panel

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
