Toyota Crown (CHINA)
2005-02 → 2009-11 · chassis GRS18# · catalogue 330210 · General
Supported model
Data version 2010-04
Package Tray Panel & Luggage Compartment Mat

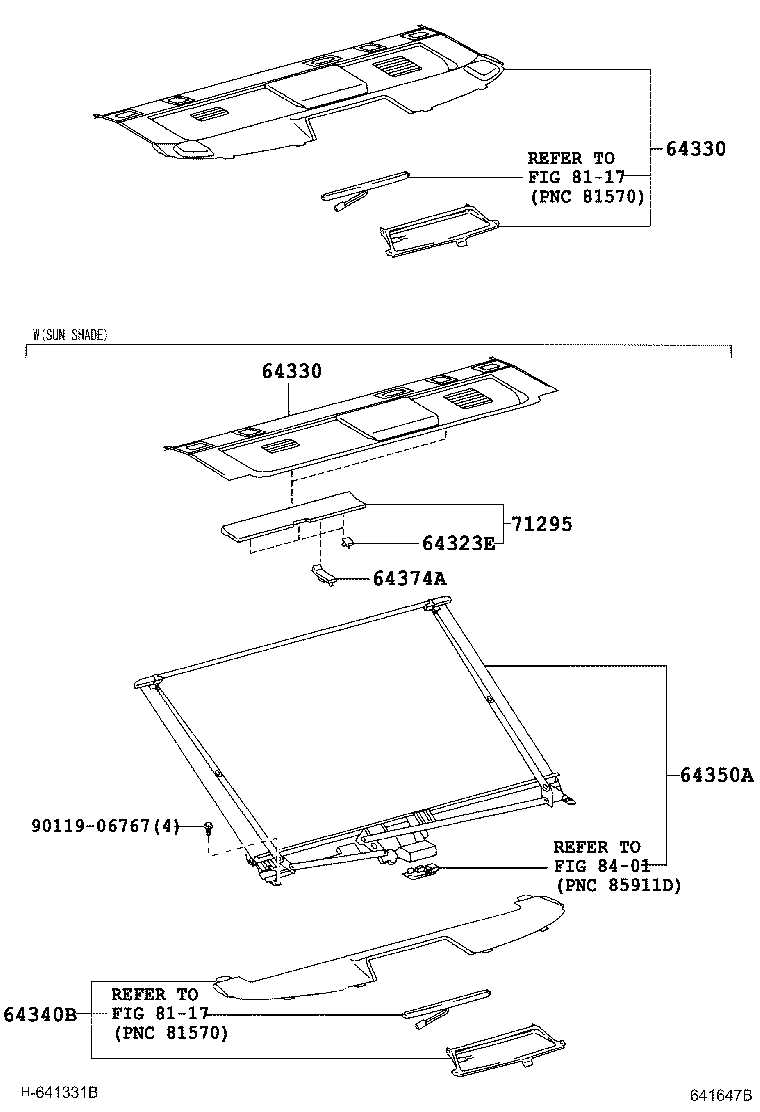

31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387 | Plate, Rear Floor Finish |
| 58460F | Striker Assy, Luggage Hold Belt |
| 58773B | Clip(FOR LUGGAGE COMPARTMENT SIDE COVER) |
| 64230C | Net Assy, Room Partition |
| 64273D | Pad, Room Partition, NO.1 |
| 64278B | Pad, Room Partition, NO.3 |
| 64323E | Clamp, Package Tray Trim |
| 64330 | Panel Assy, Package Tray Trim |
| 64334A | Pad, Package Tray Trim |
| 64340B | Panel Assy, Package Tray Trim, NO.2 |
| 64350A | Shade Assy, Rear Window |
| 64374A | Support, Package Tray Trim |
| 64711 | Mat, Luggage Compartment Floor |
| 64712C | Clip(FOR LUGGAGE COMPARTMENT TRIM COVER) |
| 64714D | Cover, Luggage Compartment Trim, Side, RH |
| 64714G | Clip(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER) |
| 64715D | Cover, Luggage Compartment Trim, Side, LH |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64718B | Cover, Luggage Trim Service Hole |
| 64719A | Cover, Luggage Compartment Door |
| 64719B | Clip(FOR LUGGAGE COMPARTMENT DOOR) |
| 64721 | Cover, Luggage Compartment Trim, Inner RH |
| 64721A | Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) |
| 64721B | Cover, Luggage Compartment Trim, NO.1 |
| 64722 | Cover, Luggage Compartment Trim, Inner LH |
| 64725D | Hook, Luggage Compartment Trim, NO.1 |
| 64726F | Hook, Luggage Compartment Trim, NO.2 |
| 66310D | Hook Assy, Rope |
| 71295 | Plate, Rear Seatback, Upper RH |
| 74649 | Grip, Luggage Compartment Door Assist |
| 75201A | Box, Tool |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
