Toyota Crown (CHINA)

2005-02 → 2009-11 · chassis GRS18# · catalogue 330210 · General

Supported model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

15 part groups · 2 illustrations

Illustrations

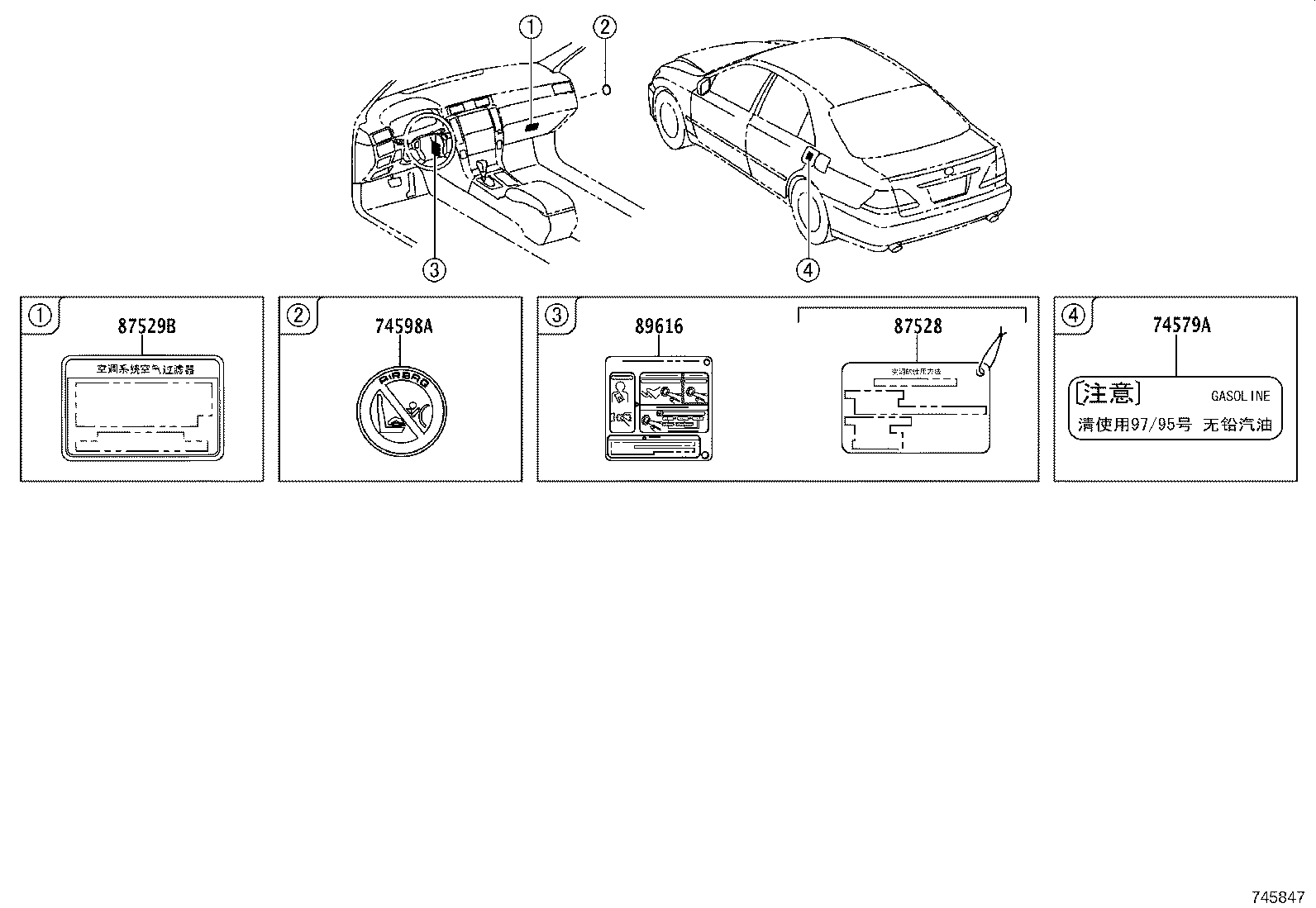

Figure 741600F 741600F 2005-02 → — Figure 745847 745847 2005-02 → —

Part groups

PNCDescription
11291B Plate, Engine Name
11295B Label, Engine Service Notice, NO.1
11296C Label, Engine Service Information
16793E Label, Cooling Fan Caution
69339C Label, Child Protector Information
74515A Plate, Theft Warning
74571 Plate, Brake Fluid Caution
74579A Label, Unleaded Fuel Information
74596A Label, Side Airbag Caution
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
87528 Label, Air Conditioner Information
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
89616 Label, Push Start Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
