Toyota Crown (CHINA)
2005-02 → 2009-11 · chassis GRS18# · catalogue 330210 · General
Supported model
Data version 2010-04
Wiring & Clamp
45 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|

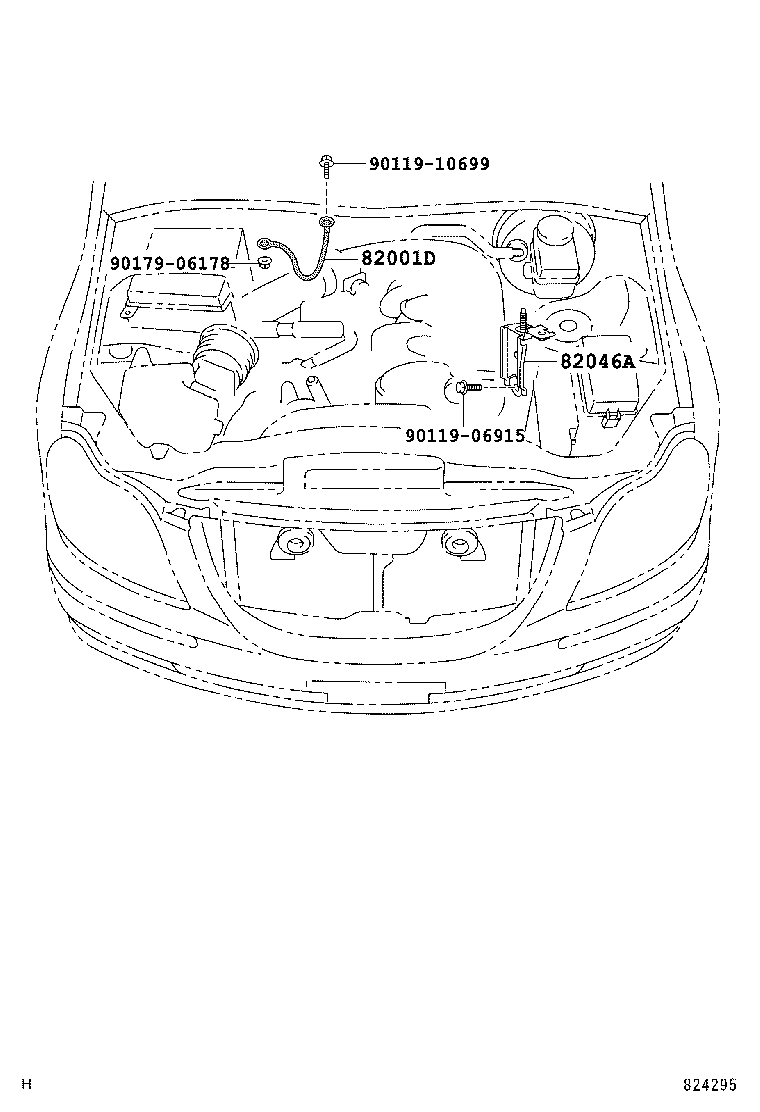

| 82001D | Cable, Bond, NO.3 |
| 82046A | Wire Sub-assy, Body Ground, NO.1 |

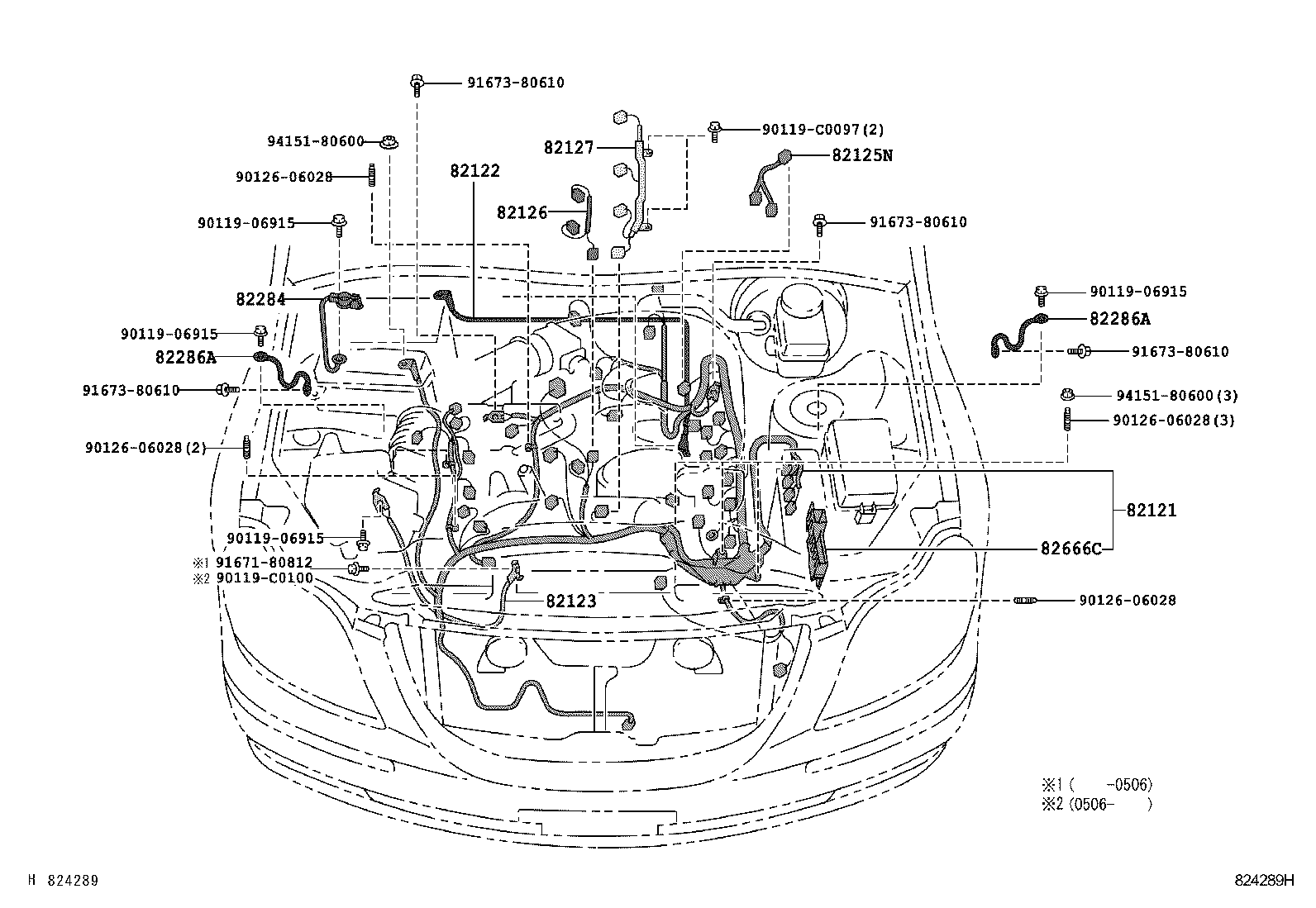

| 82111 | Wire, Engine Room Main |
| 82112 | Wire, Engine Room, NO.2 |
| 82113 | Wire, Engine Room, NO.3 |

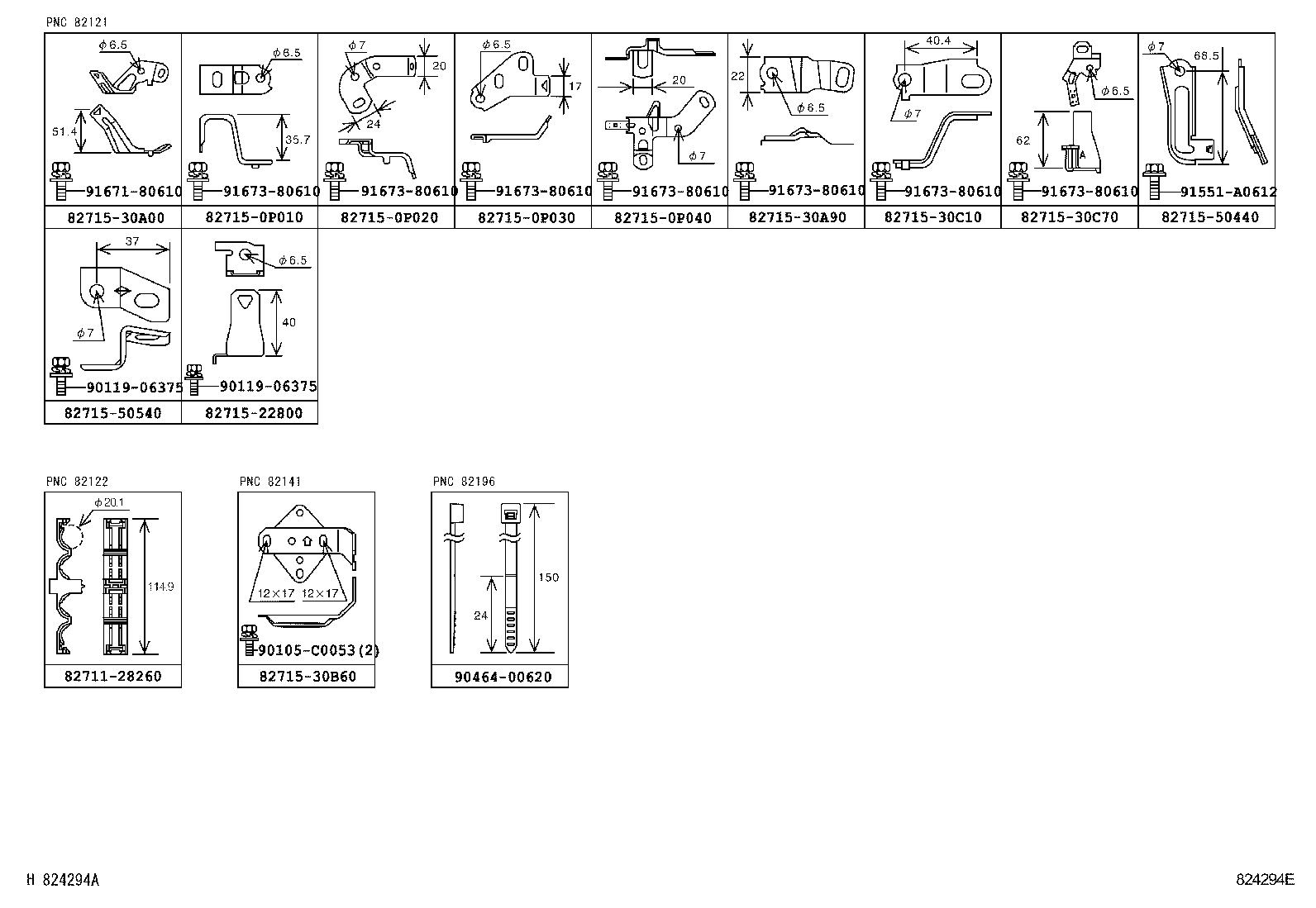

| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82123 | Wire, Engine, NO.3 |
| 82125N | Wire, Engine, NO.5 |
| 82126 | Wire, Engine |
| 82127 | Wire, Differential |

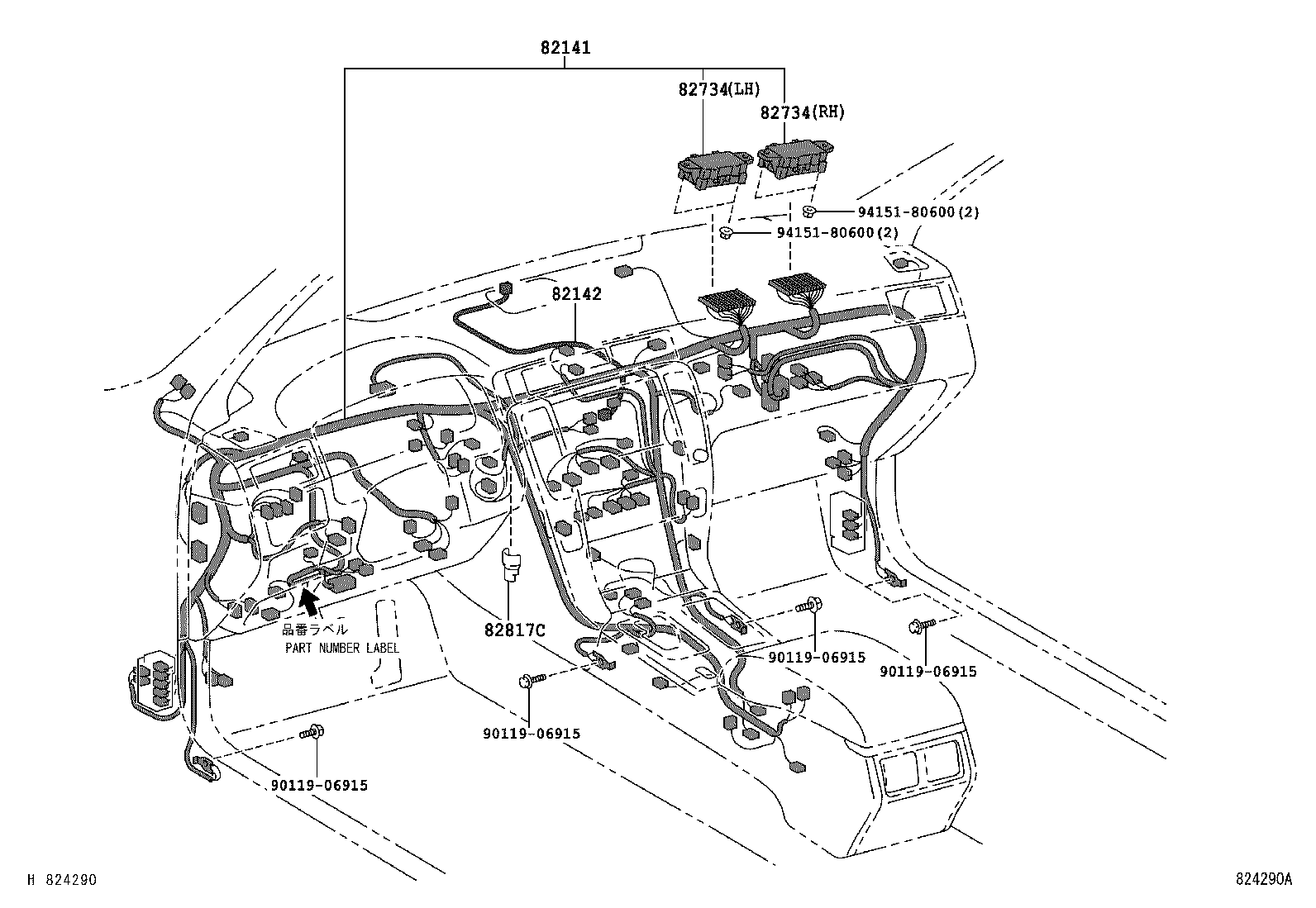

| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |

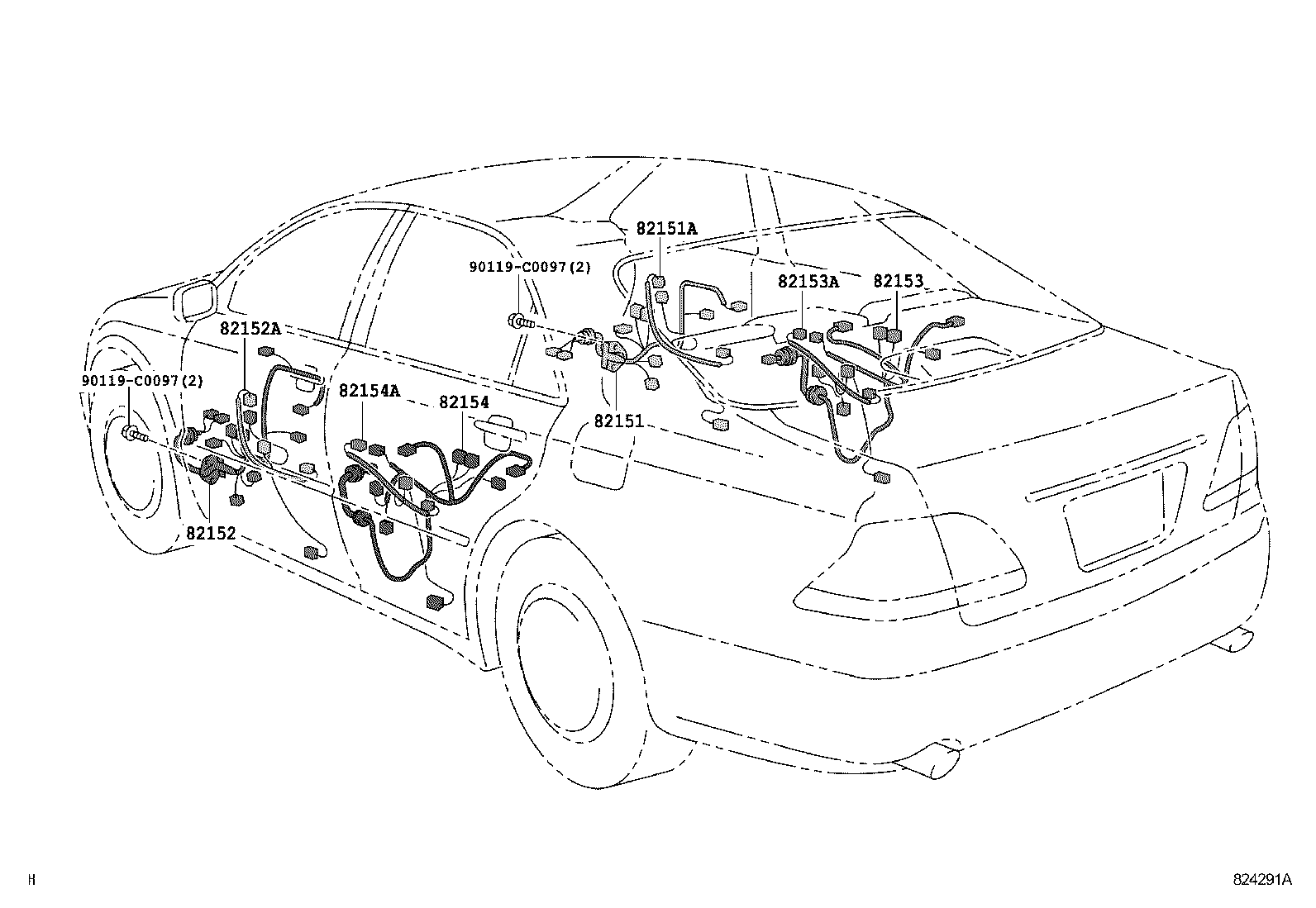

| 82151 | Wire, Front Door, RH |
| 82151A | Wire, Front Door, NO.2, RH |
| 82152 | Wire, Front Door, LH |
| 82152A | Wire, Front Door, NO.2, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82153A | Wire, Rear Door, RH |
| 82154 | Wire, Rear Door, NO.2 |
| 82154A | Wire, Rear Door, LH |

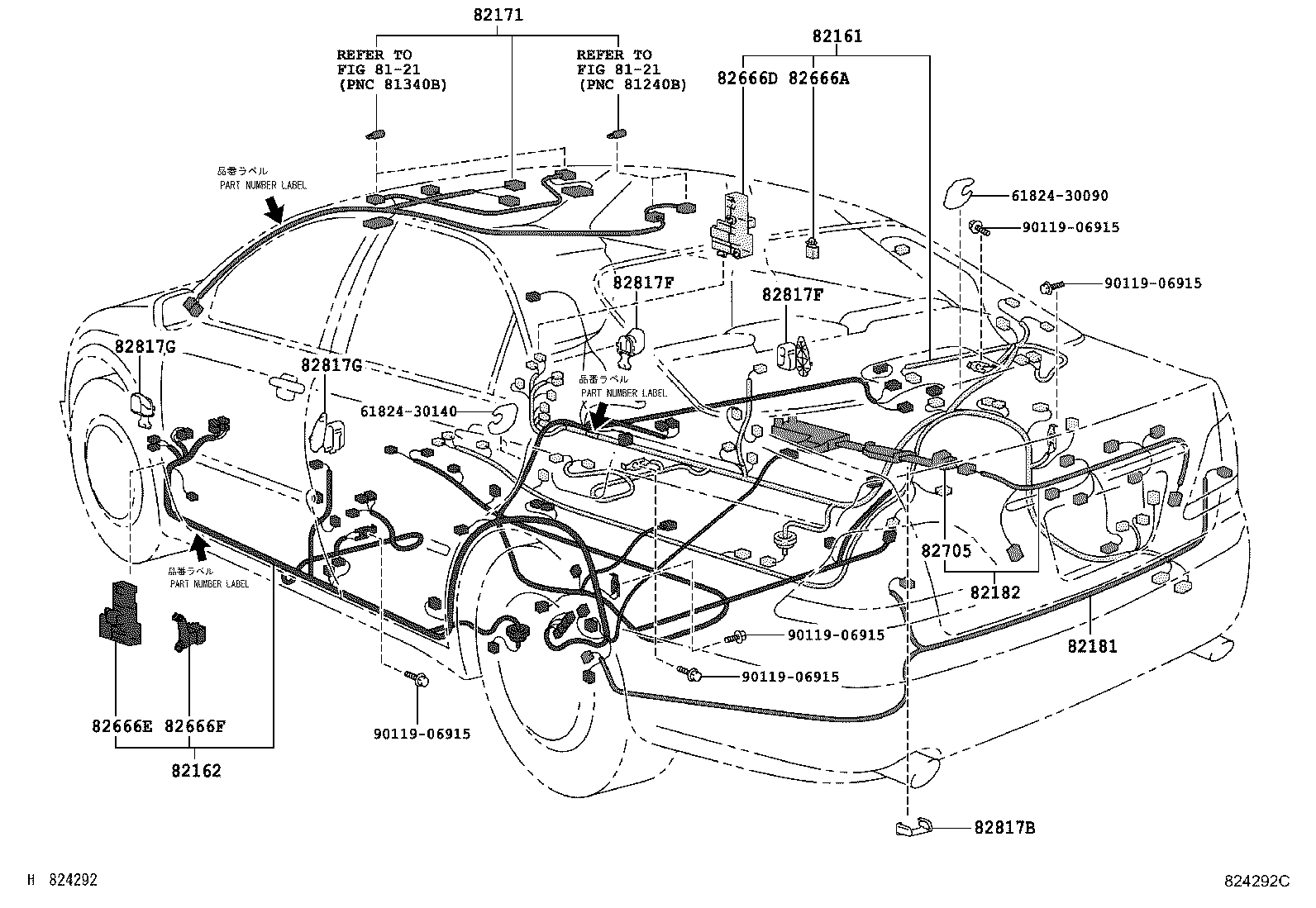

| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82171 | Wire, Roof, NO.1 |
| 82181 | Wire, Luggage Room, NO.1 |
| 82182 | Wire, Luggage Room, NO.2 |

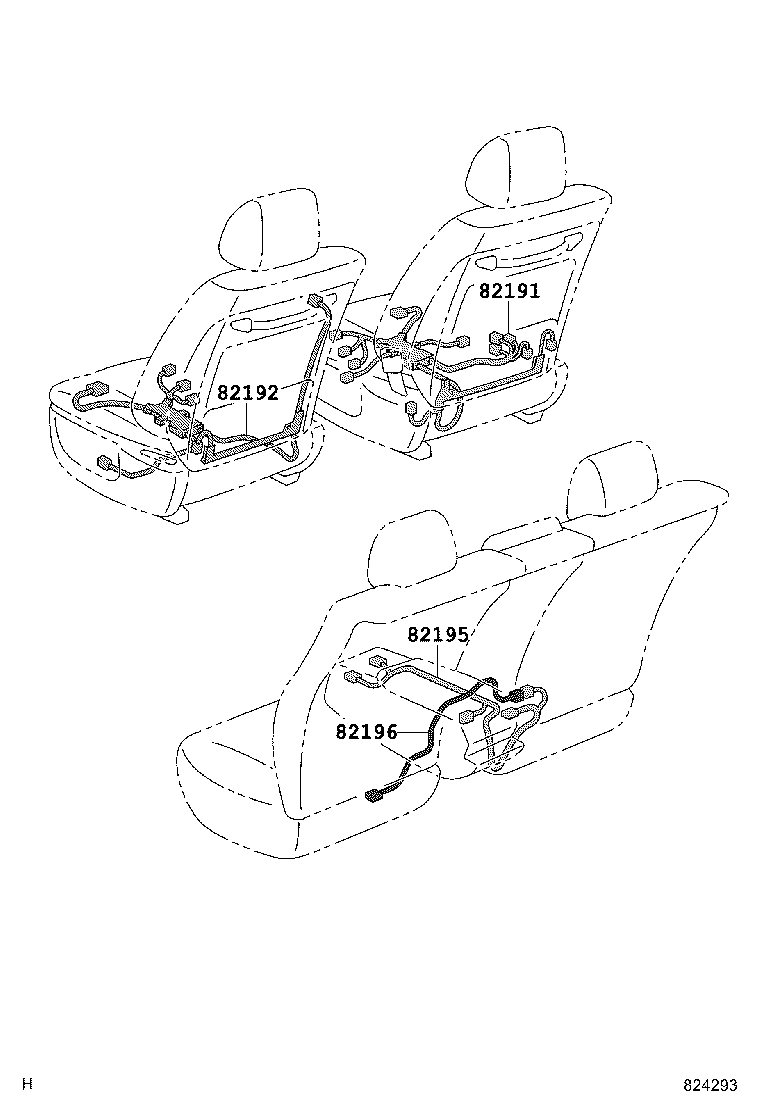

| 82191 | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 82195 | Wire, Rear Seat, RH NO.2 |
| 82196 | Wire, Rear Seat, LH NO.2 |
| 82284 | Wire, Earth |
| 82286A | Wire, Earth, NO.2 |
| 82666A | Holder, Connector NO.2 |
| 82666C | Holder, Connector NO.4 |
| 82666D | Holder, Connector NO.5 |
| 82666E | Holder, Connector NO.6 |
| 82666F | Holder, Connector NO.7 |
| 82671 | Block, Junction |
| 82705 | Spool Sub-assy, Wiring Harness |
| 82734 | Block, Center Junction |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 89656A | Wire, Power Steering Earth |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
