Toyota Crown (CHINA)

2005-02 → 2009-11 · chassis GRS18# · catalogue 330210 · General

Supported model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

13 part groups · 2 illustrations

Illustrations

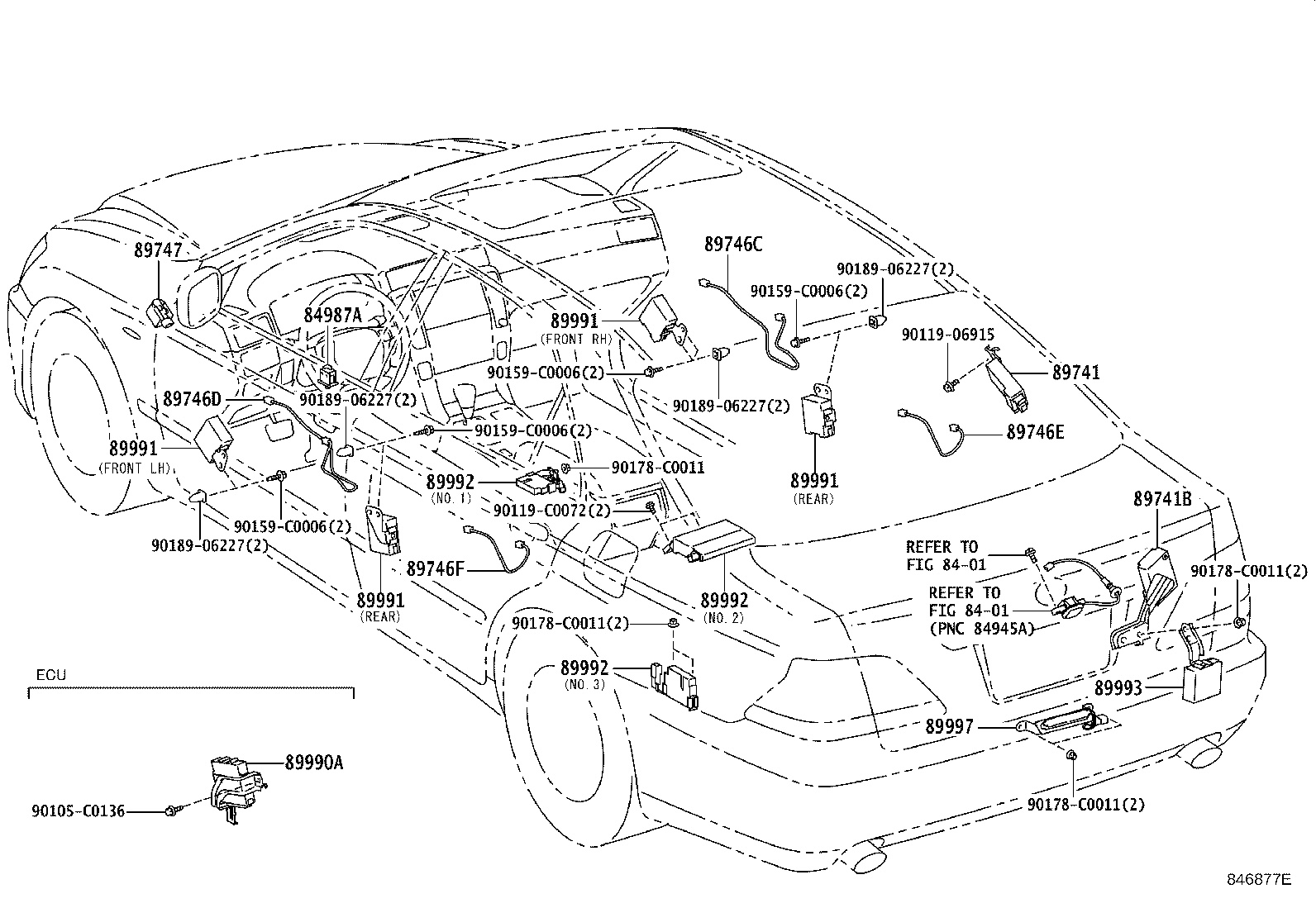

Figure 846876A 846876A 2005-02 → — Figure 846877E 846877E 2005-02 → —

Part groups

PNCDescription
84987A Switch, Keyless Entry Cancel
89741 Receiver, Door Control
89741B Receiver, Door Control, NO.2
89746C Harness, Electrical Key Wire, NO.1
89746D Harness, Electrical Key Wire, NO.2
89746E Harness, Electrical Key Wire, NO.3
89746F Harness, Electrical Key Wire, NO.4
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
89991 Oscillator, Door Electrical Key
89992 Oscillator, Indoor Electrical Key
89993 Oscillator, Luggage Electrical Key
89997 Antenna, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
