Toyota Crown (CHINA)

2005-02 → 2009-11 · chassis GRS18# · catalogue 330210 · General

Supported model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

12 part groups · 2 illustrations

Illustrations

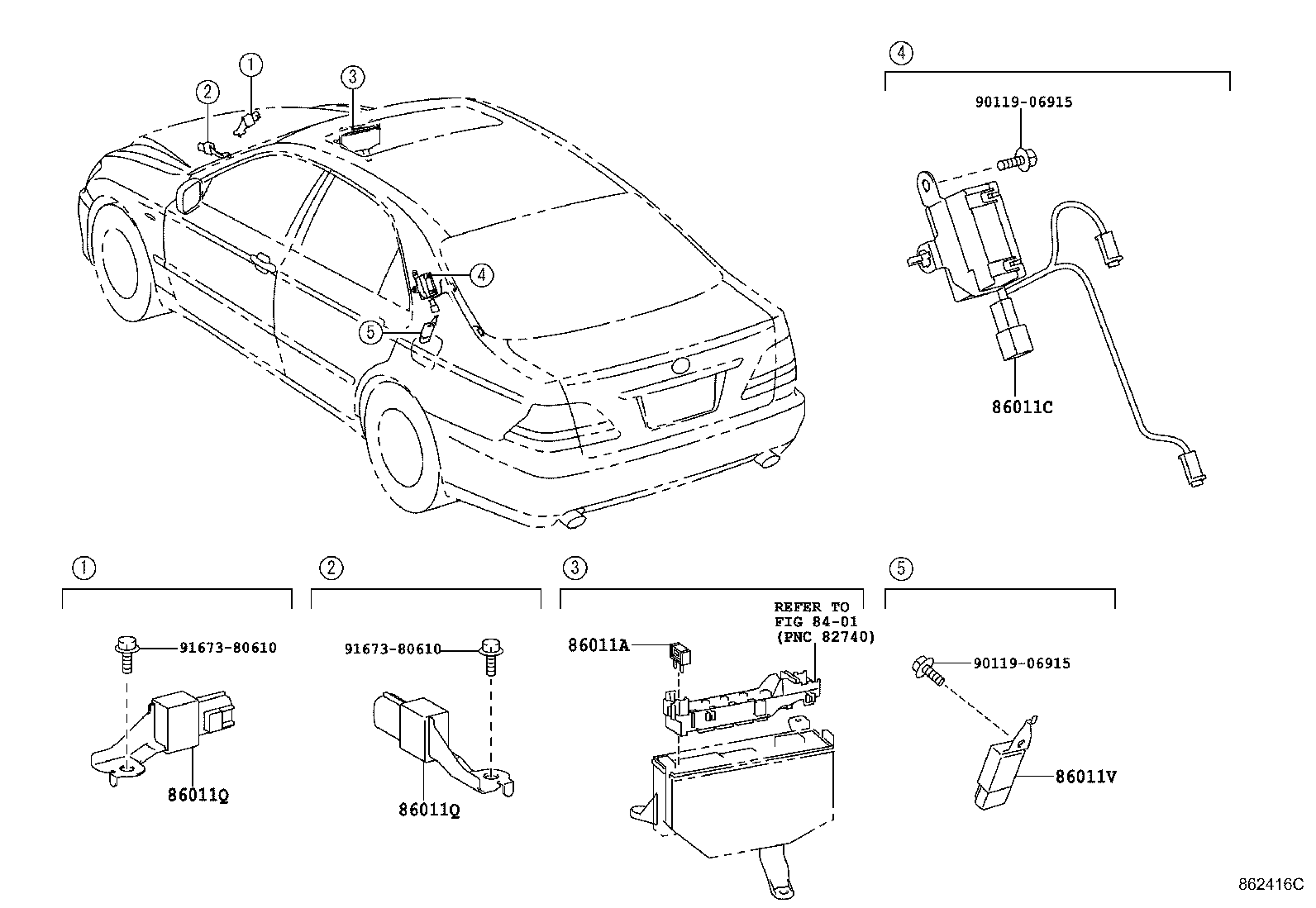

Figure 862415A 862415A 2005-02 → — Figure 862416C 862416C 2005-02 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86011Q Condenser, Radio Setting
86011V Condenser, Radio Setting
86120 Receiver Assy, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86221A Panel, Radio Receiver
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
86287B Cover, Amplifier
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
