Toyota Crown (CHINA)
2005-02 → 2009-11 · chassis GRS18# · catalogue 330210 · General
Supported model
Data version 2010-04

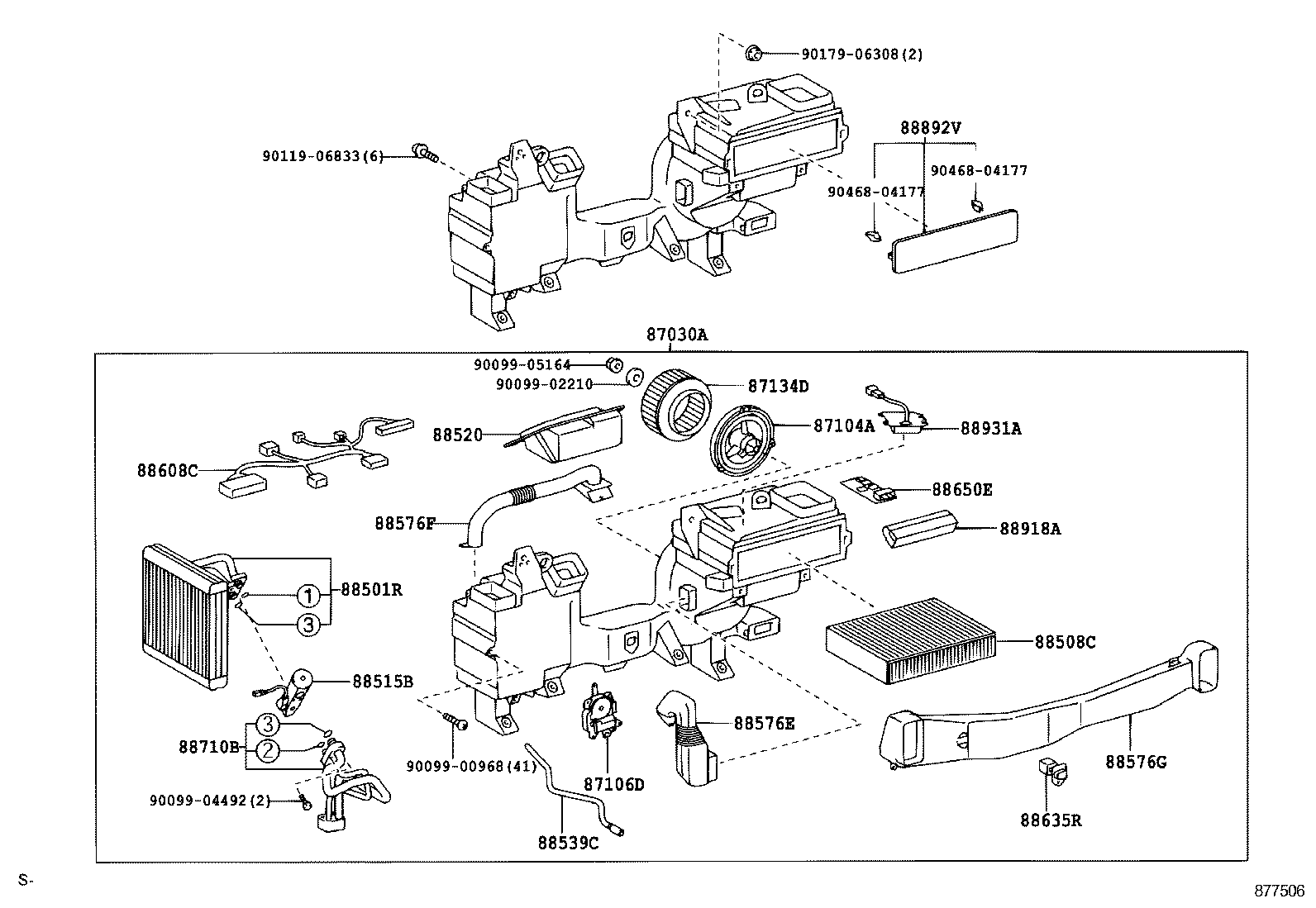

Heating & Air Conditioning - Cooler Unit
34 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 82210K | Harness Assy, Air Conditioner |
| 87030A | Unit Assy, Cooling, Rear |
| 87050 | Radiator Assy, Air Conditioner |
| 87103A | Motor Sub-assy, Cooling Unit, W/Fan |
| 87104A | Motor Sub-assy, Blower |
| 87106D | Servo Sub-assy, Damper, NO.1 |
| 87106H | Servo Sub-assy, Damper(FOR AIRMIX) |
| 87106L | Servo Sub-assy, Damper |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87130D | Blower Assy |
| 87134D | Fan, Blower, NO.2 |
| 87139C | Filter, Clean Air |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88501R | Evaporator Sub-assy (REAR) |
| 88504A | Case Sub-assy, Blower |
| 88508C | Filter Sub-assy, Air |
| 88515 | Valve, Cooler Expansion |
| 88515B | Valve, Rear Cooling Unit Expansion |
| 88520 | Box Assy, Cooling |
| 88539C | Hose, Cooler Unit Drain, NO.2 |
| 88576E | Duct, Cooler Air, NO.1 |
| 88576F | Duct, Cooler Air, NO.2 |
| 88576G | Duct, Cooler Air, NO.3 |
| 88608C | Harness Sub-assy, Wiring Air Indicator, NO.2 |
| 88613A | Lever, Cooler Control, NO.1 |
| 88613B | Lever, Cooler Control, NO.2 |
| 88635R | Resistor, Blower |
| 88650E | Amplifier Assy, Air Conditioner, NO.1 |
| 88650N | Amplifier Assy, Air Conditioner |
| 88710A | Tube Assy, Air Conditioner |
| 88710B | Tube Assy, Air Conditioner |
| 88892V | Cover, Air Purifier |
| 88918A | Lamp Assy, Indicator |
| 88931A | Sensor, Smoke |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
