Toyota Crown (CHINA)
2005-02 → 2009-11 · chassis GRS18# · catalogue 330210 · General
Supported model
Data version 2010-04

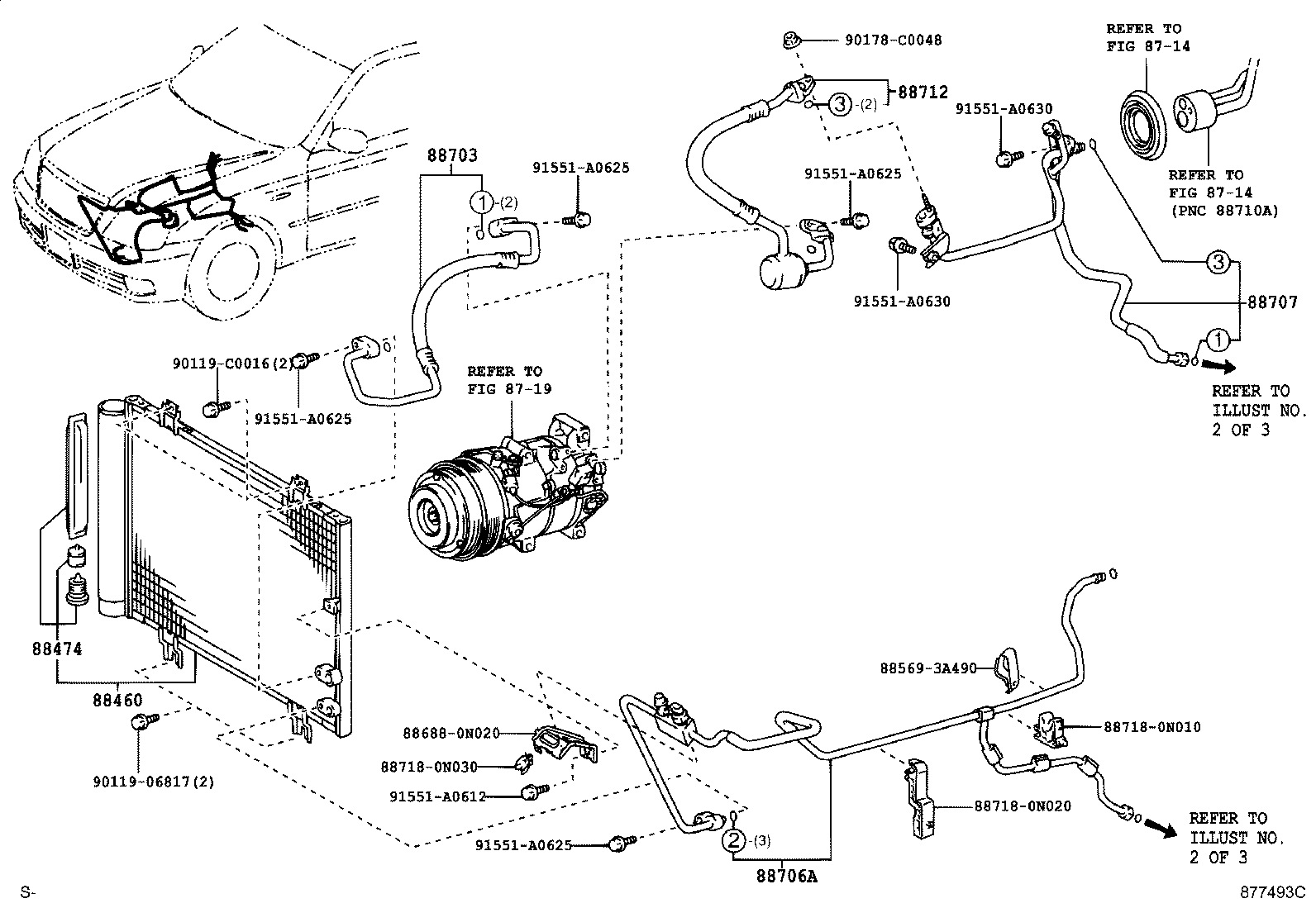

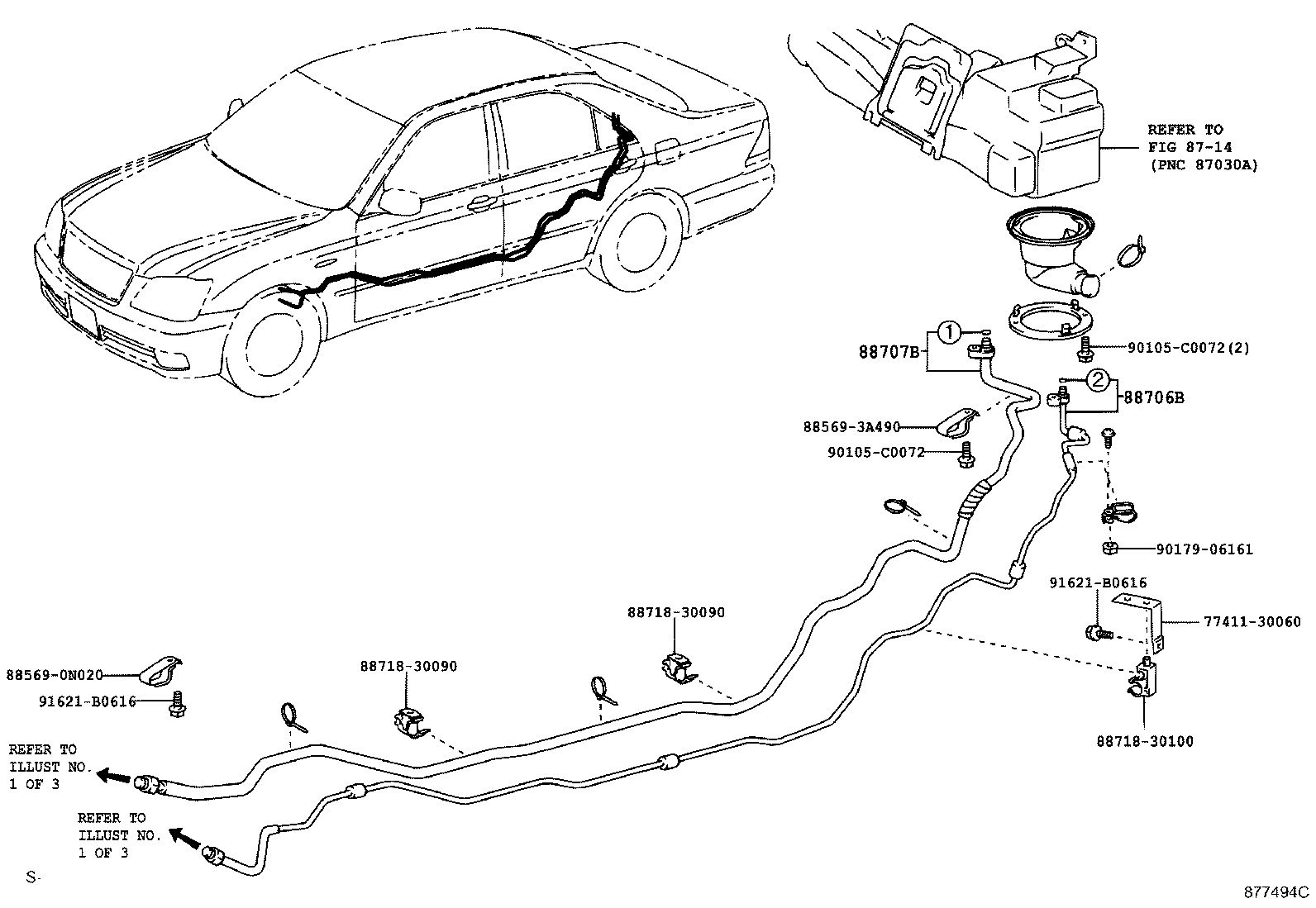

Heating & Air Conditioning - Cooler Piping
8 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 88460 | Condenser Assy, Cooler |
| 88474 | Dryer, Cooler |
| 88703 | Hose Sub-assy, Discharge |
| 88706A | Tube Sub-assy, Liquid, A |
| 88706B | Tube Sub-assy, Liquid, B |
| 88707 | Pipe Sub-assy, Suction |
| 88707B | Tube Sub-assy, Suction, B |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
