Toyota Crown (CHINA)
2009-12 → 2015-01 · chassis GRS20#,UZS200 · catalogue 330220 · General
Supported model
Data version 2015-01

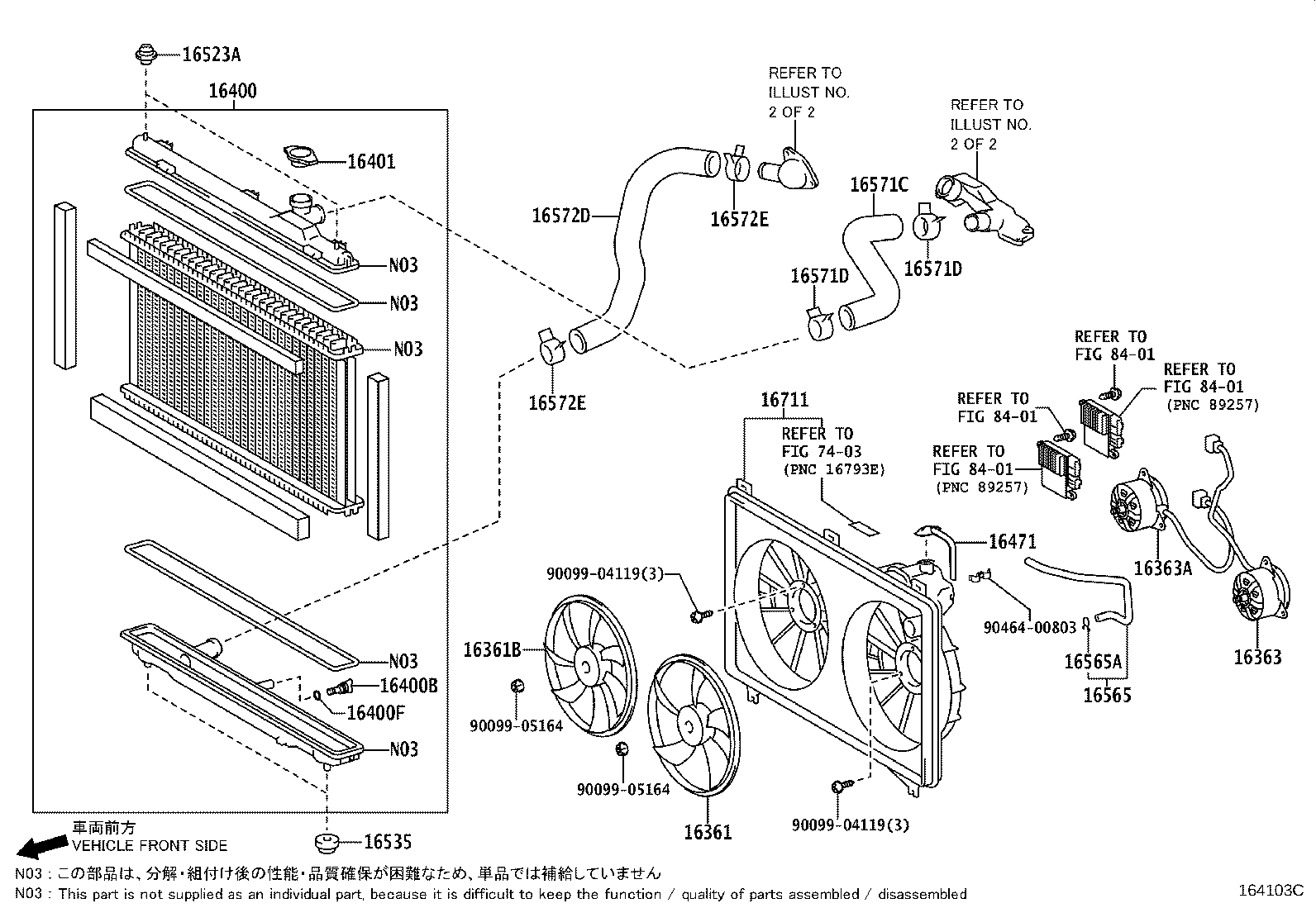

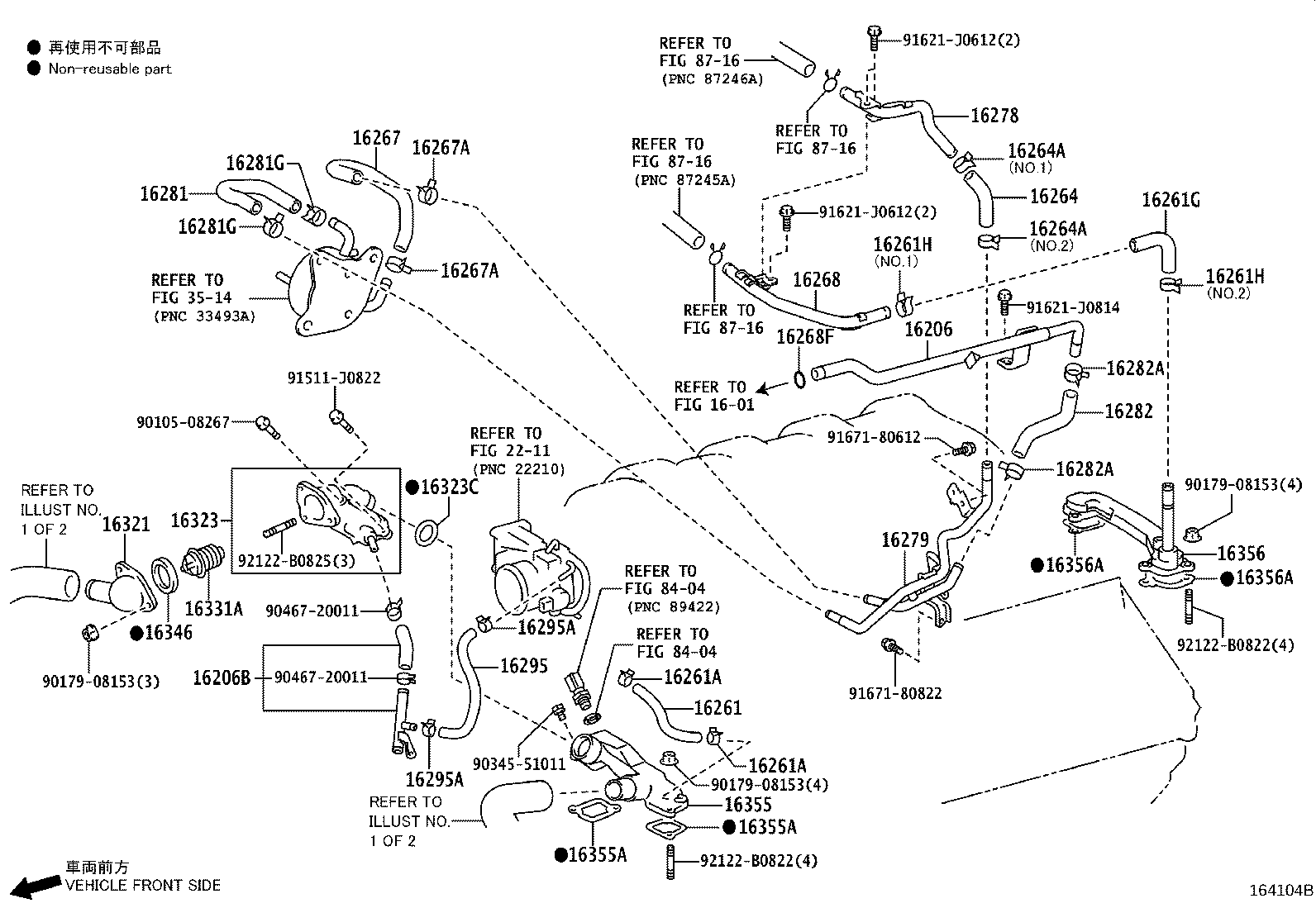

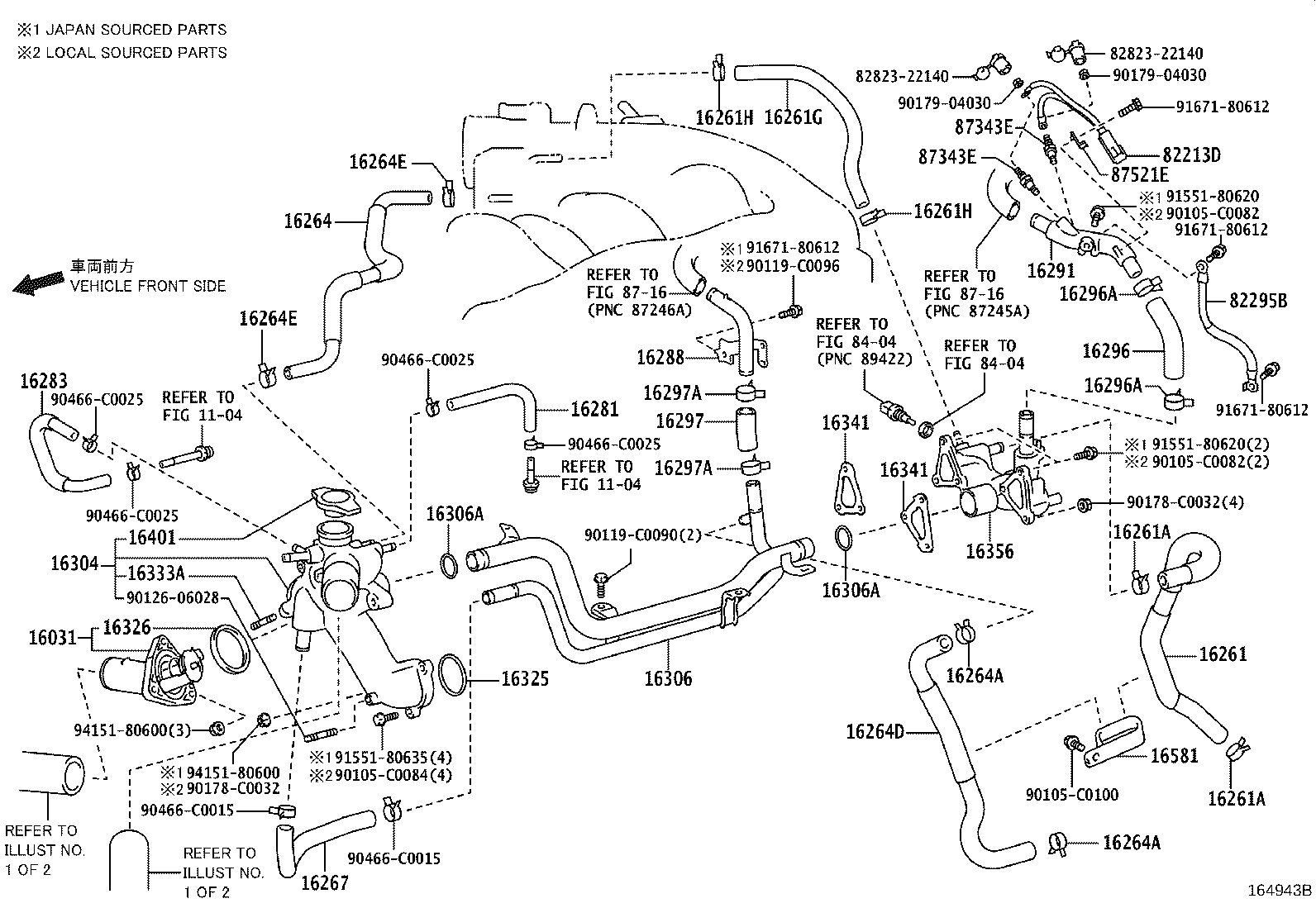

Radiator & Water Outlet
74 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 16031 | Water Inlet Sub-assy, W/Thermostat |
| 16206 | Pipe Sub-assy, Water By-pass |
| 16206B | Pipe Sub-assy, Water By-pass, NO.3 |
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261G | Hose, Water By-pass, NO.1 |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264D | Hose, Water By-pass, NO.2 |
| 16264E | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16268F | Ring, O(FOR WATER BY-PASS PIPE) |
| 16278 | Pipe, Water By-pass, NO.2 |
| 16279 | Pipe, Water By-pass, NO.3 |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281G | Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16282 | Hose, Water By-pass, NO.5 |
| 16282A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16283 | Hose, Water By-pass, NO.6 |
| 16288 | Pipe, Water By-pass, NO.4 |
| 16291 | Joint, Water Hose |
| 16295 | Hose, Water By-pass, NO.7 |
| 16295A | Clip(FOR WATER BY-PASS HOSE NO.7) |
| 16296 | Hose, Water By-pass, NO.8 |
| 16296A | Clip(FOR WATER BY-PASS HOSE NO.8) |
| 16297 | Hose, Water By-pass, NO.9 |
| 16297A | Clip(FOR WATER BY-PASS HOSE NO.9) |
| 16304 | Outlet Sub-assy, Water |
| 16306 | Pipe Sub-assy, Water Outlet |
| 16306A | Ring, O(FOR WATER OUTLET PIPE) |
| 16321 | Inlet, Water |
| 16323 | Housing, Water Inlet |
| 16323C | Ring, O(FOR WATER INLET HOUSING) |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16326 | Gasket, Water Inlet Housing, NO.2 |
| 16331A | Thermostat |
| 16333A | Bolt, Stud(FOR WATER OUTLET HOUSING) |
| 16341 | Gasket, Water Outlet |
| 16346 | Gasket, Thermostat |
| 16355 | Joint, Water By-pass, Front |
| 16355A | Gasket(FOR WATER BY-PASS JOINT FRONT) |
| 16356 | Joint, Water By-pass, Rear |
| 16356A | Gasket(WATER BY-PASS JOINT, REAR) |
| 16361 | Fan |
| 16361B | Fan, NO.2 |
| 16363 | Motor, Cooling Fan |
| 16363A | Motor, Cooling Fan, NO.2 |
| 16400 | Radiator Assy |
| 16400A | Cock Sub-assy, Radiator Drain |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16441 | Tank, Radiator, Upper |
| 16442 | Ring, O(FOR RADIATOR UPPER TANK) |
| 16461 | Tank, Radiator, Lower |
| 16462 | Ring, O(FOR RADIATOR LOWER TANK) |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16523A | Cushion, Radiator Support |
| 16535 | Support, Radiator, Lower |
| 16565 | Hose, Reserve Tank Inlet |
| 16565A | Clip |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16581 | Clamp, Hose(FOR WATER HOSE) |
| 16711 | Shroud, Fan |
| 82213D | Wire, Heater Blower |
| 82295B | Wire,Winch Earth |
| 87343E | Plug, Water By-pass Glow |
| 87521E | Bracket,Engine Block Heater |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
