Toyota Crown (CHINA)

2009-12 → 2015-01 · chassis GRS20#,UZS200 · catalogue 330220 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

24 part groups · 2 illustrations

Illustrations

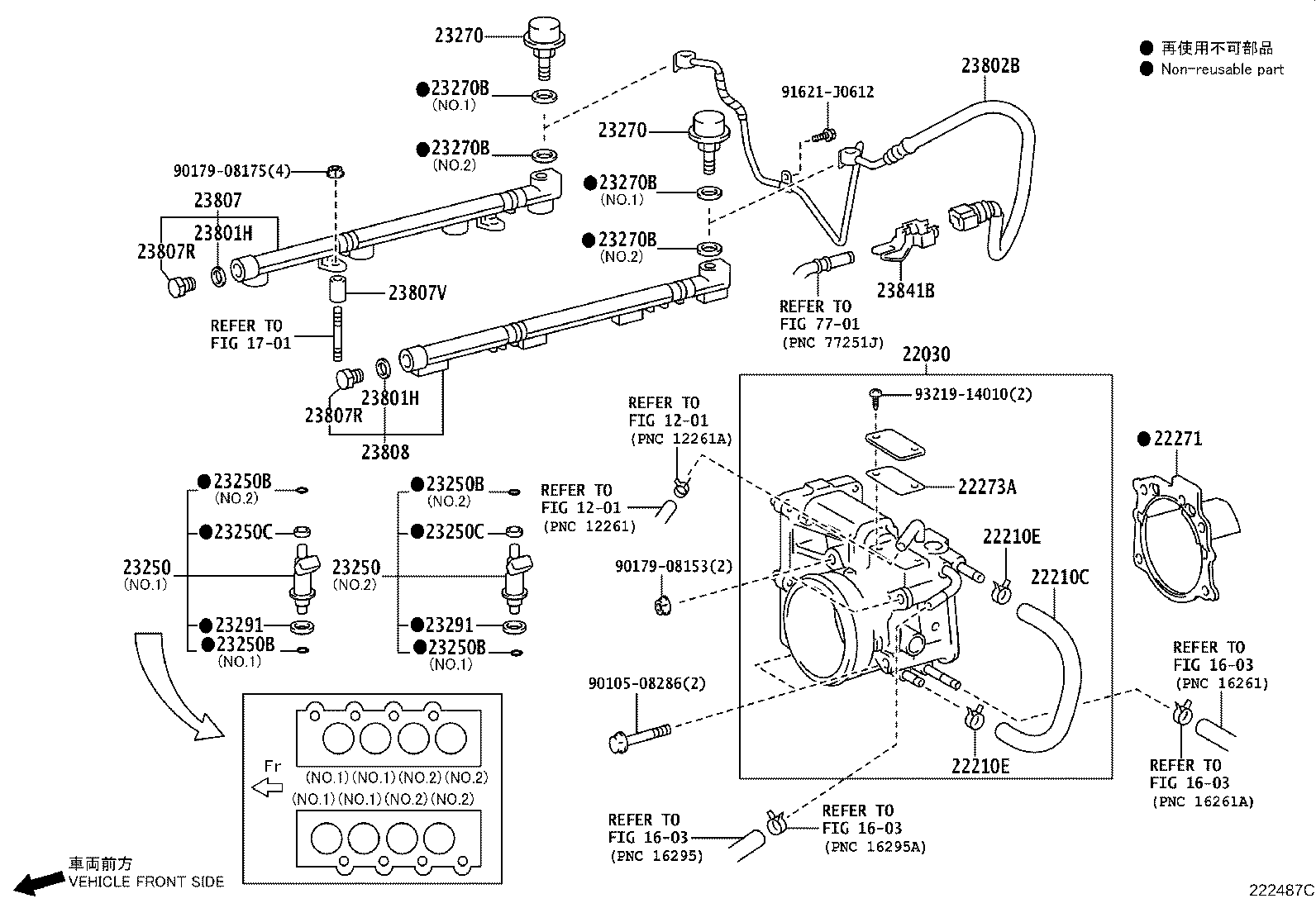

Figure 222486B 222486B 2009-12 → — Figure 222487C 222487C 2009-12 → —

Part groups

PNCDescription
11254A Bracket, V-bank Cover
22030 Body Assy, Throttle W/Throttle Position Sensor
22210C Hose, Water By-pass, NO.1
22210E Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE, NO.1)
22271 Gasket, Throttle Body
22273A Gasket, Throttle Body, NO.2
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23250C Grommet(FOR FUEL INJECTOR)
23270 Damper Assy, Fuel Pressure Pulsation
23270B Gasket(FOR PULSATION DAMPER HOSE)
23270F Ring, O(FOR PULSATION DAMPER)
23283A Holder, Fuel Pressure Regulator
23291 Insulator, Injector Vibration
23801H Gasket(FOR FUEL PIPE)
23802B Pipe Sub-assy, Fuel, NO.2
23807 Pipe Sub-assy, Fuel Delivery
23807R Plug, Fuel Delivary Pipe
23807V Spacer, NO.1(FOR DELIVERY PIPE)
23808 Pipe Sub-assy, Fuel Delivery, NO.2
23841B Clamp, Fuel Pipe, NO.1(FOR EFI)
23842A Clamp, Fuel Pipe, NO.2(FOR EFI)
23901 Tube Sub-assy, Fuel
23901F Grommet(FOR FUEL TUBE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
