Toyota Crown (CHINA)
2009-12 → 2015-01 · chassis GRS20#,UZS200 · catalogue 330220 · General
Supported model
Data version 2015-01

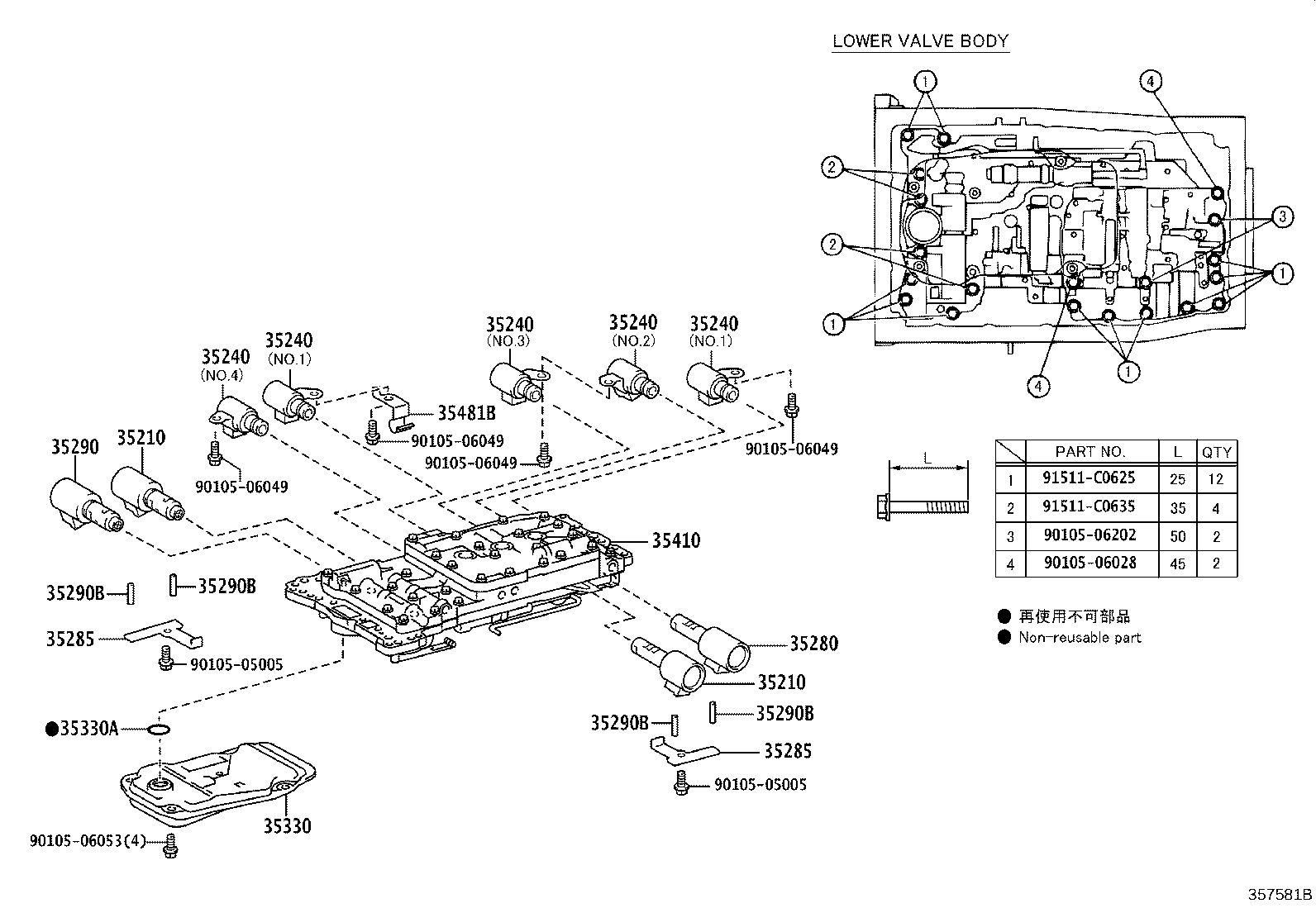

Valve Body & Oil Strainer (ATM)
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 35210 | Solenoid Assy, Clutch Control, NO.1 |
| 35240 | Solenoid Assy, Automatic Transmission 3Way |
| 35280 | Solenoid Assy, Lock UP Control |
| 35285 | Plate, Solenoid Lock |
| 35290 | Solenoid Assy, Line Pressure Control |
| 35290B | Pin, Straight (FOR LINE PRESSURE CONTOROL SOLENOID) |
| 35330 | Strainer Assy, Valve Body Oil |
| 35330A | Ring, O (FOR OIL STRAINER) |
| 35410 | Body Assy, Transmission Valve |
| 35481B | Clamp, Valve Body Wire Harness |
| 35482B | Clamp, Temperature Sensor |
| 82125J | Wire, Transmission |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
