Toyota Crown (CHINA)

2009-12 → 2015-01 · chassis GRS20#,UZS200 · catalogue 330220 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

9 part groups · 3 illustrations

Illustrations

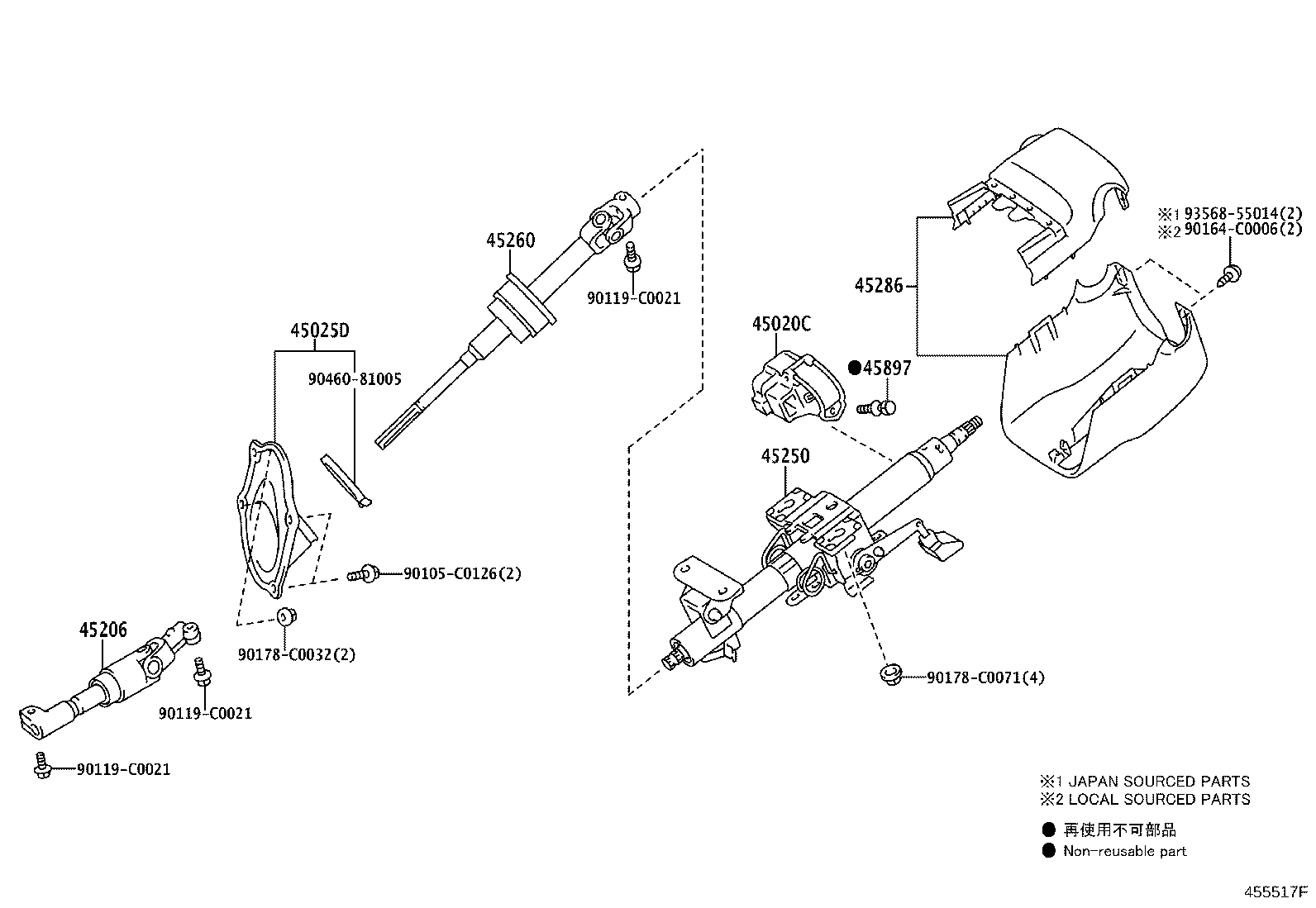

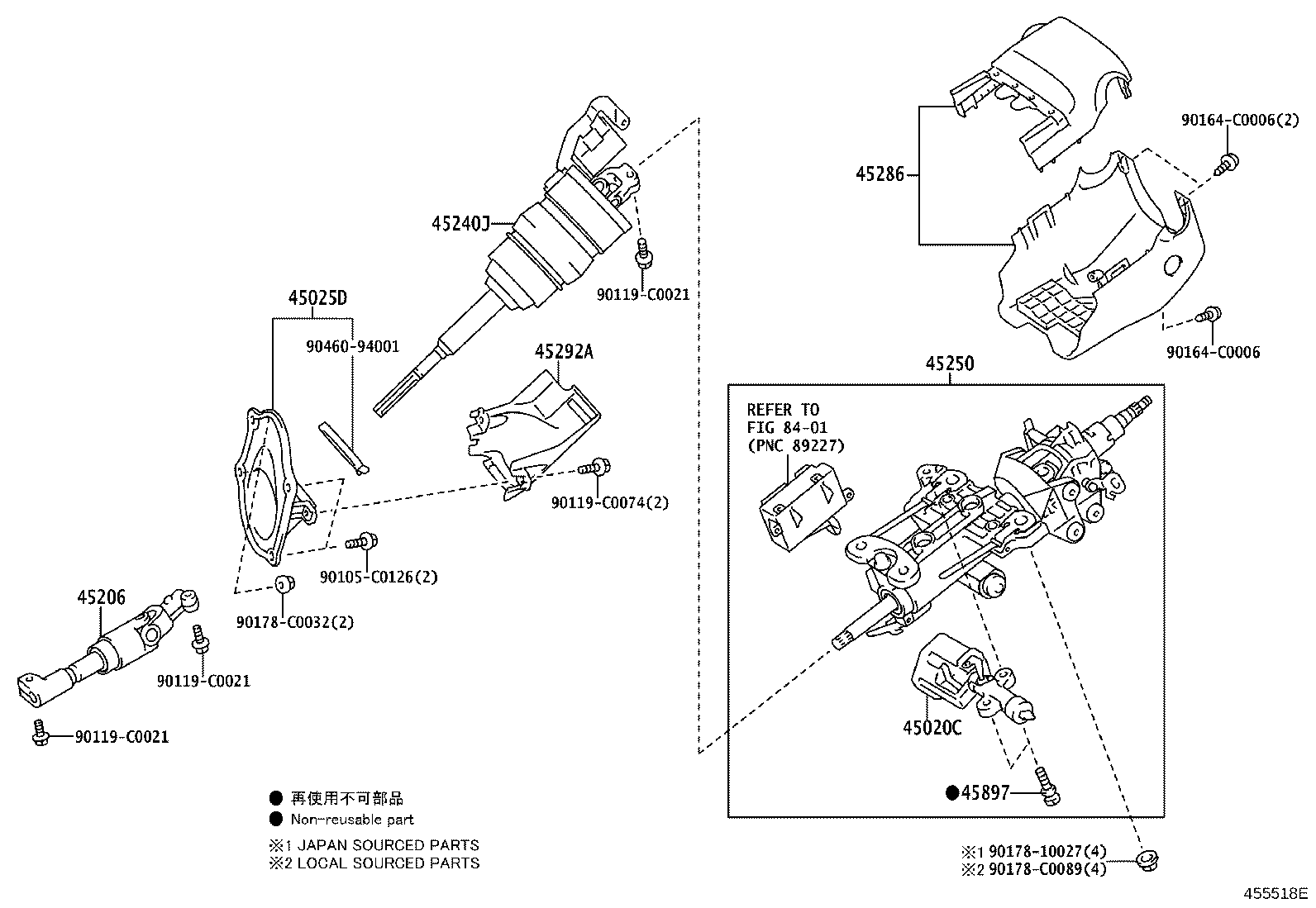

Figure 455516F 455516F 2009-12 → — Figure 455517F 455517F 2009-12 → — Figure 455518E 455518E 2009-12 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
45206 Yoke Sub-assy, Steering Sliding W/Shaft
45240J Actuator Assy, Steering
45250 Column Assy, Steering
45260 Shaft Assy, Steering Intermediate, NO.2
45286 Cover, Steering Column
45292A Cover, Main Shaft Lower Dust
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
