Toyota Crown (CHINA)
2009-12 → 2015-01 · chassis GRS20#,UZS200 · catalogue 330220 · General
Supported model
Data version 2015-01

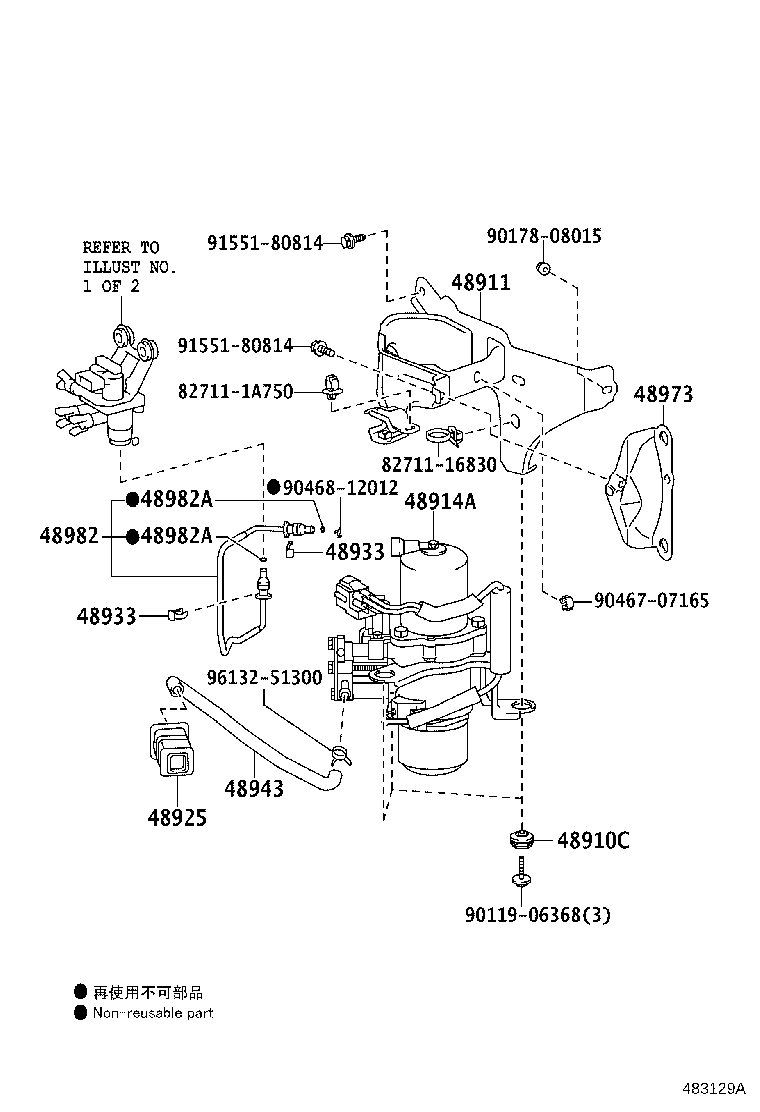

Height Control (AUTO-LEVELER)
32 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44753B | Clamp, Height Control Tube, NO.1 |
| 44753C | Clamp, Height Control Tube, NO.2 |
| 44753E | Clamp, Height Control Tube, NO.3 |
| 44753F | Clamp, Height Control Tube, NO.4 |
| 44753G | Clamp, Height Control Tube NO.5 |
| 44753H | Clamp, Height Control Tube NO.6 |
| 44753L | Clamp, Height Control Tube NO.9 |
| 44753M | Clamp, Height Control Tube NO.10 |
| 48095 | Valve Sub-assy, Height Control, NO.1 |
| 48095C | Bush(FOR HEIGHT CONTROL VALVE NO.1) |
| 48095D | Ring, O(FOR HEIGHT CONTROL VALVE) |
| 48096 | Valve Sub-assy, Height Control, NO.2 |
| 48096A | Bush, NO.2(FOR HEIGHT CONTROL VALVE) |
| 48096B | Cushion, NO.2(FOR HEIGHT CONTROL VALVE) |
| 48097B | Cushion(FOR HEIGHT CONTROL VALVE SUB-ASSY NO.3) |
| 48910C | Bush, NO.1(FOR HEIGHT CONTROL COMPRESSOR) |
| 48911 | Bracket, Height Control Compressor |
| 48914A | Compressor, Height Control, NO.1 |
| 48925 | Filter, Height Control |
| 48932A | Plate, Height Control Tube |
| 48933 | Holder, Air Connector Clip |
| 48934B | Connector, Height Control Tube |
| 48943 | Hose, Height Control, NO.1 |
| 48973 | Bracket, Compressor Side Member |
| 48980C | Harness Assy, Height Control Valve |
| 48982 | Tube, Height Control, NO.2 |
| 48982A | Ring, O(FOR HEIGHT CONTROL TUBE NO.2) |
| 48983 | Tube, Height Control, NO.3 |
| 48984 | Tube, Height Control, NO.4 |
| 48986 | Tube, Height Control, NO.6 |
| 48987 | Tube, Height Control, NO.7 |
| 48988 | Tube, Height Control, NO.8 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
