Toyota Crown (CHINA)

2009-12 → 2015-01 · chassis GRS20#,UZS200 · catalogue 330220 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

21 part groups · 2 illustrations

Illustrations

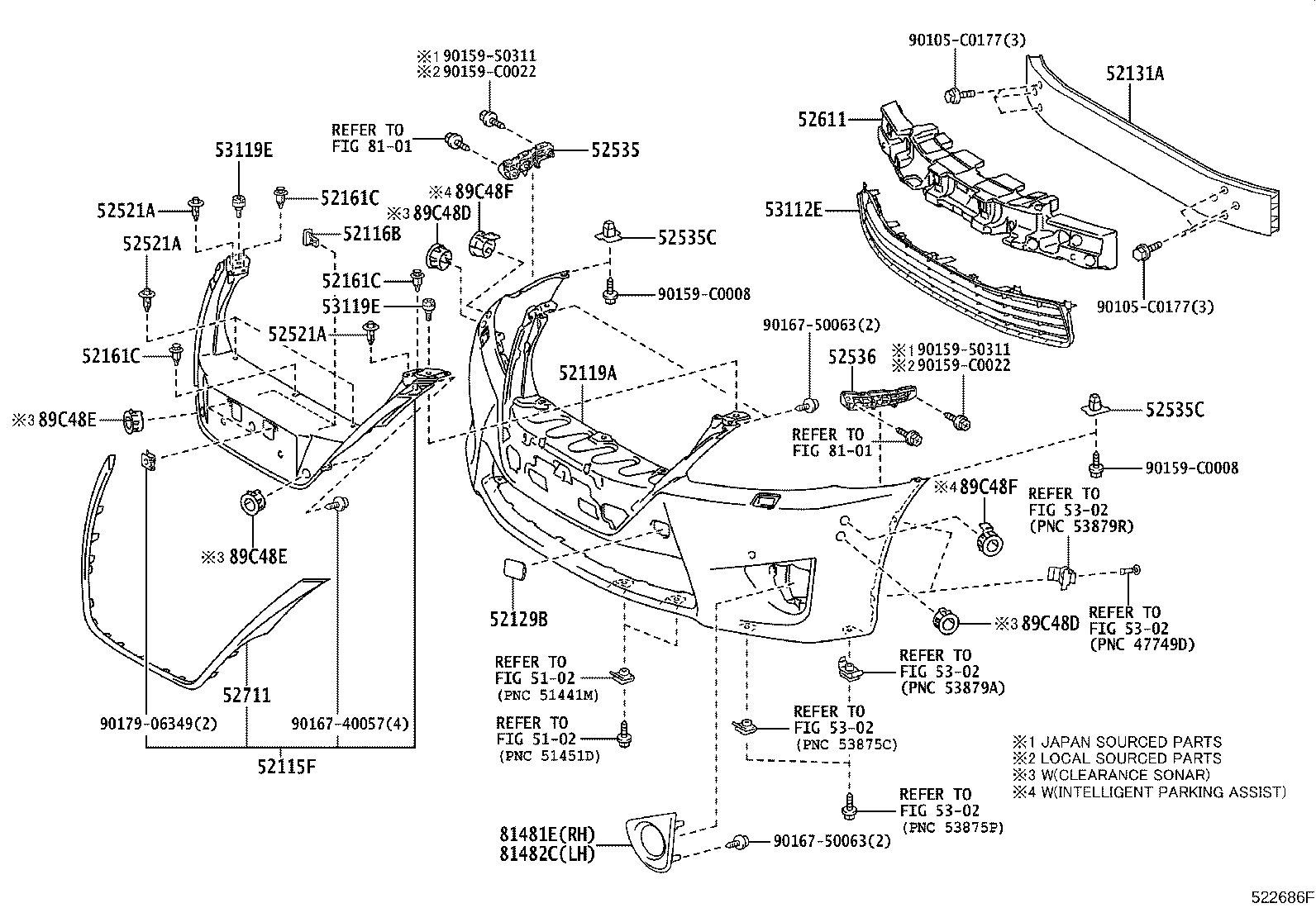

Figure 522200H 522200H 2009-12 → 2012-07 Figure 522686F 522686F 2012-07 → —

Part groups

PNCDescription
52115F Insert, Front Bumper Cover
52116B Retainer, Front Bumper
52119A Cover, Front Bumper
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52144E Stay, Front Bumper, Center
52161C Piece, Front Bumper
52521A Clip(FOR FRONT BUMPER RETAINER)
52535 Retainer, Front Bumper Side, RH
52535C Retainer, Front Bumper Side
52536 Retainer, Front Bumper Side, LH
52541 Protector, Front Bumper
52611 Absorber, Front Bumper Energy
52711 Moulding, Front Bumper
53112E Grille, Radiator, Lower NO.1
53119E Protector, Radiator Grille
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48E Retainer, Ultrasonic Sensor, Front Center
89C48F Retainer, Ultrasonic Sensor, Front Side
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
