Toyota Crown (CHINA)
2009-12 → 2015-01 · chassis GRS20#,UZS200 · catalogue 330220 · General
Supported model
Data version 2015-01

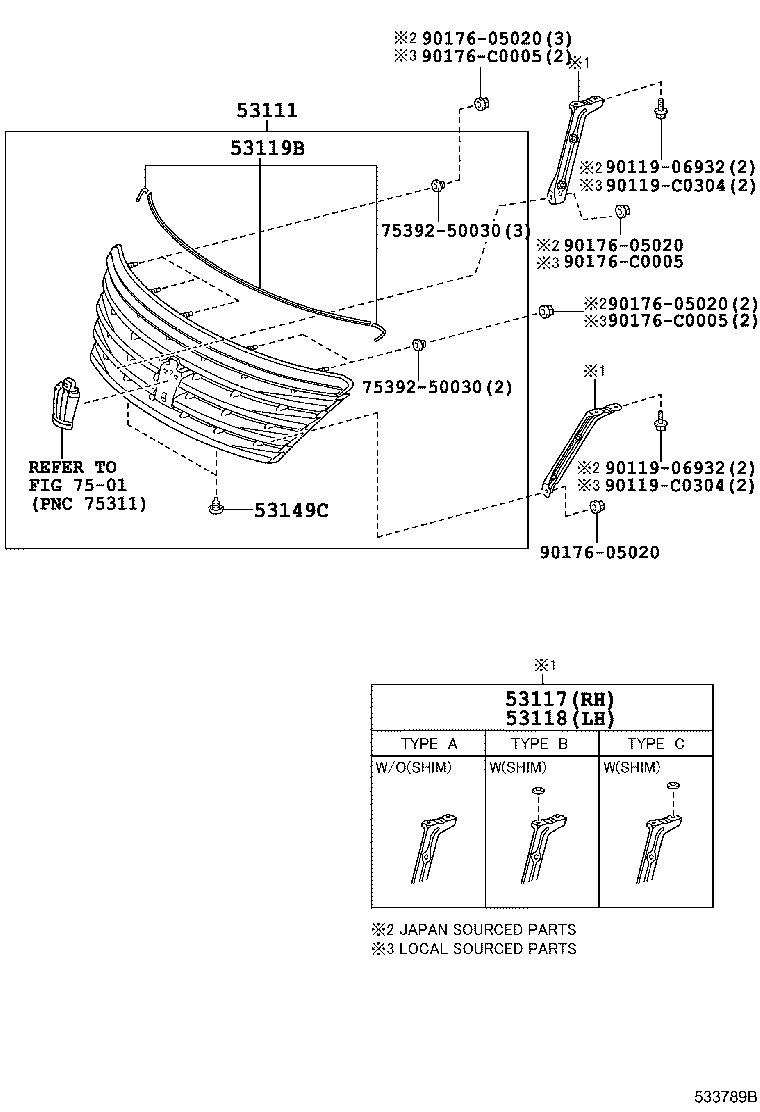

Radiator Grille
5 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53111 | Grille, Radiator |
| 53117 | Bracket, Radiator Grille Support, RH |
| 53118 | Bracket, Radiator Grille Support, LH |
| 53119B | Protector, Radiator Grille |
| 53149C | Protector, Radiator Grille, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
