Toyota Crown (CHINA)
2009-12 → 2015-01 · chassis GRS20#,UZS200 · catalogue 330220 · General
Supported model
Data version 2015-01

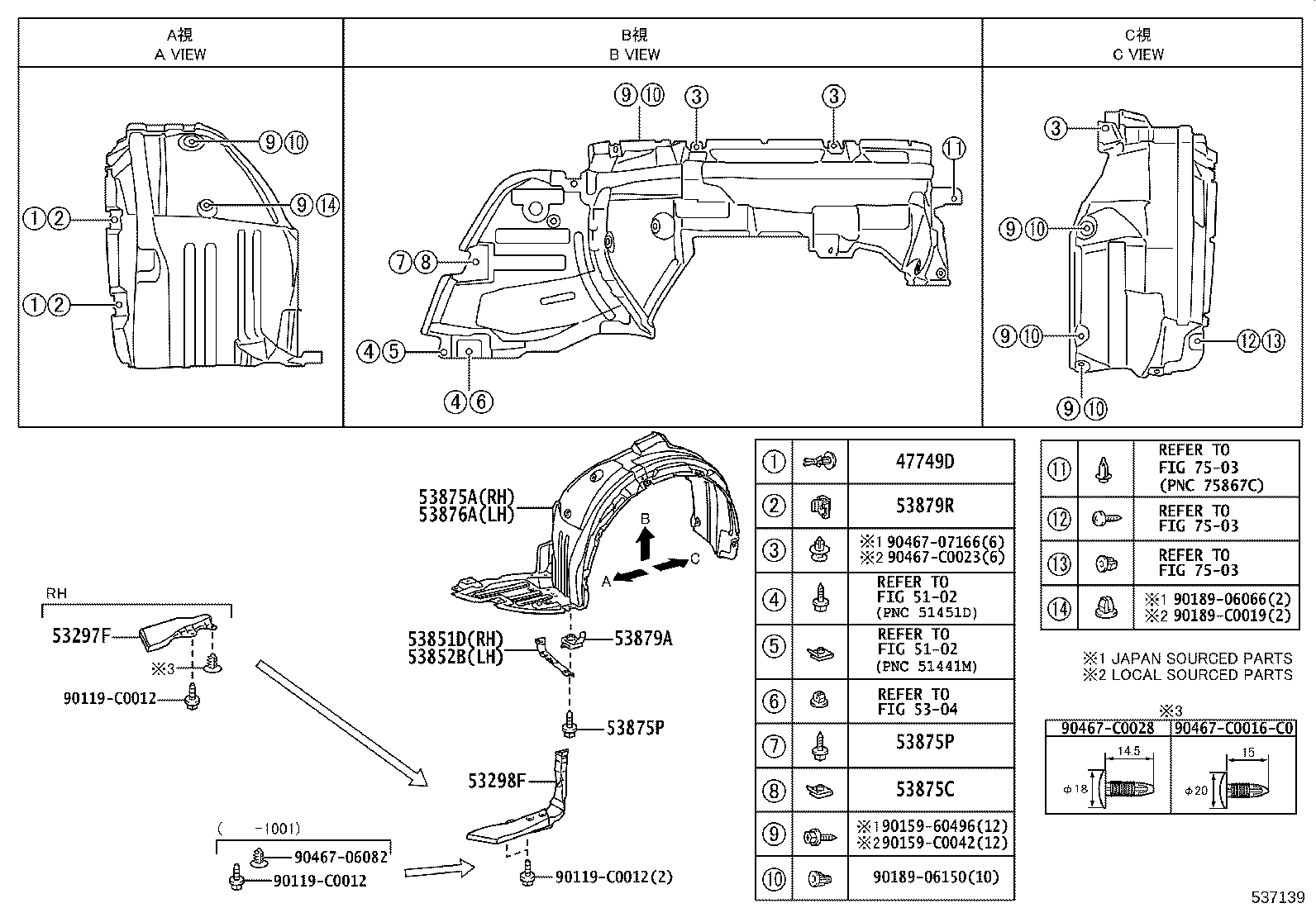

Hood & Front Fender
31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47749D | Clip, Pin Hold |
| 53297F | Retainer, Cool Air Intake Duct, NO.2 |
| 53298F | Retainer, Cool Air Intake Duct, NO.3 |
| 53301 | Hood Sub-assy |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53378C | Seal, Hood Air Intake Duct |
| 53378D | Clip(FOR HOOD AIR INTAKE DUCT SEAL) |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53384B | Cushion, Hood, Center |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53825A | Protector, Front Fender, Upper RH |
| 53826A | Protector, Front Fender, Upper LH |
| 53827L | Protector, Front Fender Side Panel, RH |
| 53828K | Protector, Front Fender Side Panel, LH |
| 53835C | Bracket, Front Side Panel, RH |
| 53836B | Bracket, Front Side Panel, LH |
| 53851D | Pad, Front Wheel Opening Extension, RH |
| 53852B | Pad, Front Wheel Opening Extension, LH |
| 53875A | Liner, Front Fender, RH |
| 53875C | Clip, Front Fender Liner |
| 53875P | Screw, NO.1 |
| 53876A | Liner, Front Fender, LH |
| 53879A | Retainer, Front Fender Liner |
| 53879R | Retainer, Front Fender Liner |
| 53882N | Clip(FOR FRONT FENDER SEAL) |
| 53882P | Seal, Front Fender, RH |
| 53883K | Seal, Front Fender, LH |
| 53887A | Seal, Front Fender Splash Shield, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
