Toyota Crown (CHINA)
2009-12 → 2015-01 · chassis GRS20#,UZS200 · catalogue 330220 · General
Supported model
Data version 2015-01

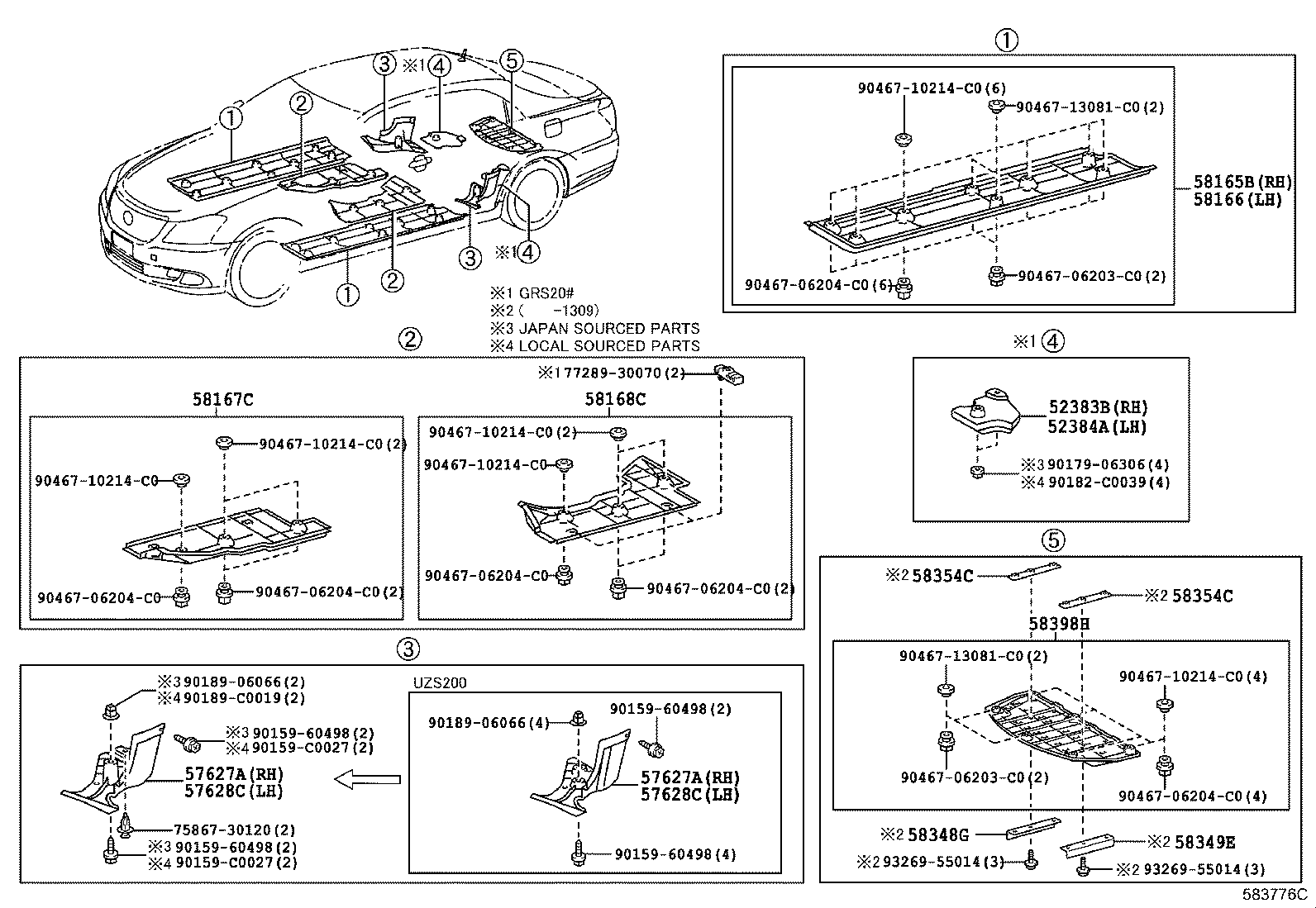

Floor Pan & Lower Back Panel
56 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52383B | Protector, Differential Support, NO.1 |
| 52384A | Protector, Differential Support, NO.2 |
| 57051A | Member Sub-assy, Front Floor Cross, RH |
| 57052A | Member Sub-assy, Front Floor Cross, LH |
| 57053 | Reinforcement Sub-assy, Front Floor Crossmember, RH |
| 57054A | Reinforcement Sub-assy, Front Floor Crossmember, LH |
| 57257A | Bracket, Engine Rear Mounting Member, RH |
| 57258C | Bracket, Engine Rear Mounting Member, LH |
| 57407A | Member Sub-assy, Center Floor Cross |
| 57425B | Reinforcement, Front Floor, NO.2 RH |
| 57426B | Reinforcement, Front Floor, NO.2 LH |
| 57427D | Reinforcement, Front Floor, NO.3 RH |
| 57428C | Reinforcement, Front Floor, NO.3 LH |
| 57463B | Reinforcement, Center Floor Crossmember, RH |
| 57464A | Reinforcement, Center Floor Crossmember, LH |
| 57505 | Bracket Sub-assy, Parking Brake, NO.1 |
| 57603E | Extension Sub-assy, Rear Side Member, RH |
| 57604C | Extension Sub-assy, Rear Side Member, LH |
| 57606C | Member Sub-assy, Rear Floor Cross, NO.2 |
| 57627A | Cover, Rear Floor Side Member, RH |
| 57628C | Cover, Rear Floor Side Member, LH |
| 57652C | Member, Rear Floor Cross, NO.1 |
| 58105B | Panel Sub-assy, Front Floor Rear Upper Sub |
| 58111A | Pan, Front Floor, RH |
| 58112A | Panel, Front Floor, LH |
| 58113A | Panel, Front Floor, Center |
| 58114A | Reinforcement, Front Floor Panel |
| 58136A | Cover, Front Floor Service Hole |
| 58165B | Cover, Front Floor, RH |
| 58166 | Cover, Front Floor, LH |
| 58167C | Cover, Front Floor, Center RH |
| 58168C | Cover, Front Floor, Center LH |
| 58202A | Pan Sub-assy, Center Floor, Front |
| 58209A | Reinforcement Sub-assy, Drive Shaft Center Support |
| 58211H | Pan, Center Floor |
| 58225A | Bracket, Center Mounting |
| 58246C | Bracket, Rear Seat Hinge, Center NO.2 |
| 58247D | Bracket, Rear Seat Hinge, Outer RH |
| 58248D | Bracket, Rear Seat Hinge, Outer LH |
| 58261A | Cover, Transmission |
| 58298E | Bracket, Hot Air Intake, NO.1 |
| 58299C | Bracket, Hot Air Intake, NO.2 |
| 58305 | Bracket Sub-assy, Spare Wheel Clamp |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58313F | Extension, Rear Floor Pan TO Quarter Panel, RH |
| 58314F | Extension, Rear Floor Pan TO Quarter Panel, LH |
| 58325E | Cover, Rear Floor Service Hole |
| 58329F | Cover, Rear Floor Service Hole, NO.2 |
| 58348G | Plate, Rear Floor Side, RH |
| 58349E | Plate, Rear Floor Side, LH |
| 58354C | Patch, Front Floor, Center |
| 58384G | Gusset, Lower Back, Upper RH |
| 58389F | Bracket, Lower Back Cover |
| 58398H | Cover, Floor Under, NO.1 |
| 58798C | Cushion, Jack Carrier |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
