Toyota Crown (CHINA)

2009-12 → 2015-01 · chassis GRS20#,UZS200 · catalogue 330220 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

15 part groups · 3 illustrations

Illustrations

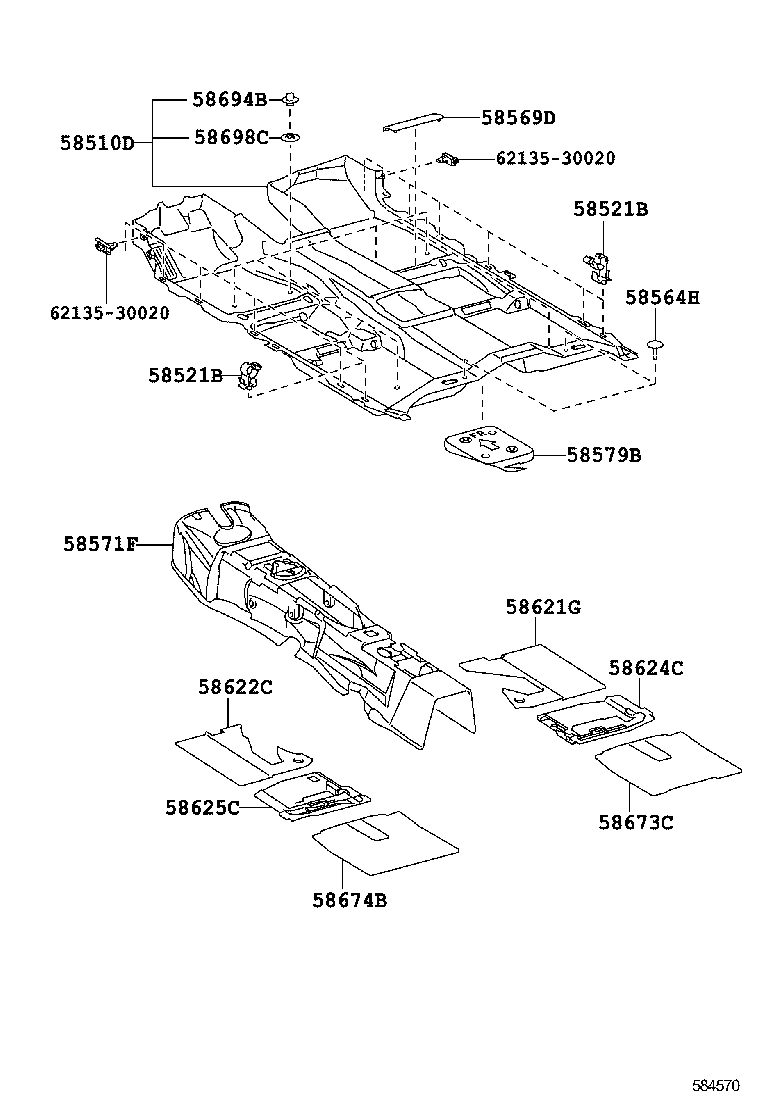

Figure 583769 583769 2009-12 → 2012-07 Figure 584570 584570 2012-07 → — Figure 584780 584780 2009-12 → —

Part groups

PNCDescription
58510D Carpet Assy, Floor, Front
58510H Mat Assy, Floor
58521B Hook, Floor Carpet
58564H Clip(FOR REAR FLOOR CARPET)
58569D Cover, Front Floor Caution Plate
58571F Pad, Front Floor, Front
58579B Pad, Rear Floor
58621G Pad, Front Floor Silencer, RH
58622C Pad, Front Floor Silencer, LH
58624C Pad, Center Floor Silencer, RH
58625C Pad, Center Floor Silencer, LH
58673C Pad, Rear Floor Silencer, NO.1
58674B Pad, Rear Floor Silencer, NO.2
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
