Toyota Crown (CHINA)

2009-12 → 2015-01 · chassis GRS20#,UZS200 · catalogue 330220 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

24 part groups · 2 illustrations

Illustrations

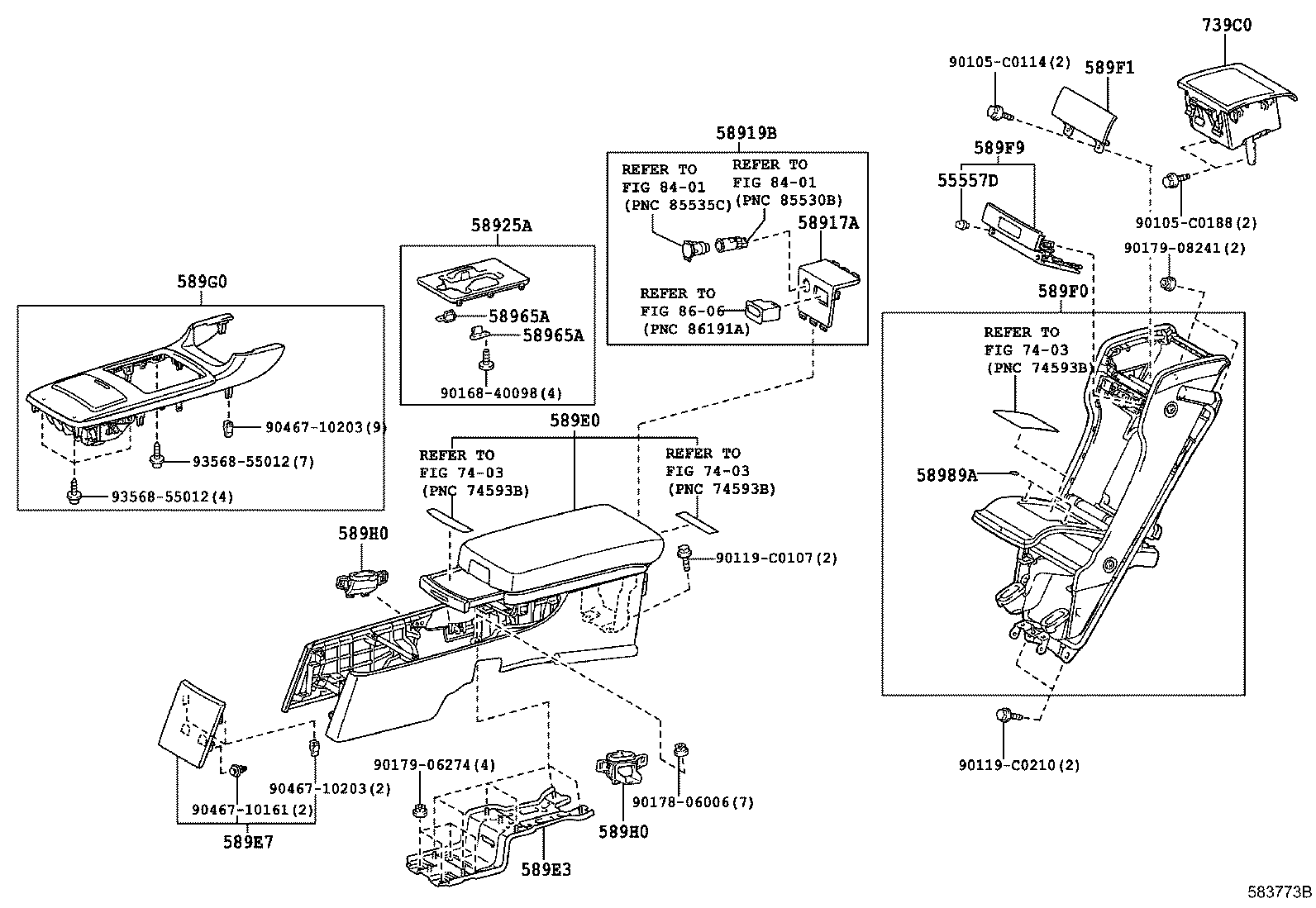

Figure 583772G 583772G 2009-12 → — Figure 583773B 583773B 2009-12 → 2012-07

Part groups

PNCDescription
55557D Cushion, Glove Compartment Door Check
55620B Holder, Instrument Panel Cup
58804A Panel Sub-assy, Console, Upper
58810J Box Assy, Console
58811D Clip(FOR CONSOLE BOX)
58821C Panel, Console, Upper
58825B Pocket, Console Box
58903A Panel Sub-assy, Console Rear End
58917A Cover, Console Box, Rear
58919B Plate, Console Box
58925A Pocket, Console Box, Rear
58965A Stopper, Console Compartment Door, NO.2
58989A Retainer, Console Box
58995A Bracket, Console Box Mounting, NO.1
589E0 Armrest Assy, Rear Seat Console
589E3 Base, Rear Seat Console Armrest
589E7 Panel, Rear Seat Console Armrest, Front
589F0 Box Assy, Rear Seat Console
589F1 Panel, Rear Seat Console Box, Lower
589F9 Cover, Rear Seat Console Box, Lwr
589G0 Panel Assy, Rear Seat Console
589H0 Nozzle Assy, Rear Seat Console
739C0 Airbag Assy, Rear Seat Console
74133 Seal, Front Ash Receptacle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
