Toyota Crown (CHINA)

2009-12 → 2015-01 · chassis GRS20#,UZS200 · catalogue 330220 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

15 part groups · 2 illustrations

Illustrations

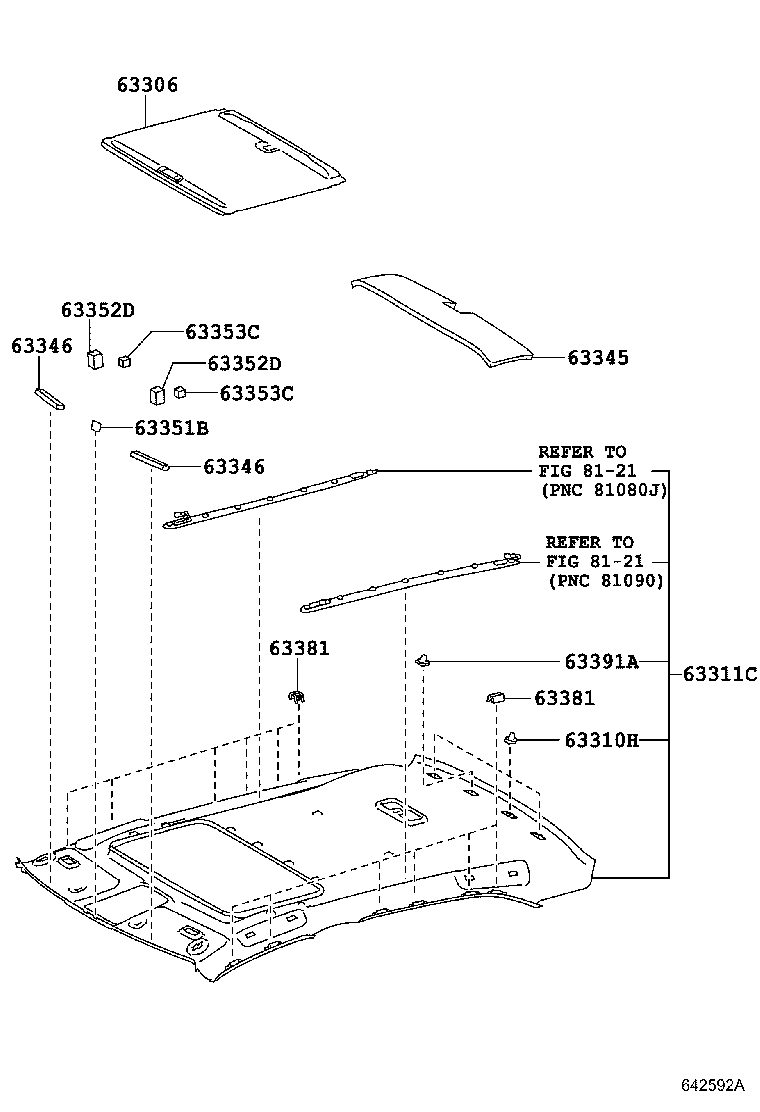

Figure 642591A 642591A 2009-12 → — Figure 642592A 642592A 2009-12 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310H Clip(FOR ROOF HEADLINING)
63311C Headlining, Roof
63341 Pad, Roof Silencer, NO.1
63343 Pad, Roof Silencer, NO.3
63345 Pad, Roof Silencer, NO.5
63345D Pad, Roof Silencer, Center
63346 Pad, Roof Silencer, NO.6
63351B Pad, Roof Headlining
63352D Pad, Roof Headlining, NO.2
63353C Pad, Roof Headlining, Center
63381 Retainer, Headlining, Front
63391A Clip(FOR ROOF HEADLINING TRIM)
66416 Spacer, Side Rail, Rear NO.3 RH
66426B Spacer, Side Rail, Rear NO.3 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
