Toyota Crown (CHINA)
2009-12 → 2015-01 · chassis GRS20#,UZS200 · catalogue 330220 · General
Supported model
Data version 2015-01

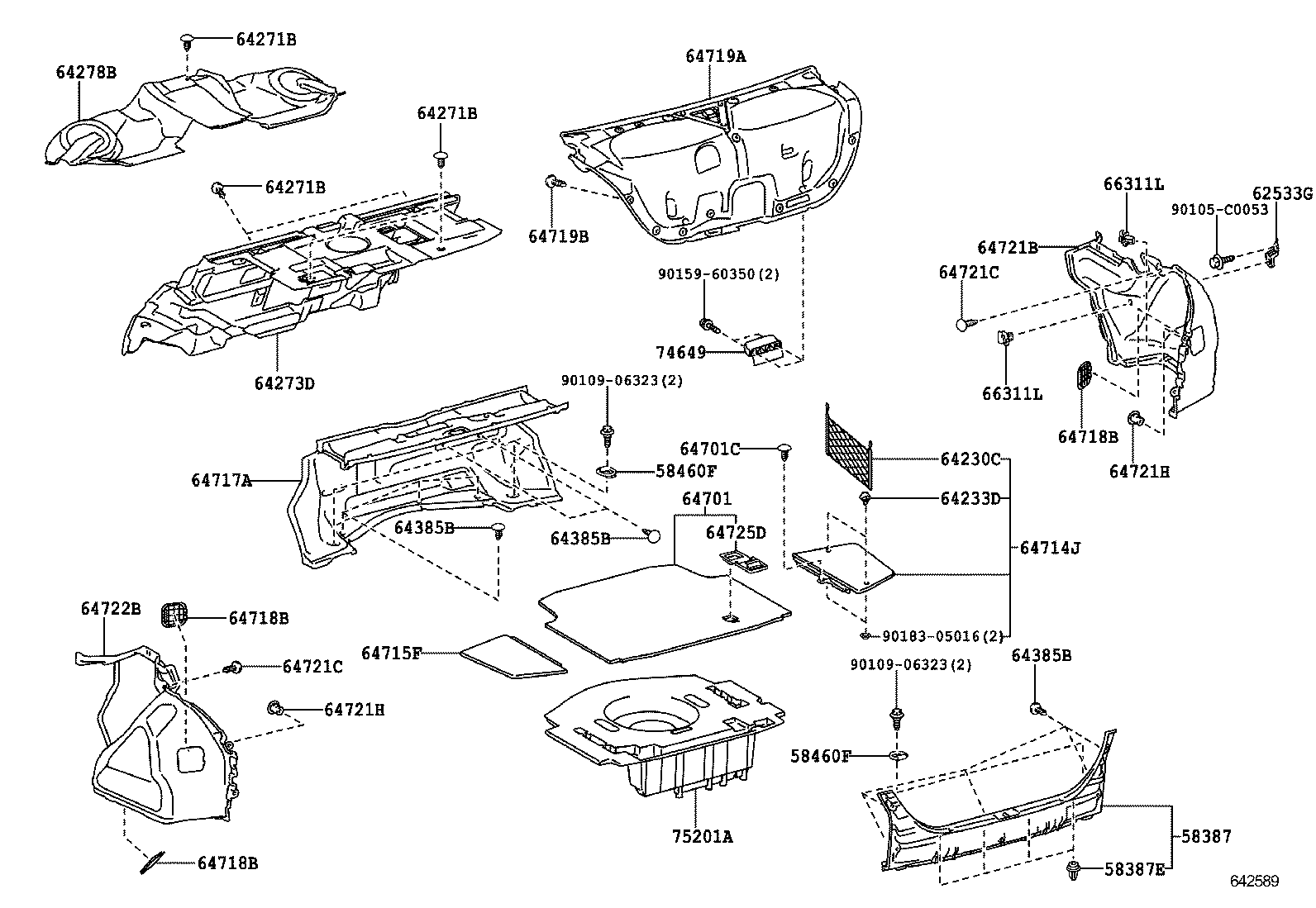

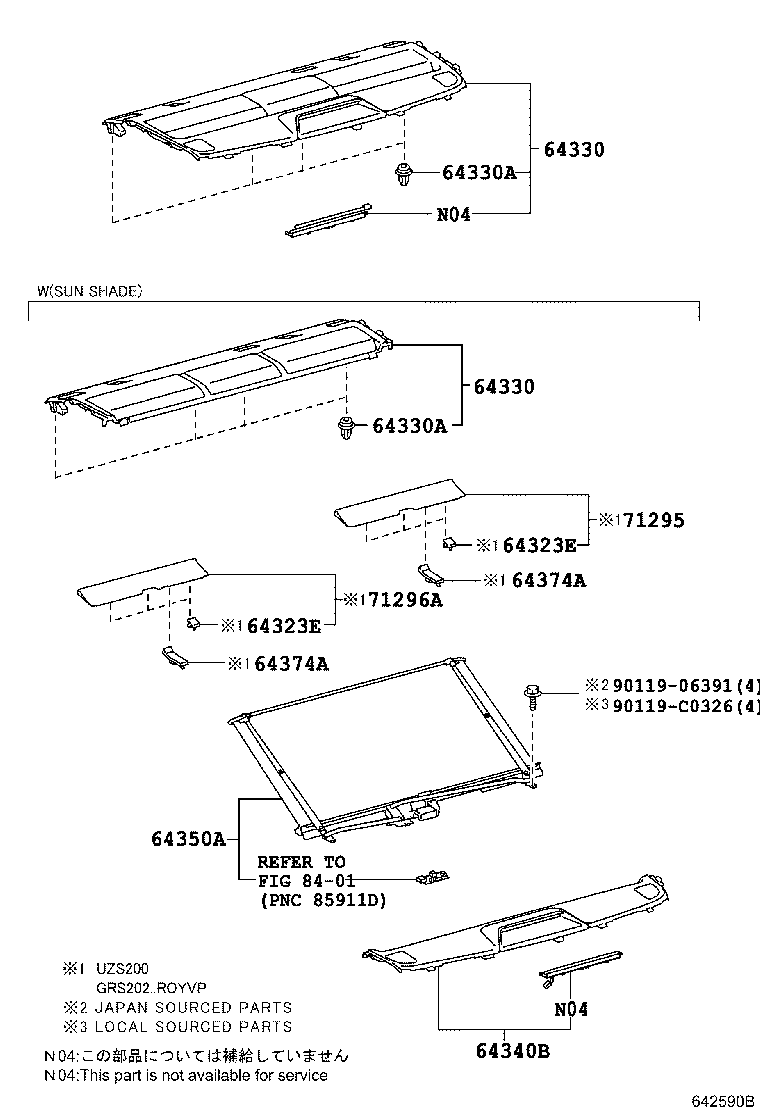

Package Tray Panel & Luggage Compartment Mat
35 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387 | Plate, Rear Floor Finish |
| 58387E | Clip(FOR REAR FLOOR FINISH PLATE) |
| 58460F | Striker Assy, Luggage Hold Belt |
| 62533G | Bracket, Quarter Trim, RH |
| 64230C | Net Assy, Room Partition |
| 64233D | Hook, Room Partition Net, Rear RH |
| 64271B | Clip(FOR ROOM PARTITION BOARD) |
| 64273D | Pad, Room Partition, NO.1 |
| 64278B | Pad, Room Partition, NO.3 |
| 64323E | Clamp, Package Tray Trim |
| 64330 | Panel Assy, Package Tray Trim |
| 64330A | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64340B | Panel Assy, Package Tray Trim, NO.2 |
| 64350A | Shade Assy, Rear Window |
| 64374A | Support, Package Tray Trim |
| 64385B | Clip |
| 64701 | Mat Sub-assy, Luggage Compartment |
| 64701C | Clip(FOR LUGGAGE COMPARTMENT MAT) |
| 64714J | Cover, Deck Side Trim, RH |
| 64715F | Cover, Deck Side Trim, LH |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64718B | Cover, Luggage Trim Service Hole |
| 64719A | Cover, Luggage Compartment Door |
| 64719B | Clip(FOR LUGGAGE COMPARTMENT DOOR) |
| 64721A | Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) |
| 64721B | Cover, Luggage Compartment Trim, NO.1 |
| 64721C | Clip(LUGGAGE COMPARTMENT) |
| 64721H | Clip(LUGGAGE COMPARTMENT) |
| 64722B | Cover, Luggage Compartment Trim, NO.2 |
| 64725D | Hook, Luggage Compartment Trim, NO.1 |
| 66311L | Hook,Rope |
| 71295 | Plate, Rear Seatback, Upper RH |
| 71296A | Plate, Rear Seatback, Upper LH |
| 74649 | Grip, Luggage Compartment Door Assist |
| 75201A | Box, Tool |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
