Toyota Crown (CHINA)

2009-12 → 2015-01 · chassis GRS20#,UZS200 · catalogue 330220 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

12 part groups · 2 illustrations

Illustrations

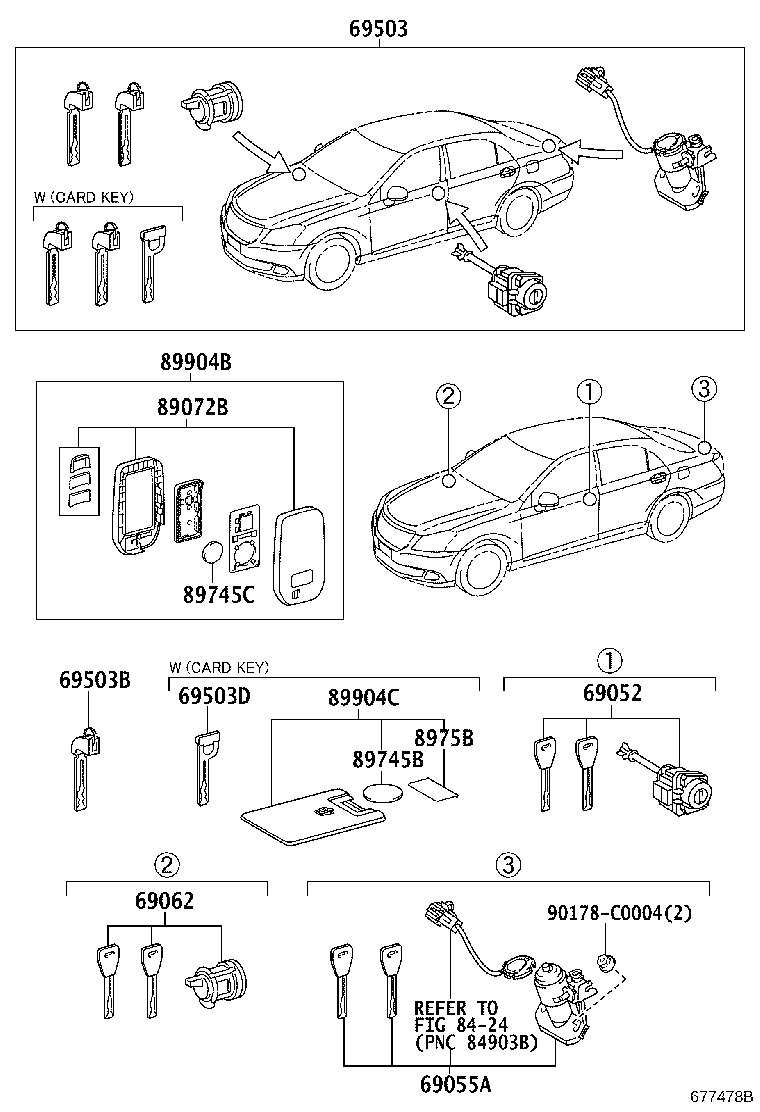

Figure 676372D 676372D 2009-12 → 2012-07 Figure 677478B 677478B 2012-07 → —

Part groups

PNCDescription
69052 Cylinder & Key Set, Door Lock, LH
69055A Cylinder & Key Set, Luggage Compartment Lock
69062 Cylinder & Key Set, Glove Compartment Lock
69503 Cylinder Set, Lock
69503B Key, Cut
69503D Key, Cut(CARD KEY)
89072B Housing Set, Door Control Transmitter (FOR SMART KEY)
89745B Battery, Transmitter(CARD KEY)
89745C Battery, Transmitter
8975B Cover, Transmitter Battery Housing
89904B Transmitter Sub-assy, Electrical Key
89904C Transmitter Sub-assy, Electrical Key(CARD KEY)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
